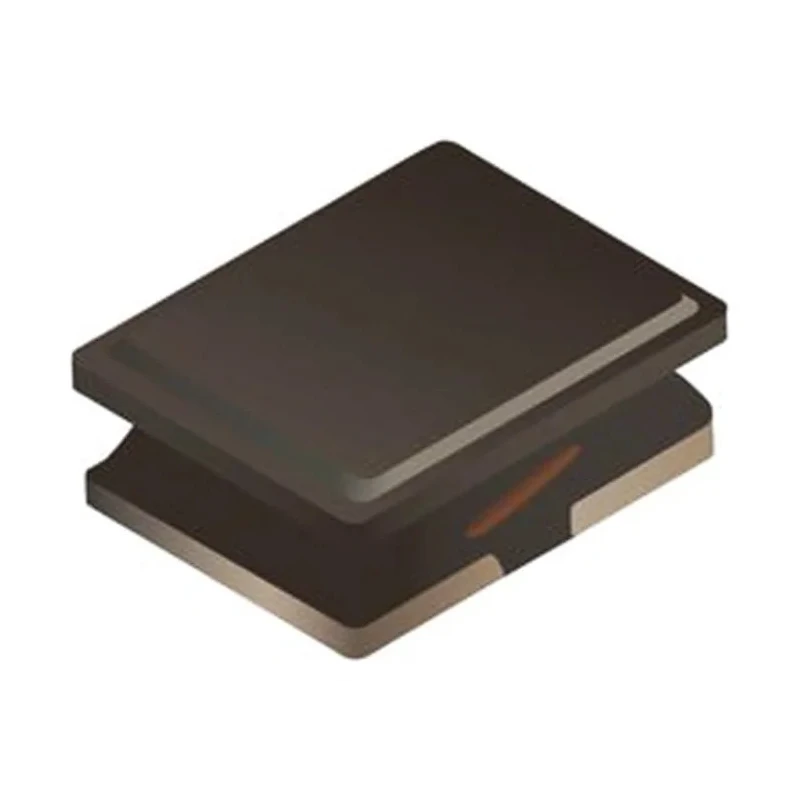

Bourns 2512 Shielded Wirewound Surface Mount Inductor 1 μH ±20% 3.5 A DC Current SRN2512

Bourns SRN2512 shielded wirewound surface mount inductor with a ferrite core and 1 μH inductance ±20% tolerance is designed for efficient power storage and filtering in electronic circuits. Featuring a compact 2512 package case with a low profile height of 1.2 mm and a depth of 2 mm, this inductor is suitable for modern electronics requiring space-saving components.

This wirewound inductor supports a maximum DC current rating of 3.5 A and exhibits a maximum DC resistance of 57 mΩ, ensuring minimal power loss during operation. Its semi-shielded ferrite core construction reduces electromagnetic interference, enhancing the reliability of sensitive electronic systems.

With a maximum operating temperature of 125°C and a wide operating temperature range down to -55°C, the SRN2512 performs reliably in robust industrial, commercial, and consumer electronic applications. The inductor's high self-resonant frequency of 120 MHz and a quality factor of 10 enable efficient filtering and energy storage in high-frequency circuits.

This component is RoHS compliant and is terminated with solder lands, making it compatible with automated surface mount technology (SMT) assembly lines. Its packaging on reels facilitates efficient pick-and-place operation for volume manufacturing.

Commonly used in DC/DC power converters, notebook computers, digital video cameras, hard disk drives, cellphones, televisions, and LCD displays, the SRN2512 series inductors are ideal for demanding electronic designs where size, performance, and reliability are critical.

This surface mount inductor features a semi-shielded ferrite core construction for enhanced magnetic performance. The compact 2512 package size provides a low profile height of 1.2 mm and a depth of 2 mm for space-constrained designs.

The inductor has a maximum DC resistance of 57 mΩ and operates reliably from -55°C to 125°C. It supports a high self-resonant frequency of up to 120 MHz and a minimum quality factor of 10 for efficient power management. The termination style is solder, compatible with standard PCB manufacturing processes.

Ideal for applications including DC/DC converters, notebook computers, digital video cameras, hard disk drives, cellphones, televisions, and LCD displays. Browse EnvMart's wide range of Surface Mount Inductors and electronic components for industrial, laboratory, and commercial electronics projects.
