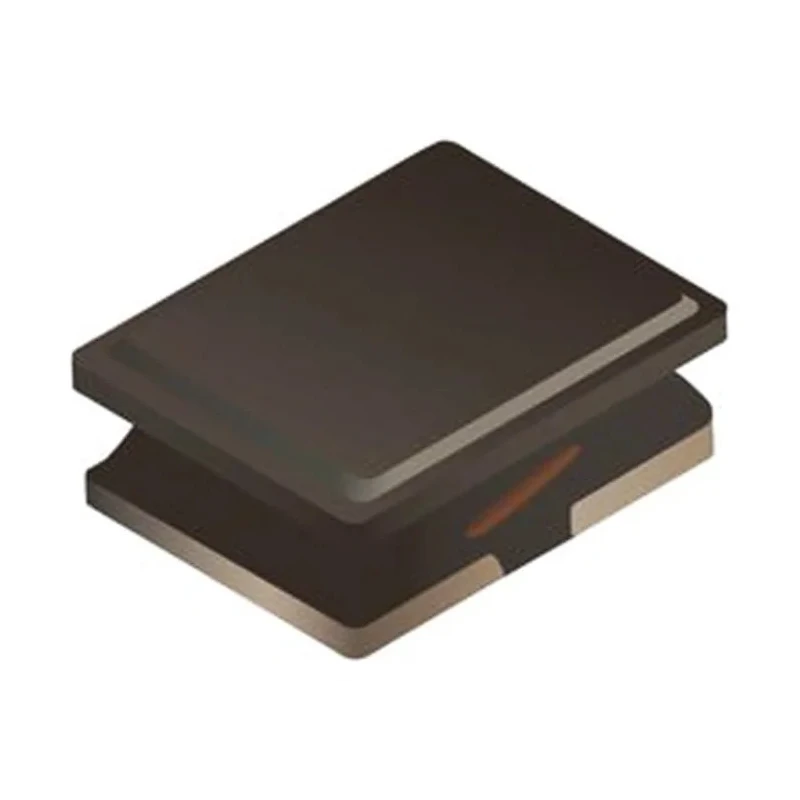

Bourns Shielded Wirewound Surface Mount Inductor 1 μH ±20% 3.5 A Idc Ferrite Core SRN2512
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 1.2mm |
| Length | 2.5mm |
| Model | SRN2512 |
| Depth | 2mm |
| Packaging | Reel |
| Series | SRN2512 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance Range | 0.24 to 2.2 μH |
| Inductance | 1μH |
| Low Profile | 1.2 mm |
| Standards/Approvals | RoHS |
| Package/Case | 2512 |
| Maximum DC Current | 3.5A |
| Pin Count | 2 |
| Maximum DC Resistance | 57mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 120MHz |
| Minimum Quality Factor | 10 |
| Inductor Construction | Wirewound |
Key Features
- The inductor features a ferrite core construction for enhanced performance.
- It has a compact 2512 package size with low profile height of 1.2 mm suitable for tight PCB layouts.
- This model supports a temperature range from -55°C to 125°C for robust industrial applications.
- The device is RoHS compliant and comes with solder termination style for easy PCB mounting.
- It includes shielding to reduce electromagnetic interference and a maximum DC resistance of 57 mΩ.
- Designed with a wirewound construction, this inductor has a quality factor of at least 10 and maximum self-resonant frequency of 120 MHz.
- Available on reels for manufacturing efficiency and intended for use in DC/DC converters and consumer electronics.
Product Description
Bourns SRN2512 shielded wirewound surface mount inductor provides 1 microhenry (μH) inductance with a tolerance of ±20%, designed for high efficiency power delivery with a maximum DC current rating of 3.5 amps (A). This inductor incorporates a ferrite core and semi-shielded construction to minimize electromagnetic interference while maintaining compact dimensions.
With a low profile height of 1.2 mm and package case size of 2512, this component is suitable for dense surface mount assembly in electronics such as DC/DC converters, notebook computers, digital video cameras, hard disk drives, cell phones, televisions, and LCD displays. The device operates reliably across a temperature range from -55°C to 125°C and withstands maximum DC resistance of 57 milliohms (mΩ).
This wirewound inductor is RoHS compliant with solder termination type, featuring a pin count of two and is molded for durability. Its inductance range spans from 0.24 to 2.2 microhenry catering to various power needs. The high-quality factor (Q) of 10 and maximum self-resonant frequency of 120 megahertz (MHz) allow for effective filtering and signal integrity in complex circuits.
The inductor features a ferrite core construction for enhanced performance. It has a compact 2512 package size with low profile height of 1.2 mm suitable for tight PCB layouts. This model supports a temperature range from -55°C to 125°C for robust industrial applications.
The device is RoHS compliant and comes with solder termination style for easy PCB mounting. It includes shielding to reduce electromagnetic interference and a maximum DC resistance of 57 mΩ. Designed with a wirewound construction, this inductor has a quality factor of at least 10 and maximum self-resonant frequency of 120 MHz.
Available on reels for manufacturing efficiency and intended for use in DC/DC converters and consumer electronics. Explore the extensive range of Surface Mount Inductors and passive components on EnvMart for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides an inductance of 1 microhenry (μH) with a tolerance of ±20%.
The maximum DC current rating for this inductor is 3.5 amps (A).
It operates reliably across a temperature range from -55°C to 125°C.
The maximum DC resistance is 57 milliohms (mΩ).
The maximum self-resonant frequency is 120 megahertz (MHz).
This inductor features a ferrite core construction, which enhances its performance.
It has a compact package size of 2512 with a low profile height of 1.2 mm.
The termination style is solder, which facilitates easy PCB mounting.
It is available on reels for manufacturing efficiency.
It has a minimum quality factor of at least 10.
Yes, this model is RoHS compliant, meeting environmental standards.
