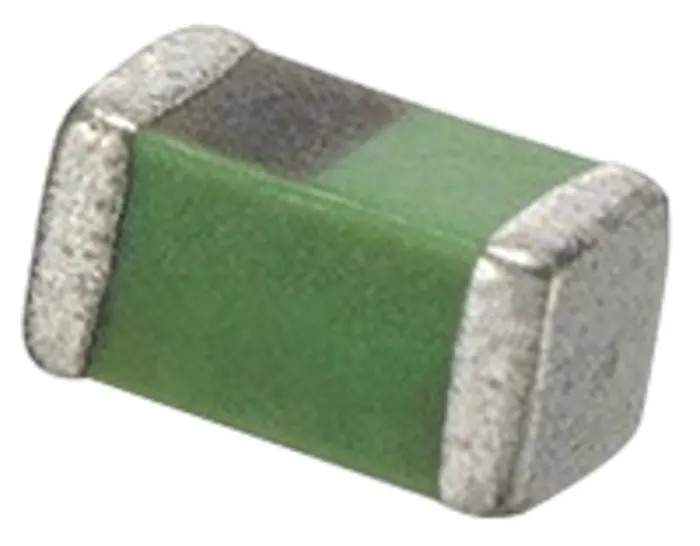

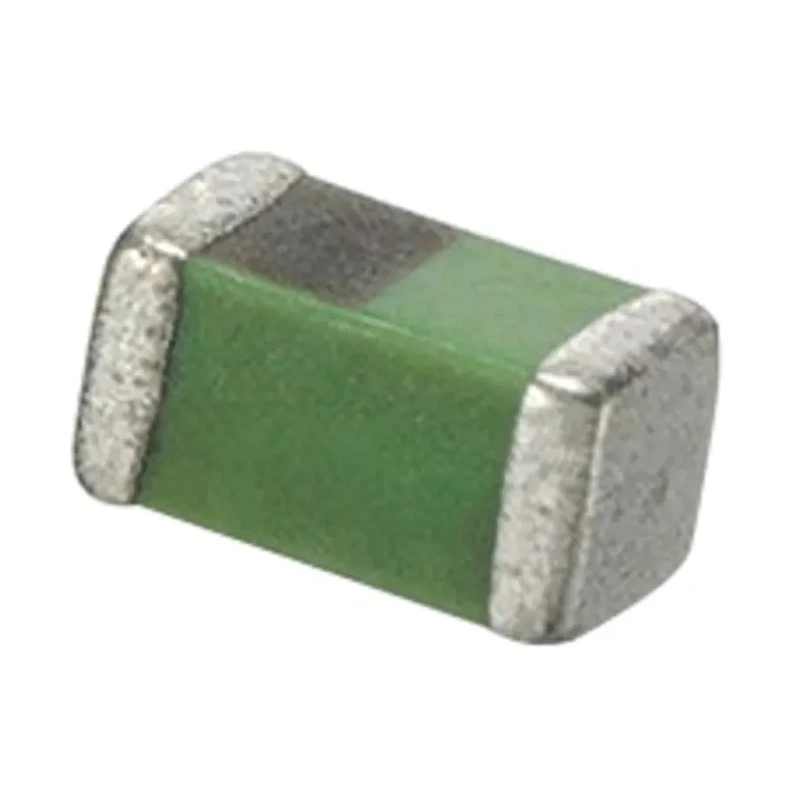

Murata Wirewound Surface Mount Inductor 7.5 nH ±5 % 300 mA Idc Q:8 1005 LQG15HS7N5J02D

Murata LQG15HS7N5J02D wirewound surface mount inductor offers an inductance of 7.5 nH with ±5 % tolerance, designed for high-frequency applications with a maximum self-resonant frequency of 4.2 GHz. Its low DC resistance of 240 mΩ and a maximum direct current of 300 mA enable efficient operation in demanding electronic circuits.

Packaged in a compact 1005 (0402) case, the inductor features dimensions of 1 mm length, 0.5 mm height, and 0.5 mm depth. The component has a molded wirewound construction and a standard solder termination style with two pins for surface mount technology (SMT) assembly. It operates within a wide temperature range from -55°C to 125°C, suitable for various industrial and commercial electronic environments.

This inductor exhibits a minimum quality factor (Q) of 8, balancing performance and reliability. Its unshielded design suits applications in WLAN networking equipment, RF matching circuits, and mobile communications where signal integrity is critical. The product is supplied in paper tape packaging, ready for automated insertion in SMT production lines.

Murata's LQG15HS series inductors are recognized for their reliability and compact form factor. The wirewound construction provides a stable inductance value and allows use in circuits requiring consistent performance under varying conditions. These components support industrial, communications, and electronics manufacturing applications, particularly at high frequency ranges.

Choose this reliable 7.5 nH surface mount inductor for your next electronic design requiring precise tolerance, low resistance, and robust performance in a miniature footprint. This inductor features a 1005 package size with a length of 1 mm and a height and depth of 0.5 mm each.

It provides a low DC resistance of 240 mΩ, ensuring efficient performance with minimal power loss. The component is suitable for high frequency applications with a maximum self-resonant frequency of 4.2 GHz. Constructed as a wirewound molded inductor, it has 2 pins and a solder termination style for reliable mounting.

It operates reliably in temperature ranges from -55°C to 125°C and is free of shielding. The product is packaged in paper tape format for surface mount assembly. Quality factor (Q) is 8 minimum, providing stability and performance in RF circuits.

The inductor series is LQG, designed for general use in WLAN networks, RF circuit matching, and mobile communication equipment resonance. Explore a wide range of Surface Mount Inductors and other passive components within the Electronics & Electricals category on EnvMart for industrial and commercial applications.
