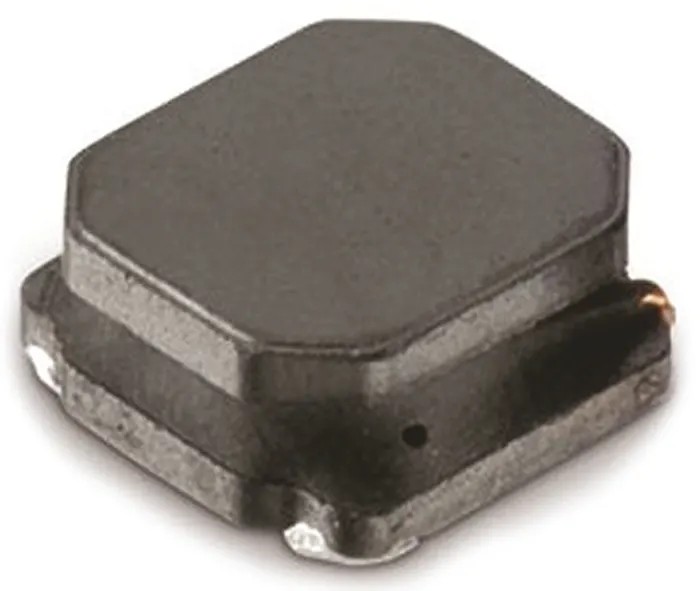

Wurth Elektronik WE-LQS 3015 Shielded Wirewound Surface Mount Inductor 4.7μH Semi Shielded ±20% 1.3A Idc 74404032047
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.5mm |
| Length | 3mm |
| Depth | 3mm |
| Packaging | Tape & Reel |
| Series | WE-LQS |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Inductance | 4.7μH |
| Package/Case | 3015 |
| Maximum DC Current | 1.3A |
| Maximum DC Resistance | 96mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 35MHz |
| Inductor Construction | Semi Shielded |
| Automotive Standard | AEC-Q200 Grade 1 |
Key Features
- This surface mount inductor operates at a maximum DC current of 1.3A.
- It features a compact 3015 package case with dimensions 3mm length, 1.5mm height, and 3mm depth.
- Inductor is compliant with AEC-Q200 Grade 1 automotive standard.
- The component supports a maximum operating temperature of 125°C and minimum of -40°C.
- RoHS, Halogen-Free, and REACH compliant ensuring environmental safety.
- Shielding reduces magnetic interference, suitable for noise-sensitive applications.
- Maximum DC resistance is 96mΩ for efficient power management.
- Maximum self-resonant frequency is 35MHz suitable for switching controllers.
Product Description
Wurth Elektronik 74404032047 is a shielded wirewound surface mount inductor from the WE-LQS series rated at 4.7μH inductance with ±20% tolerance and semi-shielded construction. Designed for high efficiency power applications, it can handle a maximum DC current of 1.3A, making it ideal for use in switching controllers and compact portable devices such as PDAs, smartphones, digital cameras, and televisions.
This inductor integrates well in industrial, electronic, and automotive applications due to its compact 3015 size (3mm length x 1.5mm height x 3mm depth) and robust semi-shielded construction which minimizes electromagnetic interference. It operates reliably within a temperature range of -40°C to 125°C, compliant with the automotive AEC-Q200 Grade 1 standard.
Additional benefits include RoHS (2011/65/EU & 2015/863), Halogen-Free (JEDEC JS709B, IEC 61249-2-21), and REACH (EC 1907/2006) compliance ensuring environmentally friendly manufacturing practices. With a maximum DC resistance of 96mΩ and a maximum self-resonant frequency of 35MHz, this component is well suited for DC/DC converter circuits and shock-resisting environments at the industrial level.
Packaged on tape and reel, the inductor supports automated assembly lines and efficient production workflows. Manufactured in China, this product is part of the trusted Wurth Elektronik WE-LQS series known for durability and performance.
This surface mount inductor operates at a maximum DC current of 1.3A. It features a compact 3015 package case with dimensions 3mm length, 1.5mm height, and 3mm depth. Inductor is compliant with AEC-Q200 Grade 1 automotive standard.
The component supports a maximum operating temperature of 125°C and minimum of -40°C. RoHS, Halogen-Free, and REACH compliant ensuring environmental safety. Shielding reduces magnetic interference, suitable for noise-sensitive applications.
Maximum DC resistance is 96mΩ for efficient power management. Maximum self-resonant frequency is 35MHz suitable for switching controllers. Packaged on tape and reel for automated assembly processes. Manufactured in China under Wurth Elektronik’s WE-LQS series.
Explore the full range of Wurth Elektronik inductors and electronic components at EnvMart for your industrial and electronic manufacturing needs.
Explore more products in our Surface Mount Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 4.7μH with a tolerance of ±20%.
It can handle a maximum DC current of 1.3A.
The dimensions of the package case are 3mm in length, 1.5mm in height, and 3mm in depth.
The maximum operating temperature is 125°C, while the minimum is -40°C.
The maximum self-resonant frequency is 35MHz, making it suitable for switching controllers.
This inductor features a semi-shielded construction, which helps reduce electromagnetic interference.
Yes, it is compliant with the AEC-Q200 Grade 1 automotive standard.
The maximum DC resistance is 96mΩ, which aids in efficient power management.
It is packaged on tape and reel, which supports automated assembly processes.
This model is RoHS, Halogen-Free, and REACH compliant, ensuring environmentally friendly manufacturing practices.
It is suitable for use in high efficiency power applications, including switching controllers and compact portable devices like smartphones and digital cameras.
The termination style of this inductor is surface mount, facilitating easy integration into various electronic circuits.
