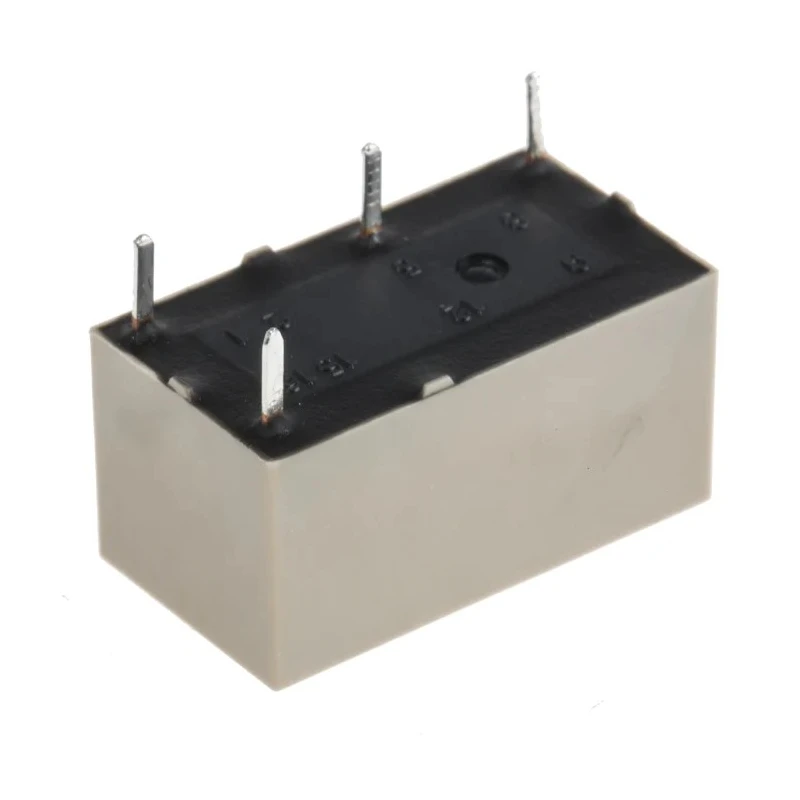

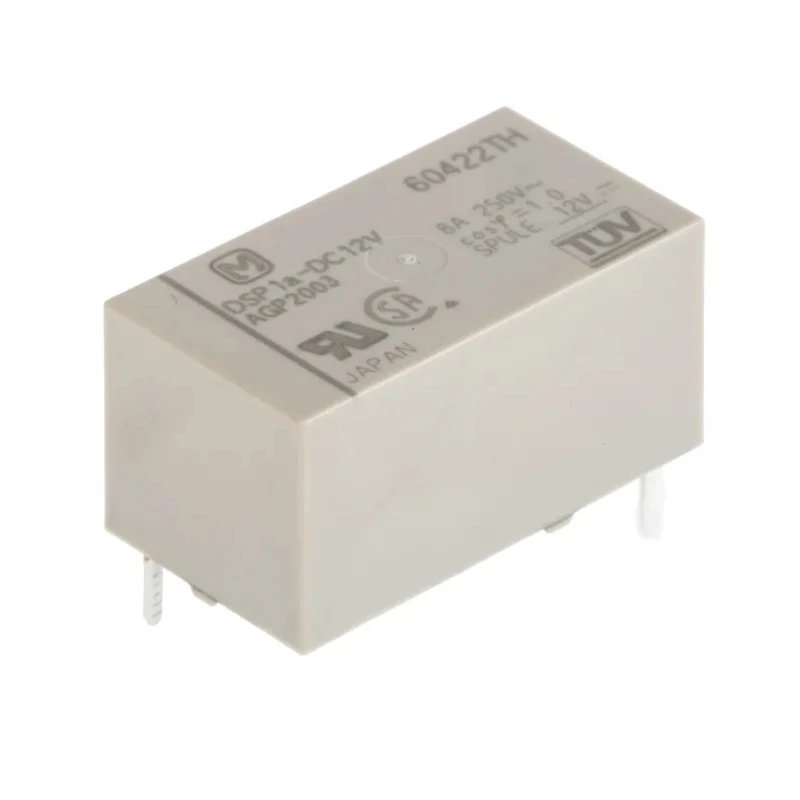

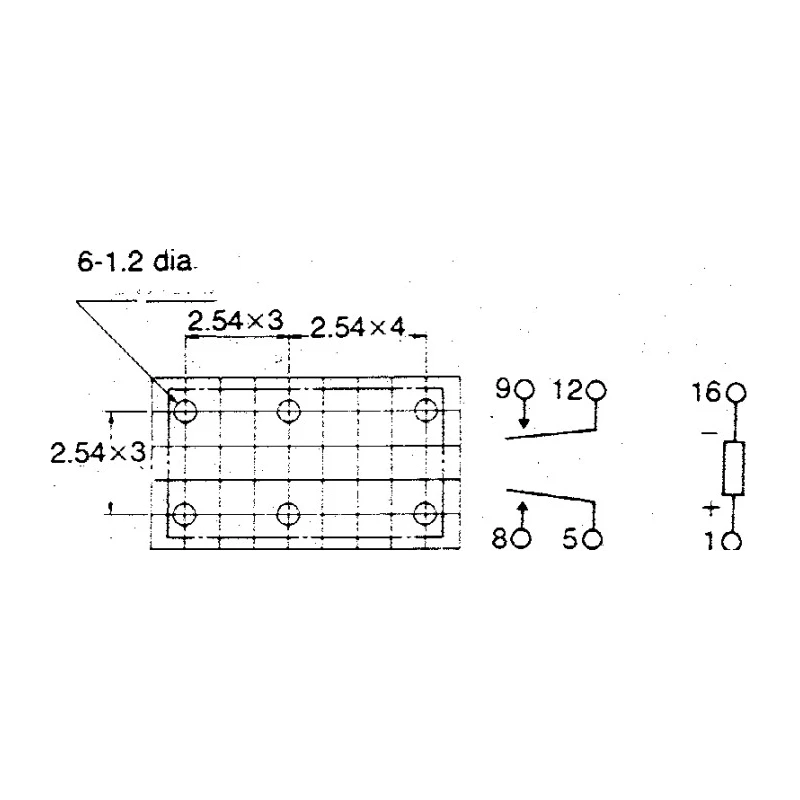

Panasonic PCB Power Relay, 12V dc Coil Voltage, 8A Switching Current, SPST Configuration DSP1A-DC12V
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 10mm |
| Length | 20.2mm |
| Model | DSP1A-DC12V |
| Width | 11mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | DSP1A |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | PCB Pin |
| Contact Resistance | 30mΩ |
| Standards/Approvals | CSA, UL, VDE |
| Coil Resistance | 480Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 300mW |
| Switching Power | 150W |
Key Features
- High sensitivity and compact size suitable for PCB mounting.
- Supports up to 150W switching power with maximum AC/DC voltage of 125V.
- Sealed construction allowing automatic washing and enhanced durability.
- Contact material made of silver alloy ensuring low contact resistance of 30mΩ.
- Operates efficiently within temperature range of -40°C to 60°C.
- Minimum coil resistance of 480Ω with coil power consumption of 300mW.
- Complies with safety standards including CSA, UL, and VDE certifications.
- Ideal for office, industrial electronic devices, temperature controllers, and PLC applications.
Product Description
Panasonic DSP1A-DC12V PCB Power Relay is a miniature, high-performance relay designed for precise switching on printed circuit boards. With a coil voltage of 12V dc and switching current capacity of 8A, it offers robust electrical performance for demanding industrial and automation applications.
This single-pole single-throw (SPST) relay features a sealed construction that enables automatic washing, thereby ensuring reliability and longevity in various operational environments. Its silver alloy contact material provides excellent conductivity with an impressively low contact resistance of 30mΩ. The relay is rated for a switching power of up to 150W and can handle AC and DC voltages up to 125V.
The relay operates effectively within a temperature range of -40°C to 60°C, supporting stable performance in harsh conditions. With coil resistance at 480Ω and coil power consumption of only 300mW, it is energy efficient and suitable for prolonged use.
Measuring 20.2mm in length, 11mm in width, and 10mm in height, the compact DSP1A-DC12V integrates seamlessly into various electronic assemblies, including office equipment, industrial devices, measuring instruments, and programmable logic controllers (PLCs).
High switching capacity monostable relay in a DIL format. High breakdown voltage and sensitivity for reliable operation. Sealed relay body allows for automatic washing processes. Silver alloy contacts provide durability and low electrical resistance.
Complies with international standards CSA, UL, and VDE. Compact dimensions enable space-saving designs in PCB layouts. Operating temperature range from -40°C to 60°C is suitable for diverse conditions. Low coil power consumption supports energy-efficient systems.
This Panasonic relay is ideal for controlling and switching electrical signals in industrial, laboratory, commercial automation, and HVAC control systems. Explore the benefit of the Panasonic DSP1A-DC12V PCB Power Relay to enhance your electronic design projects in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 12V DC.
The maximum switching current for the DSP1A-DC12V is 8A.
This model features a single-pole single-throw (SPST) contact configuration.
The relay can handle a maximum switching power of 150W.
The operating temperature range for this relay is from -40°C to 60°C.
The contact material of this relay is silver alloy, which ensures low contact resistance.
The relay measures 20.2mm in length, 11mm in width, and 10mm in height.
The coil resistance of the DSP1A-DC12V is 480Ω.
This relay complies with CSA, UL, and VDE certifications.
The relay is designed for PCB mounting.
The coil power consumption of the DSP1A-DC12V is 300mW.
The relay can switch both AC and DC voltages up to 125V.
