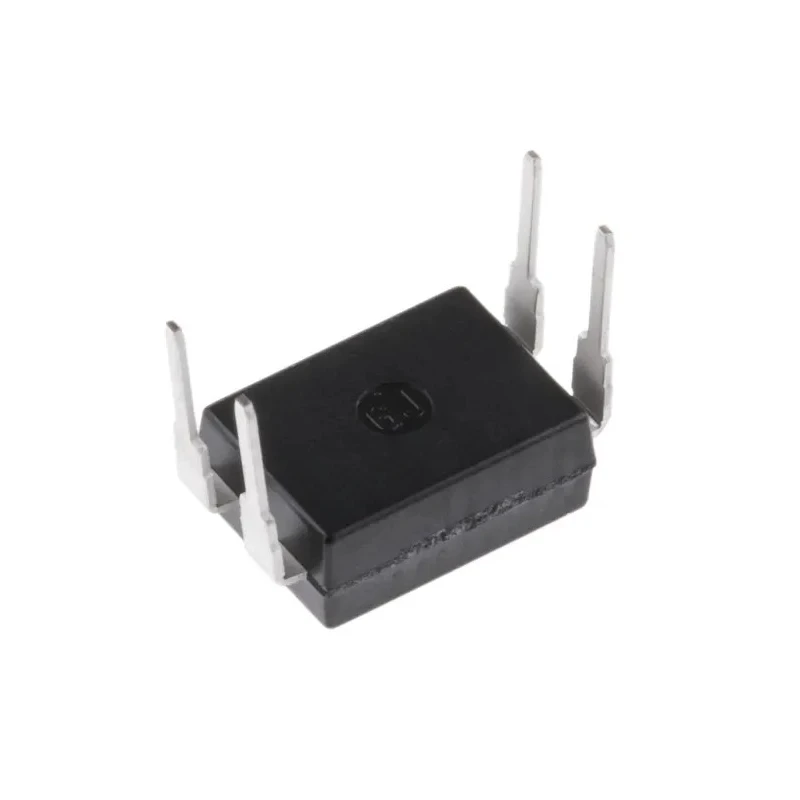

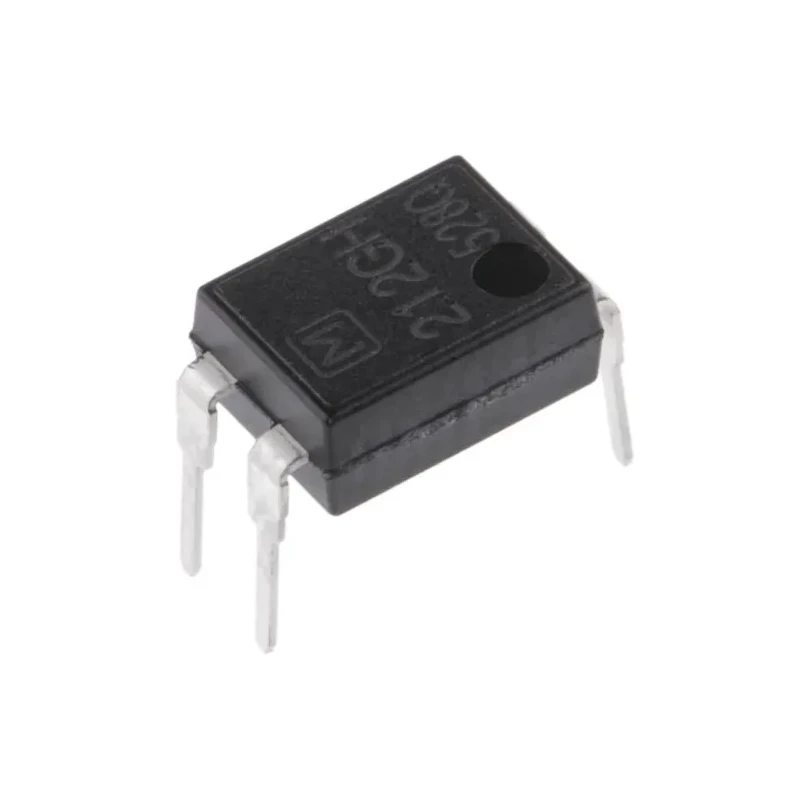

Panasonic GU Series Solid State Relay, 1.1 A Load Current, Surface Through Hole Mount, 60 V Load Voltage, 5V DC AQY212GH
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Height | 3.2mm |
| Length | 6.4mm |
| Model | AQY212GH |
| Width | 3.2mm |
| Mount Type | Surface, Through Hole |
| Output type | PhotoMOS |
| Series | GU |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Package Type | DIP |
| Capacitance | 1.5pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Maximum Load Current | 1.1A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 60V |
| Minimum Control Voltage | 1.5V |
| Maximum Control Voltage | 5V dc |
| Off State Leakage Current | 1μA |
| On State Resistance | 0.7Ω |
Key Features
- Supports maximum load current of 1.1 amperes for reliable switching.
- Operates with a control voltage range from 1.5 V to 5 V DC.
- Surface and through hole mount type ensures versatile installation flexibility.
- Compact DIP package with dimensions 6.4 mm length, 3.2 mm width, and 3.2 mm height.
- Low off-state leakage current of 1 microampere reduces power loss.
- On-state resistance of 0.7 ohms ensures efficient conduction.
- Operates reliably within -40°C to 85°C temperature range.
- PhotoMOS output type provides high-speed and low-noise switching.
Product Description
Panasonic AQY212GH GU Series Solid State Relay is designed for controlling low-level analog signals with excellent performance and reliability. It supports a maximum load current of 1.1 A and a maximum load voltage of 60 V, making it suitable for various industrial and automation control applications.
This relay features a surface and through hole mount DIP package allowing easy integration into PCBs and control circuits. It offers a low-level off-state leakage current of 1 μA and a low on-state resistance of 0.7 Ω, which reduces power consumption and heat generation.
Operating temperature ranges from -40°C to 85°C, making it suitable for harsh environments and extended use. Its PhotoMOS output type ensures fast switching with minimal electrical noise, ideal for precision electronic control systems.
The relay complies with RoHS standards, confirming it meets relevant environmental and safety requirements. The compact size dimensions are 6.4 mm length, 3.2 mm width, and 3.2 mm height, enabling space-saving designs.
Applications include industrial automation, electrical control systems, signal switching, and other scenarios demanding reliable solid state relay technology. Supports maximum load current of 1.1 A for efficient load control.
Control voltage range from 1.5 V to 5 V DC for flexible interfacing. Surface and through hole DIP mounting provides installation versatility. Low off-state leakage current minimizes power loss during standby. Low on-state resistance of 0.7 ohms improves efficiency.
Wide operating temperature ensures durability in various environments. PhotoMOS output type offers fast and silent switching. RoHS compliant for environmental safety. Compact dimensions suitable for high-density PCB layouts.
This Panasonic solid state relay is an ideal choice for industrial, automation, electrical, and manufacturing applications requiring reliable electronic switching components. Explore the complete category for advanced Solid State Relays suited to diverse technical and commercial requirements on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Panasonic GU Series solid state relay supports a maximum load current of 1.1 amperes.
This relay operates with a control voltage range from 1.5 V to 5 V DC.
The dimensions of this model are 6.4 mm in length, 3.2 mm in width, and 3.2 mm in height.
The maximum load voltage for the Panasonic GU Series solid state relay is 60 V.
It supports both surface and through hole mounting, providing installation versatility.
The off-state leakage current is 1 microampere, which helps reduce power loss during standby.
The on-state resistance is 0.7 ohms, ensuring efficient conduction.
It operates reliably within a temperature range of -40°C to 85°C.
This model features a PhotoMOS output type, which provides high-speed and low-noise switching.
Yes, this solid state relay complies with RoHS standards, confirming it meets relevant environmental and safety requirements.
This relay is suitable for various applications including industrial automation, electrical control systems, and signal switching.
The relay features a through hole terminal type for easy integration into PCBs.
