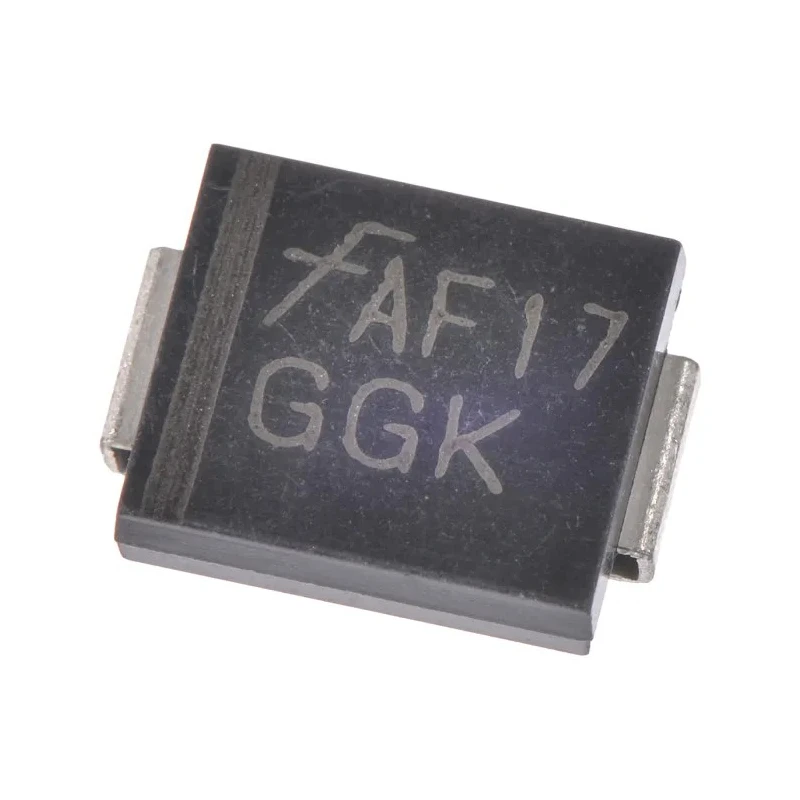

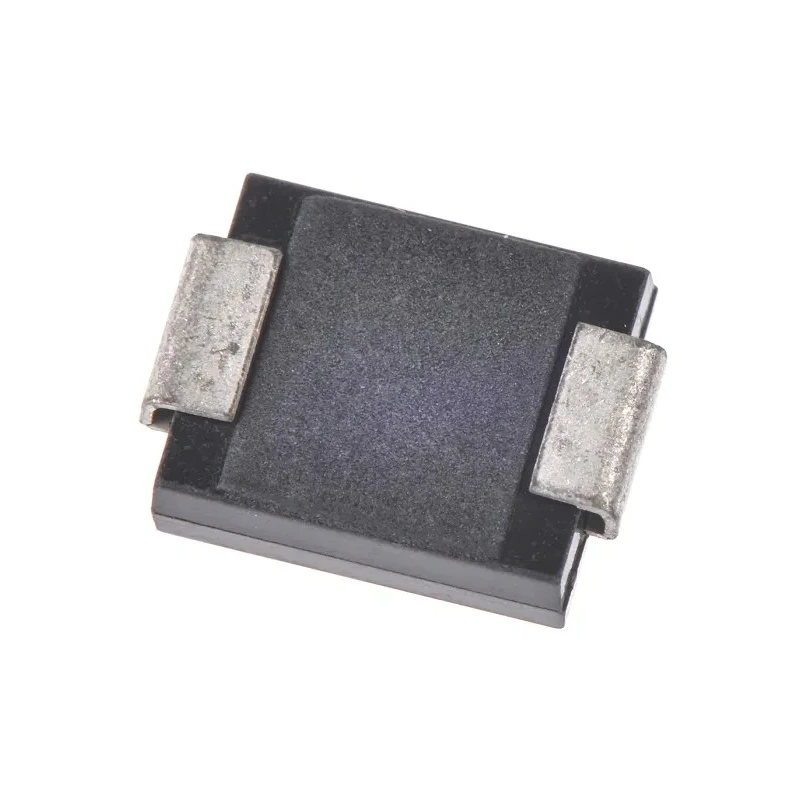

Taiwan Semiconductor 1-Element Uni-Directional TVS Diode 1.5 kW Surface Mount DO-214 SMCJ60A

Taiwan Semiconductor SMCJ60A is a 1-element uni-directional transient voltage suppressor (TVS) diode designed for surface mount applications requiring rapid response and reliable overvoltage protection. It features a DO-214 package suitable for compact PCB designs and offers a peak pulse power dissipation rating of 1.5 kW.

This TVS diode operates with a minimum breakdown voltage of 66.7 V and a maximum reverse stand-off voltage of 60 V, ensuring effective suppression of voltage transients to protect sensitive electronic components. The device supports high surge currents up to 15.5 A and features a clamping voltage of 96.8 V, which limits voltage spikes during transient events.

With a temperature operating range of -55°C to 150°C, the SMCJ60A diode is suitable for harsh industrial, automotive, and consumer electronics environments. Its glass-passivated junction construction provides excellent reliability and low incremental surge resistance, resulting in fast response times and prolonging circuit life.

The diode's compact footprint measures 7.15 mm length, 6.25 mm width, and 2.75 mm height, allowing for efficient PCB space utilization. The maximum reverse leakage current is a minimal 5 μA reducing standby power consumption.

This device complies with FBI standards and includes features such as UL94V-0 flammability classification, contributing to safer electronic designs. The SMCJ60A series is ideally applied in industrial equipment, power supplies, automotive electronics, telecommunications, and other high-reliability applications requiring transient voltage protection.

Uni-directional diode configuration ensures efficient voltage suppression. Surface mount DO-214 package enables compact PCB layout. Minimum breakdown voltage of 66.7 V for reliable protection. Maximum peak pulse current rated at 15.5 A for surge handling.

Operating temperature range from -55°C to 150°C ensures durability. Clamping voltage of 96.8 V prevents voltage spikes. Low maximum reverse leakage current of 5 μA reduces power loss. Robust construction with glass-passivated junction for long service life.

Compact dimensions: 7.15 mm length, 6.25 mm width, 2.75 mm height.

This Taiwan Semiconductor TVS diode is a dependable choice for industrial, automotive, laboratory, manufacturing, and commercial electronics requiring surge protection. Browse the TVS Diode category on EnvMart for more options and tech specs.
