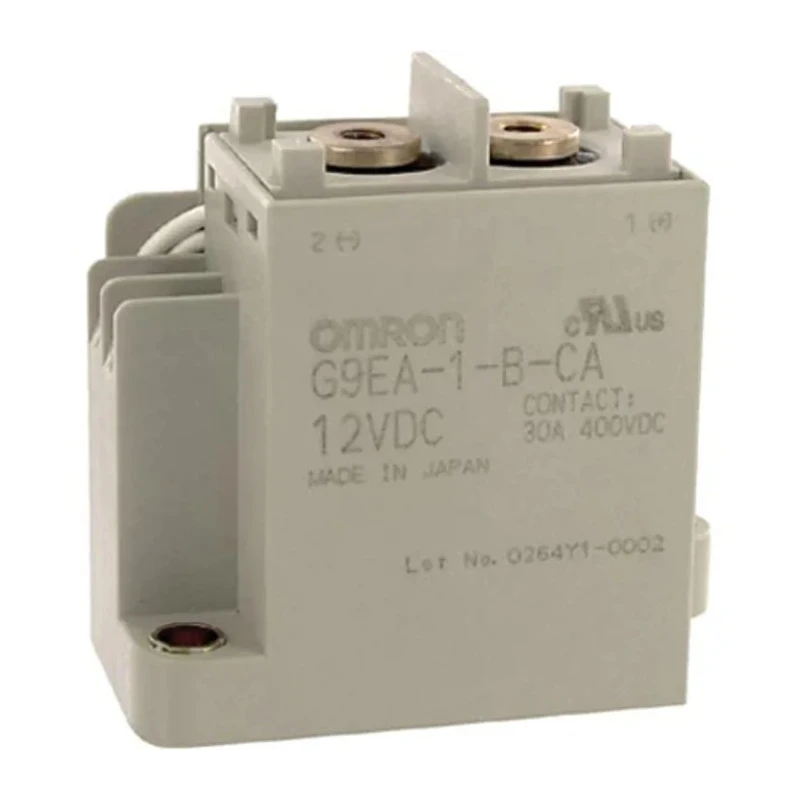

Omron Surface Power Relay 12V dc Coil 30A Switching Current SPST G9EA-1-B-CA-DC12
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 67.2mm |
| Length | 73mm |
| Model | G9EA-1-B-CA-DC12 |
| Width | 36mm |
| Mount Type | Surface |
| Series | G9EA |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 30A |
| Terminal type | Screw |
| Contact Resistance | 10mΩ |
| Standards/Approvals | CSA, UL |
| Coil Resistance | 28.8Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 400V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 5.5W |
| Switching Power | 5W |
Key Features
- Compact design measuring 73mm length, 36mm width, and 67.2mm height.
- Surface mount type with screw terminals ensuring secure electrical connections.
- Coil resistance of 28.8Ω and coil power consumption of 5.5W for efficient operation.
- Switching capabilities up to 400V AC and DC voltages for versatile applications.
- Operates reliably in temperatures ranging from -40°C to 70°C.
- Compliant with CSA and UL standards for quality and safety.
- Contact resistance rated at 10mΩ ensures low loss during switching.
- Robust design supporting 1000 operational cycles for long-term reliability.
Product Description
Omron G9EA-1-B-CA-DC12 Surface Power Relay is a high-performance power relay designed for demanding industrial and automation applications. It features a 12V DC coil voltage and a 30A switching current capability in a SPST (Single Pole Single Throw) configuration, making it suitable for switching heavy loads efficiently.
The relay's compact surface mount design measures 73mm in length, 36mm in width, and 67.2mm in height, allowing easy integration into electrical panels and systems. Screw terminals provide secure and stable electrical connections, reducing maintenance needs and ensuring reliable performance.
Engineered with a coil resistance of 28.8Ω and a coil power consumption of 5.5W, it offers efficient power usage and quick operation. The relay can switch both AC and DC voltages up to 400V, making it versatile for various circuit types in industrial machinery, HVAC systems, automotive, and communication equipment.
Designed to withstand temperature extremes from -40°C to 70°C, this relay is well suited for harsh environmental conditions. It adheres to CSA and UL safety standards, ensuring compliance with industry regulations and enhancing operational safety.
Additional features include a nominal contact resistance of 10mΩ, a switching power of 5W, and a robust isolation capability providing 2.5 kV AC between coil and contacts. This contributes to reliable and safe switching under high voltage stress.
The relay's operational life is rated for 1000 cycles, offering dependable service in automation and control applications over extended periods.
This Omron Power Relay is originated from Japan, ensuring high manufacturing quality and reliability. It is an ideal choice for electrical control panels, communication equipment, automotive control circuits, and industrial machinery automation, where dependable switching and durable construction are critical.
Explore the range of Omron relays and power control solutions available on EnvMart for your industrial and electrical automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 30A.
The relay measures 73mm in length, 36mm in width, and 67.2mm in height.
It operates with a coil voltage of 12V DC.
The relay can switch voltages up to 400V for both AC and DC applications.
This model features screw terminals for secure electrical connections.
The coil resistance is rated at 28.8Ω.
It operates reliably in temperatures ranging from -40°C to 70°C.
The nominal contact resistance is rated at 10mΩ.
This relay is rated for 1000 operational cycles.
It is compliant with CSA and UL standards for safety and quality.
The coil power consumption is 5.5W.
The switching power rating is 5W.
