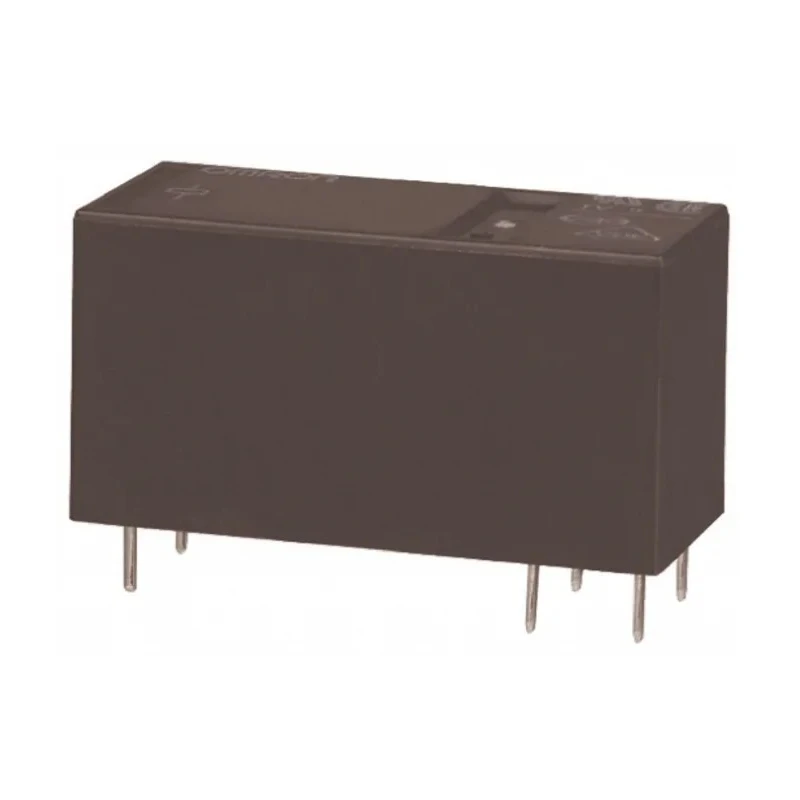

Omron Power Relay PCB Mount SPDT 24V DC Coil 16A Switching Current G5RL-K1-E DC24
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 15.7mm |
| Length | 29mm |
| Model | G5RL-K1-E DC24 |
| Width | 12.7mm |
| Mount Type | PCB |
| Series | G2RL |
| Contact Configuration | SPDT |
| Switching Current | 16A |
| Terminal type | PCB Pin |
| Low Profile | 15.7mm max height |
| Standards/Approvals | CSA, UL |
| Coil Voltage | 24V dc |
Key Features
- Features a Single Pole Double Throw (SPDT) contact configuration.
- Equipped with a 24V DC coil voltage for standard PCB operation.
- Supports a switching current capacity of up to 16 amperes.
- Compact low-profile design with a maximum height of 15.7mm for space-efficient mounting.
- Mount type is PCB, with PCB pin terminal type for secure connections.
- Conforms to CSA, UL, and VDE standards ensuring safety and quality compliance.
- Includes flux-proof and latching features with 8mm creepage/clearance between coil and contacts.
Product Description
Omron G5RL-K1-E DC24 power relay is a high-quality, low profile PCB mount relay featuring a Single Pole Double Throw (SPDT) contact configuration. It operates on a 24V DC coil voltage and is capable of handling a switching current of 16 amperes, making it suitable for various industrial, automation, and control applications. Its compact dimensions of 29mm length, 12.7mm width, and 15.7mm height allow integration into dense PCB layouts.
This power relay is designed with a flux-proof mechanism and latching feature, ensuring reliable operation under demanding electrical environments. The relay complies with international safety standards including UL, CSA, and VDE, providing assurance of quality and safety. The creepage and clearance of 8mm between coil and contacts contribute to its robustness and prevent electrical faults.
Its PCB pin terminal type facilitates secure and easy mounting on printed circuit boards, commonly used in automation systems, machinery control, HVAC equipment, and other electrical setups in commercial and industrial environments.
Omron G5RL-K1-E DC24 allows engineers and technicians to implement effective switching solutions with high operational reliability and compact design benefits. Its wide approval range and industry standards compliance make it a versatile choice for Power Relay requirements.
Features a Single Pole Double Throw (SPDT) contact configuration. Equipped with a 24V DC coil voltage for standard PCB operation. Supports a switching current capacity of up to 16 amperes. Compact low-profile design with a maximum height of 15.7mm for space-efficient mounting.
Mount type is PCB, with PCB pin terminal type for secure connections. Dimensions include length of 29mm, width 12.7mm, and height 15.7mm. Conforms to CSA, UL, and VDE standards ensuring safety and quality compliance. Includes flux-proof and latching features with 8mm creepage/clearance between coil and contacts.
Explore more quality relays and electrical components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching applications.
The G5RL-K1-E DC24 operates on a 24V DC coil voltage, suitable for standard PCB applications.
It supports a switching current capacity of up to 16 amperes, making it suitable for various industrial applications.
The dimensions of this relay are 29mm in length, 12.7mm in width, and 15.7mm in height, allowing for compact installation.
This unit is designed for PCB mounting and features PCB pin terminals for secure connections.
It conforms to CSA, UL, and VDE standards, ensuring compliance with international safety regulations.
The relay includes an 8mm creepage and clearance distance between the coil and contacts, enhancing its robustness.
It includes a flux-proof mechanism and latching feature, which contribute to reliable operation in demanding environments.
The G5RL-K1-E DC24 power relay is manufactured in China.
This relay is part of the G2RL series, which is known for its compact design and reliable performance.
It uses PCB pin terminals, which facilitate secure and easy mounting on printed circuit boards.
This relay is suitable for various applications in industrial automation, machinery control, and HVAC equipment.
