TE Connectivity PCB Power Relay 24V DC Coil 5A Switching Current SPST 7-1461491-6

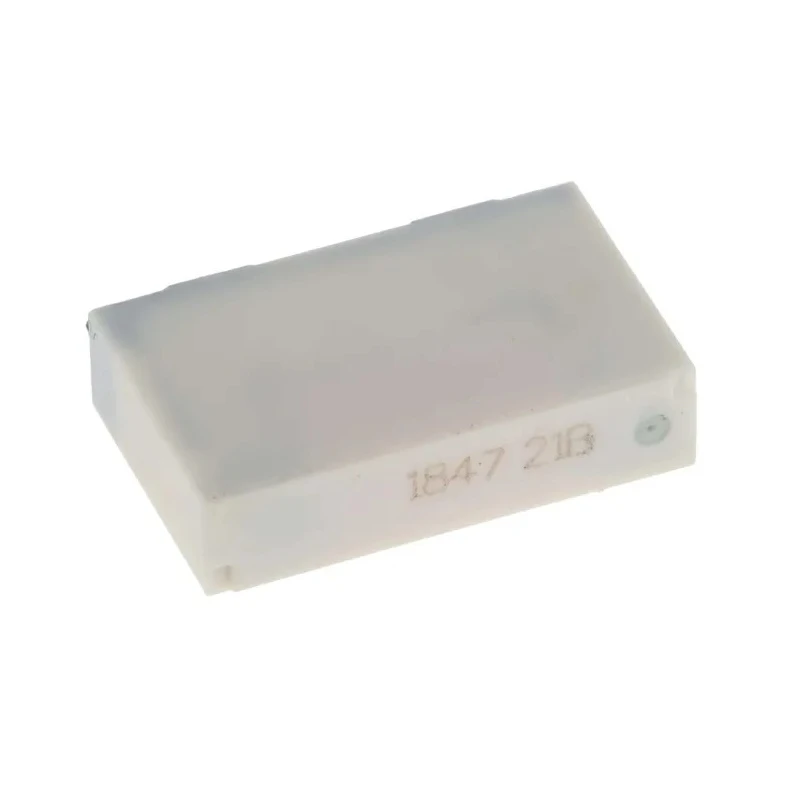

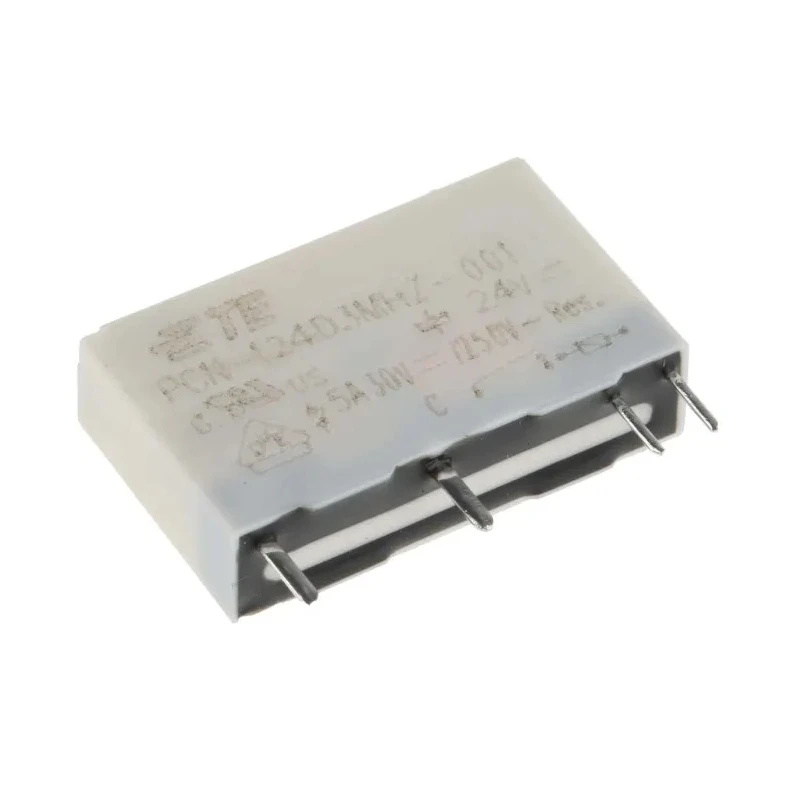

TE Connectivity 7-1461491-6 PCB Power Relay is a precision-engineered component for efficient electrical switching applications. Featuring a 24V DC coil and a 5A switching current capacity, it is designed to meet the demands of modern industrial and commercial electronic devices.

Its SPST contact configuration provides reliable single pole control, ideal for switching circuits on printed circuit boards (PCB). The relay mounts directly onto PCBs using PCB pin terminals, facilitating compact assembly and integration.

Constructed with silver alloy contacts, it ensures low contact resistance of 30 milliohms, thereby minimizing power loss and enhancing operational longevity. The coil exhibits a resistance of 4.8 kilo-ohms, consuming 120 milliwatts of power, contributing to energy efficiency.

This relay is able to operate in a wide temperature range from minus 30 to plus 85 degrees Celsius, making it suitable for harsh industrial or outdoor environments. With switching capabilities of up to 125 volts AC or DC and a power rating of 1.3 kilo-volt-amperes, it efficiently manages moderate load applications.

The compact size of 20 mm in length, 12.5 mm in height, and 5 mm in width makes it an excellent choice for applications where board space is limited. The PCN series design features a non-latching mechanism with reinforced coil-to-contact insulation rated at 4000 volts, ensuring both safety and durability during operation.

Certified according to cULus and VDE standards, the relay complies with international safety norms, ensuring reliable performance in a broad range of industrial, automation, HVAC, and manufacturing settings. Made in China, this product is a trustworthy solution for power relay needs.

This relay features a SPST (Single Pole Single Throw) contact configuration for simple on/off control. Mount type is PCB for easy integration into printed circuit boards. Built with silver alloy contact material ensuring low contact resistance of 30mΩ.

Coil resistance measures 4.8kΩ with low coil power of 120mW for efficient operation. Designed to operate within a temperature range from -30°C to 85°C, suitable for varied environments. The relay supports switching voltages of 125V DC and 125V AC with a switching power of 1.3kVA.

Compact dimensions of 20mm length, 12.5mm height, and 5mm width support small form factor applications. Includes safety certifications such as cULus and VDE for compliance assurance. Non-latching PCN series design with reinforced insulation for coil to contact isolation rated at 4kV.
