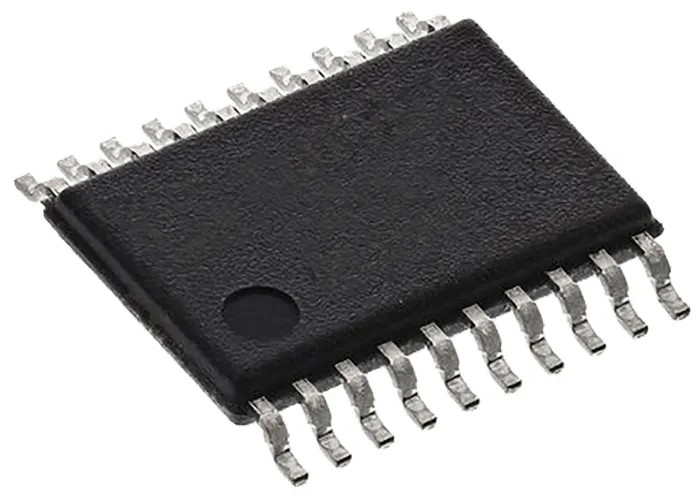

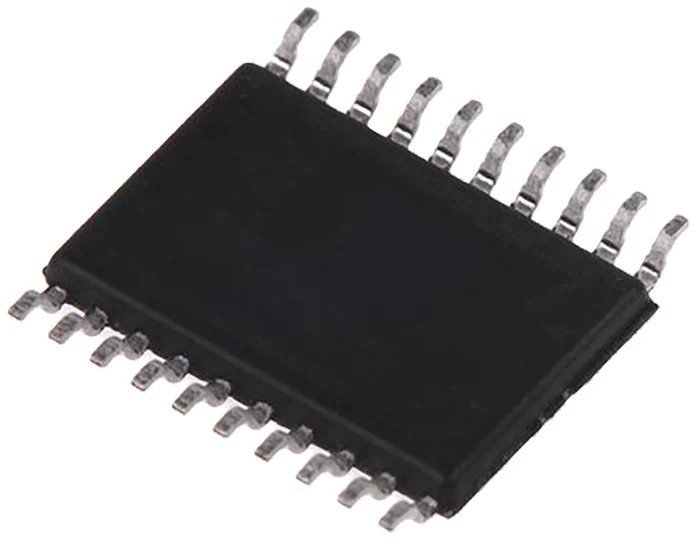

onsemi 8-Channel Buffer & Line Driver 3 State Non-Inverting 20-Pin TSSOP MC74HC244ADTG

Free Delivery in India | Lowest Global Shipping Charges

onsemi 8-Channel Buffer & Line Driver 3 State Non-Inverting 20-Pin TSSOP MC74HC244ADTG

Name: onsemi 8-Channel Buffer & Line Driver 3 State Non-Inverting 20-Pin TSSOP MC74HC244ADTG
Brand: onsemi
SKU: 374318
Price: 0.59 USD
Availability: InStock



Category Line Interface ICs Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.2mm
Length	6.6mm
Model	MC74HC244ADTG
Width	4.5mm
Mount Type	Surface
Compatibility	Input CMOS, Output CMOS
Output type	3 State
Input Type	CMOS
Maximum Operating Temperature	125°C
Package Type	TSSOP
Minimum Operating Temperature	-55°C
Polarity	Non-Inverting
IC Type	Buffer & Line Driver IC
Number Of Channels	8
Operating Voltage	2 to 6 V
Pin Count	20
Maximum Supply Voltage	6V
Logic Family	74HC
Logic Function	Line Receiver, Line Driver, Buffer
Minimum Supply Voltage	2V
Maximum High Level Output Current	7.8mA
Maximum Propagation Delay Time @ CL	165ns
Supply Current	160μA

Key Features

The device operates within a supply voltage range from 2 to 6 volts.
It supports eight independent channels for line driving and buffering functions.
The IC features a maximum propagation delay time of 165 nanoseconds at CL load.
Operating temperature ranges from -55°C to 125°C ensuring reliability in diverse environments.
Package dimensions are compact with a length of 6.6 mm, width of 4.5 mm, and height of 1.2 mm.
The maximum high and low level output currents are rated at 7.8 mA each.
Logic family is 74HC CMOS compatible with input and output CMOS logic levels.
The device is designed for surface mount applications with TSSOP package type.

Product Description

onsemi MC74HC244ADTG is an advanced 8-channel buffer and line driver IC designed within the 74HC high-speed CMOS logic family. It provides 3-state non-inverting outputs and is extensively used for buffering and line driving in electronic circuits requiring reliable high-speed performance.

This IC supports a supply voltage range from 2 to 6 volts, making it versatile for various low-voltage digital applications. The maximum high and low level output currents of 7.8 mA facilitate interfacing with different load conditions while maintaining signal integrity.

The compact 20-pin TSSOP package (6.6 mm length, 4.5 mm width, 1.2 mm height) ensures efficient surface mount assembly with minimal board space usage. The device operates efficiently with a low supply current of 160 µA, enabling power-conscious circuit designs.

Operating temperatures from -55°C to 125°C make this IC suitable for industrial and automotive environments, although it does not conform to automotive standards. The propagation delay time of 165 ns at a given load capacitance ensures timely signal transmission in synchronous systems.

The logic family compatibility (74HC) and CMOS input/output types provide seamless integration with mainstream digital logic circuits found in industrial, laboratory instrumentation, and automotive interface applications.

Eight 3-state output channels for buffering and line driving. Non-inverting output polarity for direct signal buffering. Low power consumption with 160 µA typical supply current. Wide operating voltage of 2 to 6 V for flexible circuit design.

Compact TSSOP surface mount package for space saving designs. Robust operating temperature range of -55°C to 125°C.

Use the onsemi MC74HC244ADTG in applications such as industrial controls, communication equipment, data acquisition systems, and other electronic systems requiring robust line driving and signal buffering. The package and performance profile support high-density PCB assemblies in advanced electronic manufacturing.

Explore more Line Interface ICs and semiconductor components on EnvMart to find tailored parts for your industrial and laboratory projects.
