onsemi Infrared Photodiode 2-Pin Surface Mount PLCC 2L 65° Field of View QSB34CGR

Free Delivery in India | Lowest Global Shipping Charges

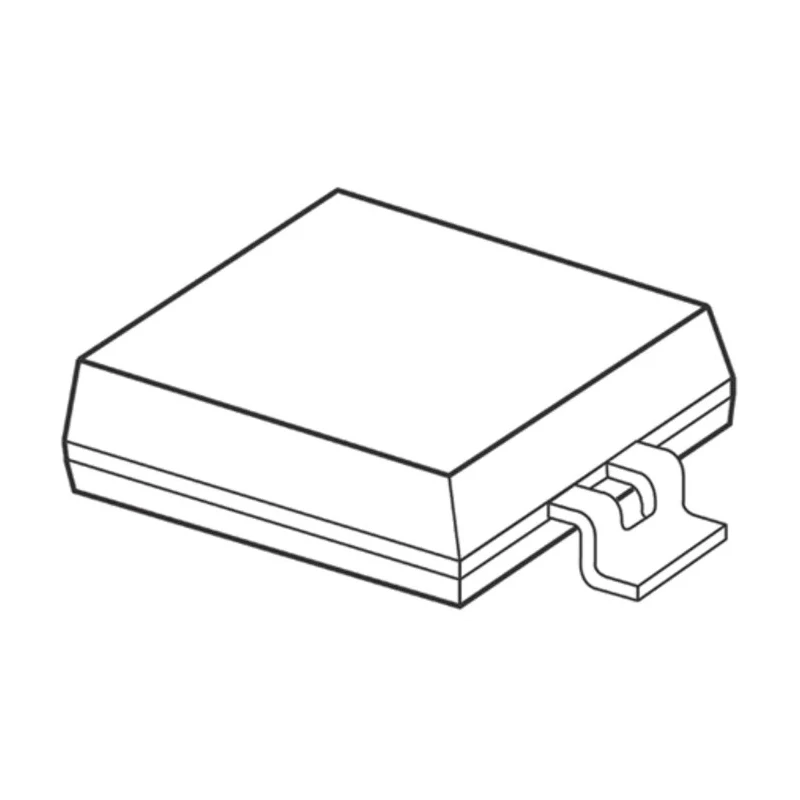

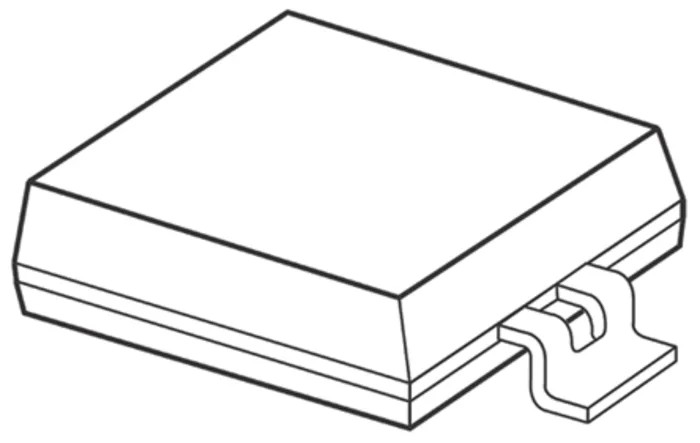

onsemi Infrared Photodiode 2-Pin Surface Mount PLCC 2L 65° Field of View QSB34CGR

Name: onsemi Infrared Photodiode 2-Pin Surface Mount PLCC 2L 65° Field of View QSB34CGR
Brand: onsemi
SKU: 374097
Price: 0.85 USD
Availability: InStock



Category Photodiode Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.2mm
Length	4.5mm
Model	QSB34CGR
Packaging	Tape & Reel
Width	4mm
Mount Type	Surface
Maximum Operating Temperature	85°C
Package Type	PLCC 2L
Minimum Operating Temperature	-25°C
Polarity	Forward
Dark Current	0.5nA
Standards/Approvals	RoHS
Number of Pins	2
Typical Fall Time	0.6ns
Wavelength of Peak Sensitivity	940nm
Spectrums Detected	Infrared
Breakdown Voltage	30V
Minimum Wavelength Detected	400nm
Maximum Wavelength Detected	1100nm
Angle of Half Sensitivity	65 °
Sensitive area dimensions	2.55 x 2.55 mm
Chip dimensions	3 x 3 mm
Reception angle	120°
onsemi, QSB34GR IR Si Photodiode, 60 °, Surface Mount PLCC 2LBrand	ON Semiconductor

Key Features

Designed for detecting infrared spectrum with peak sensitivity at 940nm.
Surface mount 2-pin PLCC 2L package suitable for automated PCB assembly.
Operates reliably between -25°C and 85°C ambient temperature.
Features low dark current of 0.5nA ensuring high signal-to-noise ratio.
Has a breakdown voltage of 30V and forward polarity configuration.
Compact size with dimensions 4.5mm length x 4mm width x 1.2mm height.
Standard RoHS compliant for environmental safety.
Tape & reel packaging facilitates efficient manufacturing processes.

Product Description

onsemi QSB34CGR is a high-performance infrared PIN photodiode designed for surface mount applications. Encapsulated in a compact PLCC 2L package, it features a 65° angle of half sensitivity, enabling precise infrared light detection within the near-infrared spectrum ranging from 400nm to 1100nm, with peak sensitivity at 940nm.

This photodiode employs a fast response time with typical rise and fall times of 0.6ns, supporting high-speed signal detection in demanding electronic circuits. Its low dark current of 0.5nA enhances the signal clarity, making it suitable for accurate photodetection.

The QSB34CGR has a robust design withstanding operating temperatures from -25°C to +85°C, ensuring reliability across diverse industrial environments. Its forward polarity and maximum breakdown voltage of 30V provide stable electrical performance.

Physical dimensions are compact at 4.5mm length, 4mm width, and 1.2mm height, with sensitive area dimensions of 2.55 x 2.55 mm on a chip sized 3 x 3 mm. This allows easy integration into densely packed circuit boards in electronics manufacturing.

The device is supplied in tape and reel packaging format to facilitate automated pick-and-place assembly processes in mass production. The product is RoHS compliant, adhering to international environmental regulations.

Infrared detection with peak sensitivity at 940nm. Fast response times of 0.6ns typical rise and fall times. Low dark current of 0.5nA for enhanced signal quality. Wide operating temperature range from -25°C to +85°C. Compact surface mount PLCC 2L package.

Tape & reel packaging for efficient assembly. RoHS compliant ensuring environmental safety. 65° angle of half sensitivity suitable for precise IR detection.

This photodiode is widely used in electronic circuits for infrared sensing applications including industrial automation, communication systems, and electronic measurement instruments. Suitable for applications requiring compact, reliable, and fast IR detection components.

Explore a broad selection of Photodiodes and optoelectronic components at EnvMart for industrial and manufacturing projects.
