| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.91mm |
| Length | 4.56mm |
| Model | 1N5231BTR |
| Mount Type | Through Hole |
| Series | 1N52 |
| Maximum Operating Temperature | 200°C |
| Package Type | SOD-27 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 20mA |
| Maximum Reverse Leakage Current | 5μA |
| Nominal Zener Voltage Vz | 5.1V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 17Ω |

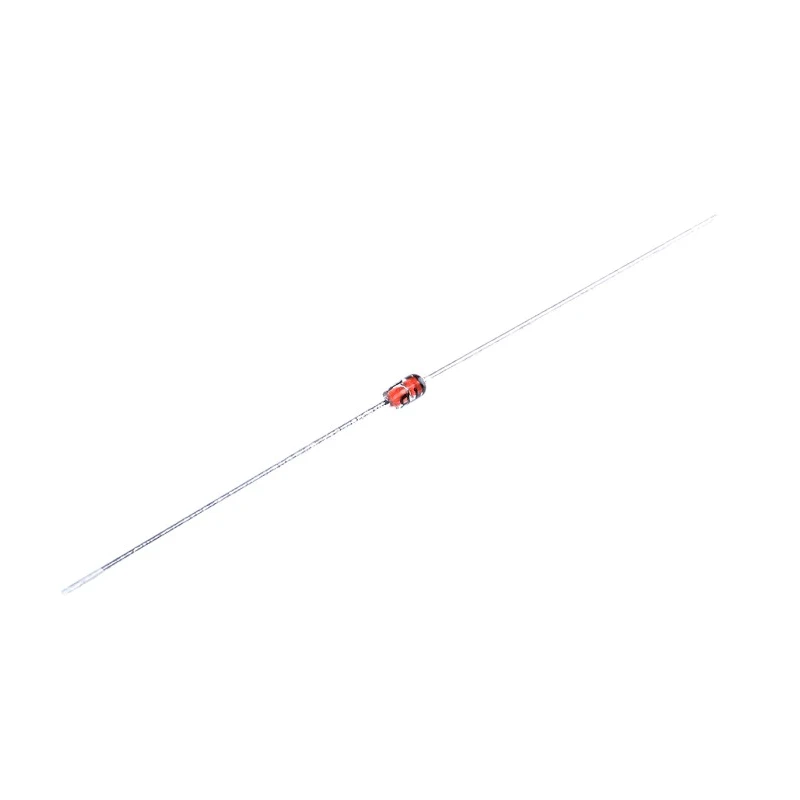

onsemi 1N5231BTR is a high-quality general purpose Zener diode with a nominal voltage of 5.1 V and power rating of 500 mW. Packaged in a durable SOD-27 through-hole 2-pin configuration, this component is ideal for voltage regulation and protection in electronic circuits.
This diode features excellent thermal stability, capable of operating from -65°C up to 200°C, making it suitable for automotive and industrial environments. Its 5% voltage tolerance guarantees consistent performance under varying conditions.
The 1N5231BTR also ensures low leakage current of only 5 μA, contributing to energy-efficient designs. With a test current set at 20 mA and a maximum Zener impedance of 17 ohms, it provides reliable voltage clamping with minimal signal distortion.
Compact mechanical dimensions - length 4.56 mm and height 1.91 mm - allow for versatile deployment in dense PCB layouts. The through-hole mounting style facilitates easy assembly and stable soldering on traditional circuit boards.
This Zener diode is widely used in discrete semiconductor applications for industrial electronics, power supplies, laboratory equipment, and automotive systems where precision voltage reference is essential. It is a dependable choice for engineers seeking a robust voltage stabilization component.
This single Zener diode offers a nominal Zener voltage of 5.1 V. It has a maximum power dissipation capacity of 500 mW. The device supports through-hole mounting for ease of installation. The Zener voltage tolerance is ±5%, ensuring reliable voltage regulation.
Operates effectively from a minimum of -65°C to a maximum of 200°C. The maximum reverse leakage current is only 5 μA, enhancing efficiency. Test current specified at 20 mA maintains diode stability. Package dimensions are compact with a length of 4.56 mm and height of 1.91 mm.
The maximum Zener impedance is 17 ohms, suitable for general purpose applications. Explore more Zener Diodes at EnvMart for reliable semiconductor components for your electronic design projects.
