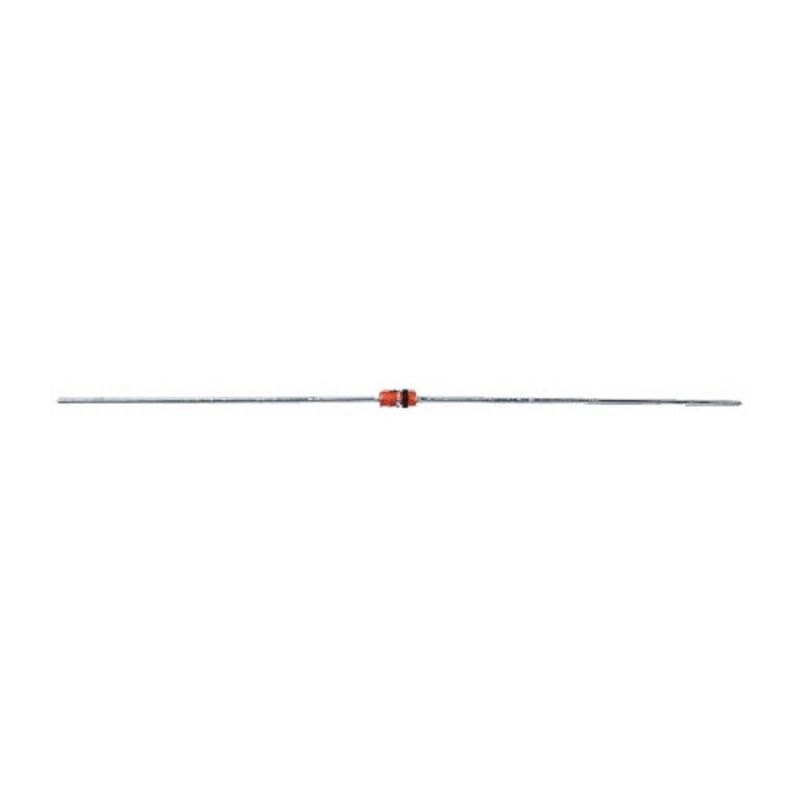

onsemi 14 V Zener Diode Single 500 mW Through Hole 2-Pin SOD-27 1N5244BTR

onsemi 1N5244BTR is a high quality Zener Diode designed for voltage regulation and protection applications in various industrial electronic systems. This single element diode offers a nominal Zener voltage of 14 V and maximum power dissipation of 500 mW, ideal for low power voltage regulation tasks.

The diode includes a Through Hole mount type with 2 pins packaged in the SOD-27 case, which is widely compatible with printed circuit boards requiring stable, general purpose voltage reference devices. Its compact dimensions of 1.91 mm height and 4.56 mm length facilitate versatile mounting options in dense PCB layouts.

Operating reliably across an extended temperature range from -65°C to 200°C makes this diode suitable for demanding environments such as industrial electronics, automotive circuits, and power supplies. Its low leakage current of 100 nA and maximum Zener impedance of 15 ohms at 9 mA test current ensures efficient and stable voltage clamping performance.

This onsemi diode series 1N52 is engineered for robustness and precision within general purpose applications. It is a trusted component for circuit designers aiming for long-term reliability, precise voltage regulation, and effective surge protection in electronic equipment.

Rated at 500 mW power dissipation for low to medium power electronic circuit regulation. Nominal Zener voltage of 14 V with ±5% tolerance for accurate voltage reference. General purpose Zener type supports a wide range of electronic applications.

Through Hole mounting ensures ease of assembly and mechanical stability on PCBs. Compact SOD-27 package suitable for space-constrained designs. Minimal reverse leakage current reduces energy losses in circuits. Wide operating temperature range guarantees performance under various environmental conditions.

Industry-compliant package and pin configuration standardize replacement and design integration.

This component is ideal for use in signal conditioning, voltage regulation, and protective circuitry across industrial automation, consumer electronics, and communication devices. Its consistent performance and compliance with general purpose design make it a dependable choice for engineers and manufacturers.
