| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.91mm |
| Length | 4.56mm |
| Model | 1N5243BTR |
| Mount Type | Through Hole |
| Series | 1N52 |
| Maximum Operating Temperature | 200°C |
| Package Type | SOD-27 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 9.5mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 13V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 13Ω |

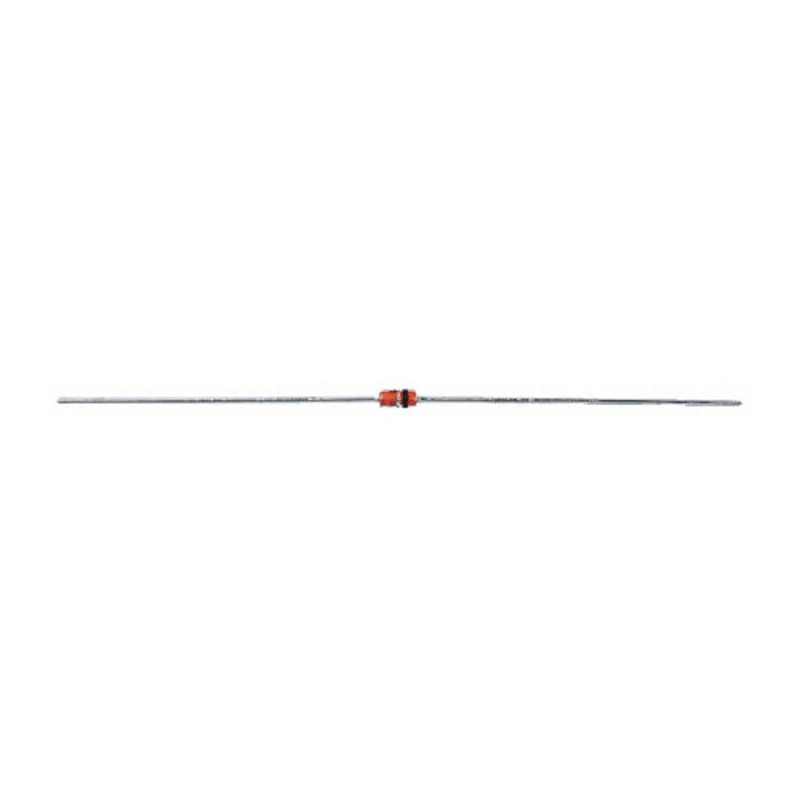

onsemi 1N5243BTR is a high quality single zener diode designed for voltage regulation applications. This general purpose diode provides a nominal zener voltage of 13 V and maximum power dissipation of 500 mW housed in a sturdy through-hole 2-pin SOD-27 package.
The diode features a low maximum reverse leakage current of 500 nA and a zener impedance of 13 Ω ensuring stable voltage clamping with minimal noise.
It is rated for operation in temperatures from -65°C up to 200°C, making it suitable for harsh industrial and commercial environments. The diode's test current is 9.5 mA, optimized for voltage regulation and testing reliability.
Its compact dimensions of 1.91 mm height and 4.56 mm length allow easy integration into printed circuit boards where space is limited.
Typical applications include power supply protection, voltage reference circuits, and general electronic device stabilization in industrial, manufacturing, laboratory, and electronic component assemblies.
The diode has a maximum power dissipation of 500 mW ensuring reliable performance. Designed for through hole mount type, suitable for various PCB mounting applications. Nominal zener voltage is 13 V with a tolerance of ±5% for precision voltage regulation.
Maximum operating temperature up to 200°C and minimum operating temperature down to -65°C. Features low maximum reverse leakage current of 500 nA and maximum zener impedance of 13 Ω. Compact dimensions with height 1.91 mm and length 4.56 mm making it ideal for space constrained applications.
Test current is 9.5 mA for optimal zener voltage regulation testing. Suited for electronic, power, and semiconductor applications requiring voltage stabilization.
This diode is new and manufactured in compliance with industrial standards without automotive certification. It belongs to the 1N52 series by onsemi and is suitable for use in electronics manufacturing, repair, and prototyping.
