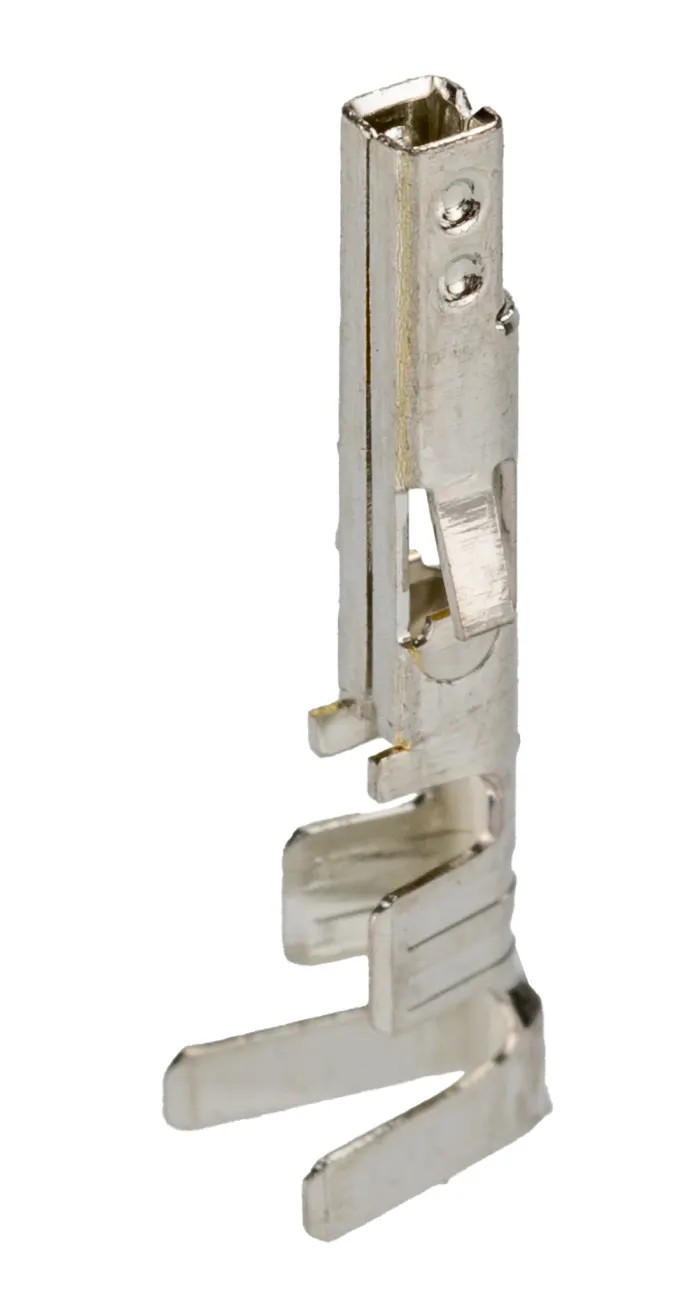

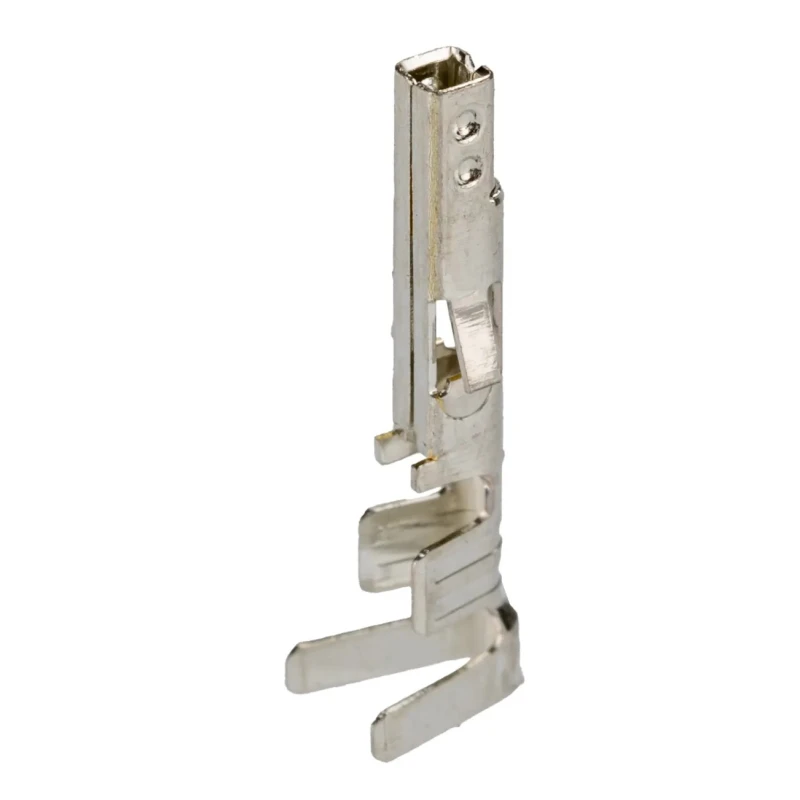

Molex 5556 Series Female Crimp Terminal, 9A Current, 28 AWG Min, 22 AWG Max, Tin Plating 39-00-0215
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Suitable for wire sizes ranging from 28 AWG to 22 AWG.
- Constructed with phosphor bronze contact material ensuring conductivity and durability.
- Tin plating enhances corrosion resistance and reliable electrical contact.
- Operates efficiently in temperature ranges from -40°C up to 105°C.
- Features locking tangs to securely retain the terminal in connector housings.
- Has maximum contact resistance of 10 milliohms for optimal electrical performance.
- Termination type is crimp for strong mechanical and electrical connection.
- Ideal for use in automotive, industrial automation, medical, communications, and consumer electronics applications.
Product Description
Molex 39-00-0215 Female Crimp Terminal is a precision crimp contact designed specifically for use with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings. It supports a continuous current of 9A and can accommodate wire sizes from 28 AWG (0.08 mm²) minimum to 22 AWG (0.35 mm²) maximum, ensuring versatility across multiple wiring requirements.
Manufactured from durable phosphor bronze with tin plating, this Crimp Terminal offers excellent corrosion resistance and electrical conductivity, making it suitable for demanding environments. The design incorporates multiple points of contact and locking tangs which guarantee a secure and reliable connection in housing assemblies.
Operating temperatures range from -40°C up to 105°C, permitting deployment in applications with wide thermal variations, including automotive systems, industrial automation, medical devices, communications networks, and consumer electronics.
The terminal has a maximum contact resistance of 10 milliohms, ensuring minimal signal loss and energy efficiency. Its crimp termination ensures a robust mechanical and electrical connection, facilitating fabrication and maintenance processes.
Reliable electrical connection with multiple contact points. Secure housing retention via locking tangs. Wide operating temperature range accommodates harsh environments. High current capacity of 9A for robust applications.
Supports various wire gauges from 28 AWG to 22 AWG. Durable phosphor bronze construction with tin plating. Applications in automotive, industrial, medical, communications, and consumer electronics sectors.
This product is a new, genuine Molex component manufactured with stringent quality standards. Users seeking trusted connection solutions for Mini-Fit series connectors will find this terminal an ideal choice.
Explore other high-quality crimp contacts and terminals in the Electronics & Electricals category on EnvMart for comprehensive connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Molex 5556 Series Female Crimp Terminal supports a continuous current of 9A.
It accommodates wire sizes ranging from 28 AWG (0.08 mm²) minimum to 22 AWG (0.35 mm²) maximum.
This terminal is constructed from phosphor bronze with tin plating, which enhances its corrosion resistance and conductivity.
The maximum contact resistance is 10 milliohms, ensuring optimal electrical performance.
It operates efficiently in temperature ranges from -40°C up to 105°C.
The termination type is crimp, providing a strong mechanical and electrical connection.
This model is designed for use with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings.
It is suitable for applications in automotive, industrial automation, medical devices, communications, and consumer electronics.
It features locking tangs that securely retain the terminal in connector housings, ensuring a reliable connection.
The terminal is female gendered, designed for compatibility with corresponding male connectors.
This terminal is manufactured in India.
This terminal belongs to the Molex 5556 series.
