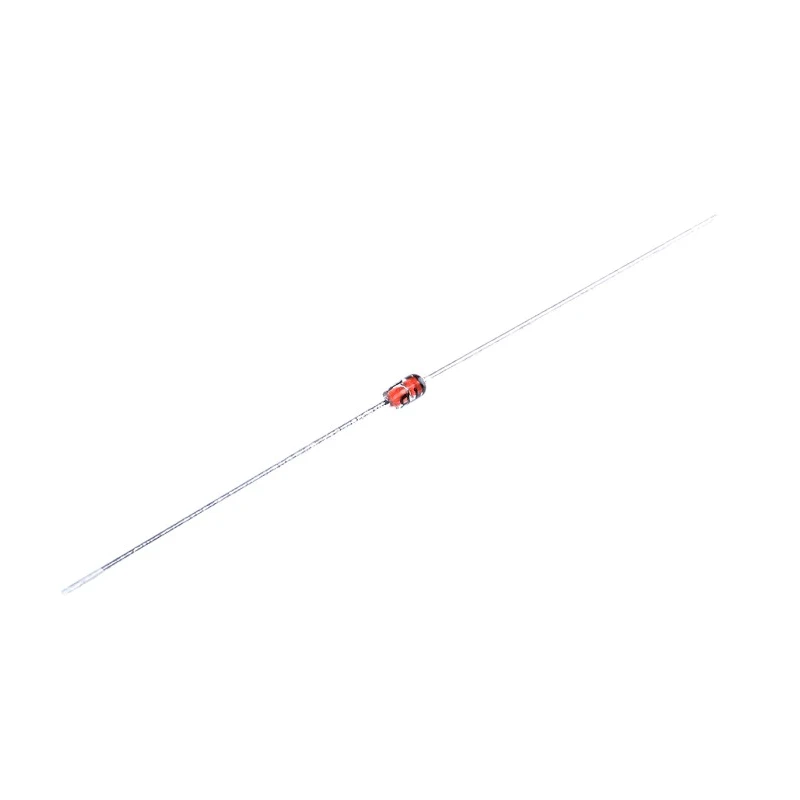

onsemi 5.1V General Purpose Zener Diode, Single, 500 mW, Through Hole 2-Pin SOD-27 1N5231BTR

onsemi 1N5231BTR is a high-quality general purpose 5.1V Zener diode providing voltage stabilization and regulation in electronic circuits. It is designed for through-hole mounting with a compact and robust SOD-27 package housing two pins for easy integration on printed circuit boards.

This diode supports a maximum power dissipation of 500 mW, making it ideal for low to moderate power applications. With a nominal Zener voltage of 5.1 volts and a tolerance of ±5%, it is suitable for protecting circuits from voltage spikes and maintaining voltage reference points.

The 1N5231BTR has a maximum reverse leakage current of 5 μA and operates reliably across a wide temperature range from -65°C to 200°C, supporting demanding industrial and commercial environments. Its impedance and electrical characteristics are optimized to provide accurate voltage regulation at the specified test current of 20 mA.

The diode’s dimensions of 4.56 mm length and 1.91 mm height enable its use in compact electronic assemblies. It has not been certified under specific automotive standards but is well-suited for general purpose semiconductor roles within power supplies, electronic instrumentation, and control system applications.

Industrial and laboratory users often rely on this diode for stable voltage reference applications in measurement equipment, power circuits, and embedded system protection. This device also finds utility in education and prototype development due to its reliable specifications and ease of mounting.

This Zener diode provides voltage regulation with a nominal Zener voltage of 5.1 volts. It has a maximum power dissipation rating of 500 milliwatts for reliable operation. The device features a two-pin SOD-27 package and is mounted via through-hole technology.

Offers a maximum reverse leakage current of 5 microamperes and a test current of 20 mA. Its maximum operating temperature is rated up to 200 degrees Celsius, with a minimum operating temperature of -65 degrees Celsius. Provides general purpose Zener diode functionality suitable for various electronic circuits.

The Zener impedance is rated at a maximum of 17 ohms, ensuring stable voltage clamp behavior. Comes in a compact 4.56 mm length and 1.91 mm height form factor, suitable for space-constrained devices. Explore the extensive range of Zener Diodes and semiconductor components at EnvMart for your electronic design and manufacturing needs.
