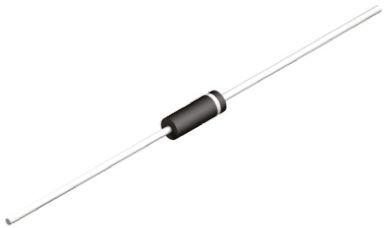

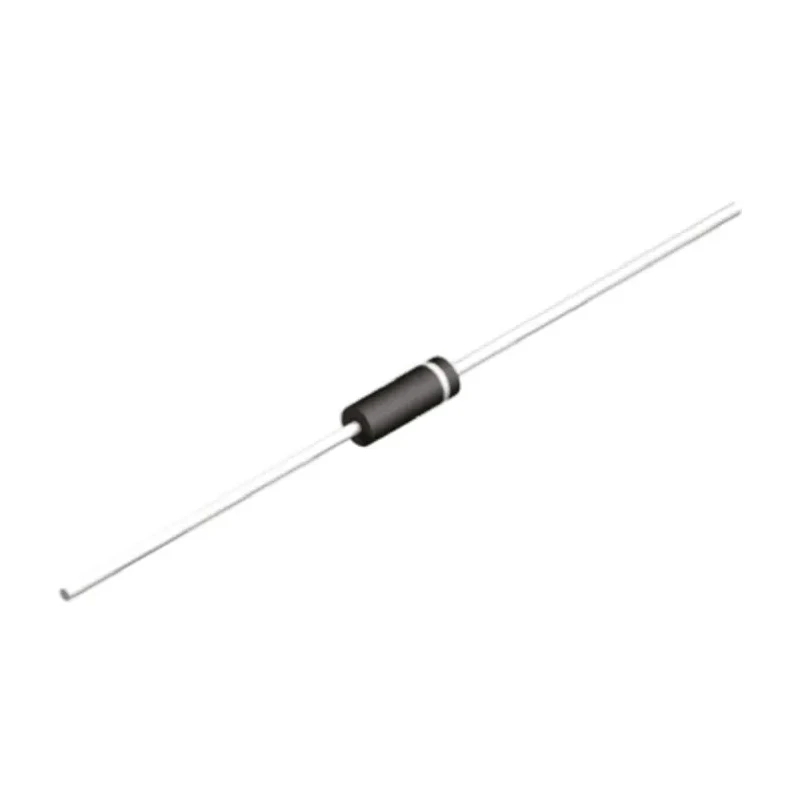

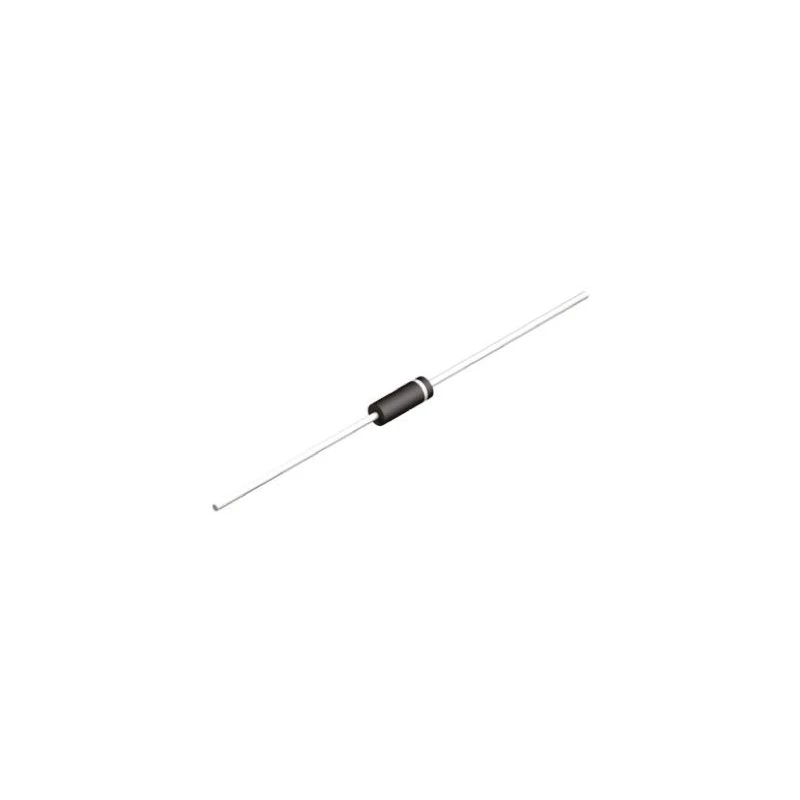

onsemi Zener Diode Single 19 V 5 W 5% Through Hole 2-Pin DO-15 1N5356BRLG

Free Delivery in India | Lowest Global Shipping Charges

onsemi Zener Diode Single 19 V 5 W 5% Through Hole 2-Pin DO-15 1N5356BRLG

Name: onsemi Zener Diode Single 19 V 5 W 5% Through Hole 2-Pin DO-15 1N5356BRLG
Brand: onsemi
SKU: 373136
Price: 0.24 USD
Availability: InStock



Category Zener Diodes Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	3.68mm
Length	8.89mm
Model	1N5356BRLG
Mount Type	Through Hole
Series	1N5356B
Maximum Operating Temperature	200°C
Package Type	DO-15
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	5W
Diode Configuration	Single
Test Current It	65mA
Maximum Reverse Leakage Current	500nA
Nominal Zener Voltage Vz	19V
Zener Type	Voltage Regulator
Maximum Zener Impedance	75Ω

Key Features

Features a single diode configuration suitable for precise voltage regulation.
Nominal Zener voltage is 19 volts with a tolerance of ±5%.
Maximum power dissipation rating is 5 watts ensuring reliable operation.
Packaged in DO-15 axial through-hole format with 2 pins for easy PCB mounting.
Test current rating of 65 mA optimizes performance stability.
Maximum Zener impedance is 75 ohms maintaining electrical integrity.
Designed for operation between -65°C and 200°C for wide environmental tolerance.
Featuring corrosion resistant surfaces and readily solderable leads for durability.

Product Description

onsemi 1N5356BRLG Zener Diode is a single 19 V nominal voltage diode with a 5 W power dissipation rating, housed in a DO-15 through-hole 2-pin package. It provides stable voltage regulation with tight limits and enhanced operational characteristics thanks to silicon-oxide passivated junction technology. The device's molded package is thermosetting plastic, void-free transfer-molded for reliable protection against common environmental factors.

This 5-watt Zener diode supports industrial electronic applications requiring voltage regulation and protection within specified test and operating temperature ranges from -65°C to 200°C. It has a rated test current of 65 mA and maximum reverse leakage current of 500 nA, ensuring low leakage and efficient performance.

The diode's external surfaces are corrosion resistant, and axial leads are readily solderable for convenience in assembly and maintenance. Its compact dimensions of 8.89 mm length and 3.68 mm height facilitate integration into a variety of electronic circuits.

This product complies with RoHS environmental standards and is part of the 1N5356B series, designed for durable and efficient voltage regulation solutions. It is intended for use in diverse applications including industrial electronics, power supplies, and control systems.

Features a single diode configuration suitable for precise voltage regulation. Nominal Zener voltage is 19 volts with a tolerance of ±5%. Maximum power dissipation rating is 5 watts ensuring reliable operation. Packaged in DO-15 axial through-hole format with 2 pins for easy PCB mounting.

Test current rating of 65 mA optimizes performance stability. Maximum Zener impedance is 75 ohms maintaining electrical integrity. Designed for operation between -65°C and 200°C for wide environmental tolerance. Featuring corrosion resistant surfaces and readily solderable leads for durability.

RoHS compliant, ensuring adherence to environmental standards. Explore EnvMart’s extensive selection of semiconductors and electronic components suited for demanding industrial, manufacturing, and laboratory applications.
