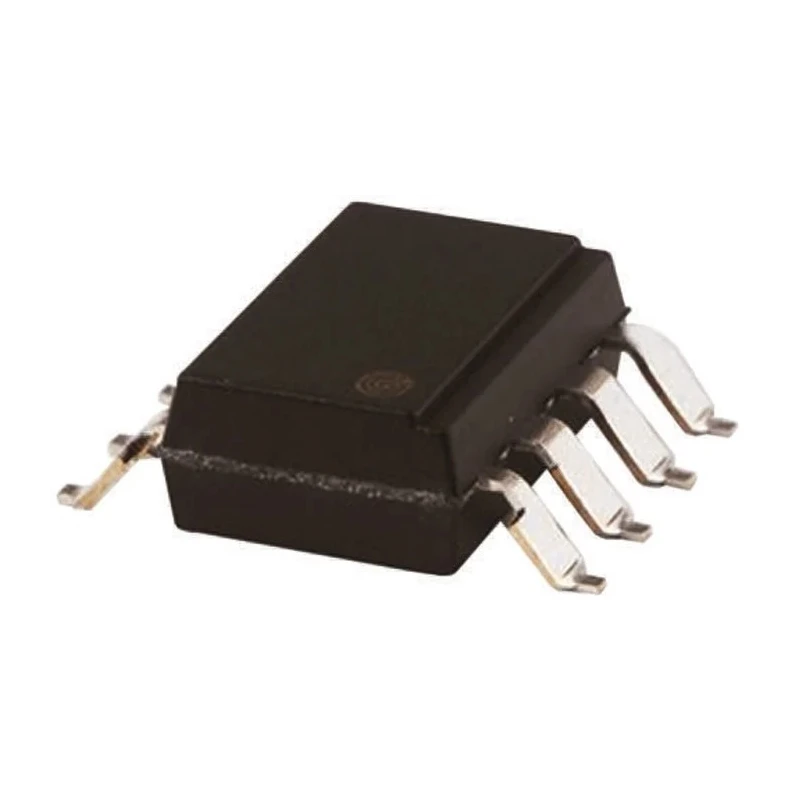

Broadcom DC Input Optocoupler Surface Mount, Phototransistor Output, 8-Pin DIP HCPL-4562-300E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HCPL-4562-300E |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Output type | Phototransistor |
| Series | HCPL |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 12mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL 1577, IEC/EN/DIN EN 60747-5-2, CSA |
| Maximum Forward Voltage | 1.6V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Maximum Current Transfer Ratio | 45% |
Key Features
- Designed for high-speed logic ground isolation including TTL/TTL, TTL/CMOS, TTL/LSTTL applications.
- Features a maximum forward voltage of 1.6V and maximum input current of 12mA.
- Offers isolation voltage of 3750Vrms ensuring robust signal isolation.
- Operates reliably between -40°C and 85°C operating temperatures.
- Comes in an 8-pin DIP package suitable for tape & reel packaging.
- Meets standards UL 1577, IEC/EN/DIN EN 60747-5-2, and CSA approvals.
- Current transfer ratio fixed at 45% providing consistent performance.
Product Description
Broadcom HCPL-4562-300E is a DC input optocoupler designed for industrial and electronic applications requiring high-speed signal isolation with phototransistor output. Manufactured with surface-mount technology in an 8-pin dual inline package (DIP), it is optimized for compact circuit designs and reliable performance.
This device features a maximum forward voltage of 1.6 volts and a maximum input current rating of 12 milliamps, ensuring safe and effective operation within electronic circuits. The isolation voltage capability reaches 3750 Vrms, providing effective electrical separation to protect sensitive components from high voltages or noise interference.
Engineered to operate in a wide temperature range from -40°C to 85°C, the HCPL-4562-300E is suitable for harsh environmental conditions encountered in industrial automation, communications, and power management systems.
Notably, the optocoupler complies with key international safety and quality standards, including UL 1577, IEC/EN/DIN EN 60747-5-2, and CSA, confirming its reliability and compliance for global deployment.
Key applications include high-speed logic ground isolation for TTL and CMOS logic families, pulse transformer replacement, and analog signal ground isolation, thus supporting a wide scope of industrial, laboratory, HVAC, and manufacturing uses.
Designed for high-speed digital signal isolation using phototransistor output. Surface mount device simplifies PCB assembly and reduces footprint. Robust isolation voltage safeguards circuit integrity against voltage surges.
Wide industrial temperature range suitable for demanding environments. Packaging on tape & reel facilitates automated production lines. Compliance with multiple safety and quality standards ensures performance reliability.
Useful in power electronics, telecommunications, and industrial controls. Explore more electronic components and Optocouplers at EnvMart for diversified industrial and technical applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of this model is 1.6 volts.
The input current type for the HCPL-4562-300E is DC.
It features an isolation voltage capability of 3750 Vrms, ensuring effective electrical separation.
This model operates reliably between -40°C and 85°C.
This optocoupler provides a phototransistor output.
It has 1 channel.
It is packaged in tape & reel format, suitable for automated production lines.
It complies with UL 1577, IEC/EN/DIN EN 60747-5-2, and CSA standards.
The maximum input current rating is 12 milliamps.
This model is designed for surface mount applications.
The optocoupler has 8 pins.
It belongs to the HCPL series of optocouplers.
