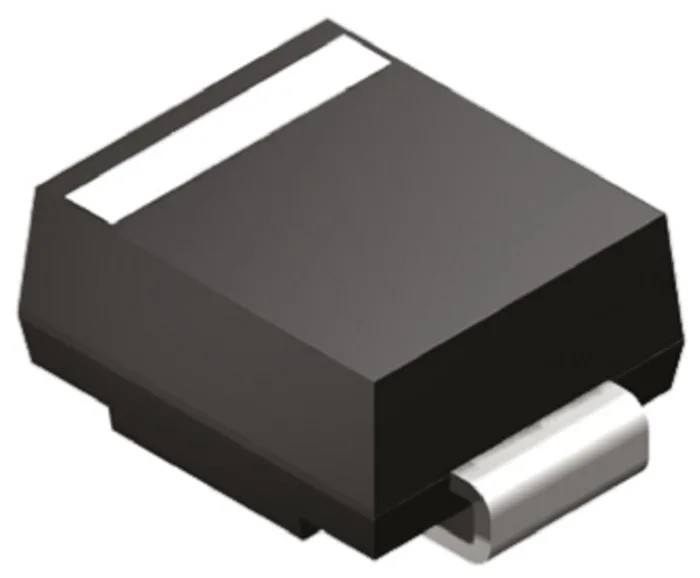

Taiwan Semiconductor 1-Element Uni-Directional TVS Diode 600 W, 2-Pin DO-214 SMBJ54A

Free Delivery in India | Lowest Global Shipping Charges

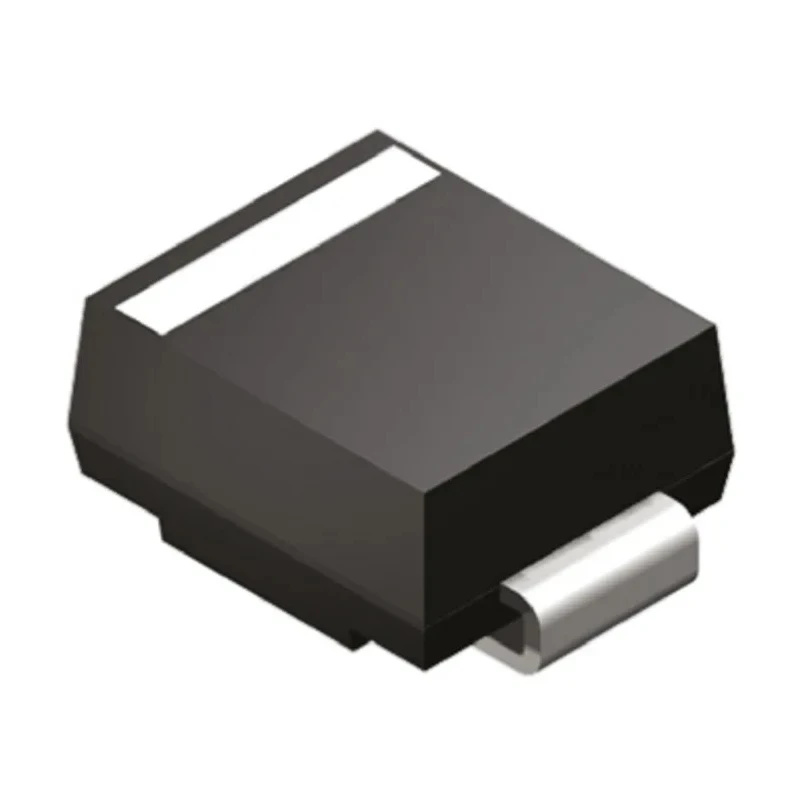

Taiwan Semiconductor 1-Element Uni-Directional TVS Diode 600 W, 2-Pin DO-214 SMBJ54A

Name: Taiwan Semiconductor 1-Element Uni-Directional TVS Diode 600 W, 2-Pin DO-214 SMBJ54A
Brand: Taiwan Semiconductor
SKU: 373493
Price: 0.17 USD
Availability: InStock



Category TVS Diode Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Taiwan Semiconductor
Height	2.45mm
Length	4.75mm
Model	SMBJ54A
Width	3.95mm
Mount Type	Surface
Series	SMBJ
Maximum Operating Temperature	150°C
Package Type	DO-214
Minimum Operating Temperature	-55°C
Standards/Approvals	FBI
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	87.1V
Diode Configuration	Single
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	60V
Maximum Reverse Stand-off Voltage Vwm	54V
Peak Pulse Power Dissipation Pppm	600W
Test Current It	1mA
Maximum Peak Pulse Current Ippm	6.9A
Maximum Reverse Leakage Current	5μA

Key Features

Features single diode configuration for unidirectional protection.
Operates at a minimum breakdown voltage of 60 V and maximum reverse stand-off voltage of 54 V.
Designed to clamp voltage at 87.1 V ensuring device protection.
Supports operating temperature range from -55° C to 150° C.
Compact surface mount package with dimensions 4.75 mm length, 3.95 mm width, and 2.45 mm height.
Maximum peak pulse current of 6.9 A with low leakage current of 5 μA.
Ideal for protecting sensitive electronics against transient voltage spikes.
Manufactured with glass-passivated junction technology for reliability and durability.

Product Description

Taiwan Semiconductor SMBJ54A is a 1-element uni-directional transient voltage suppression (TVS) diode designed to safeguard electronic circuits from transient voltage spikes and surges. This device is rated for a peak pulse power dissipation of 600 W, making it suitable for robust protection in power-sensitive applications. The SMBJ54A is housed in a surface mount DO-214 package featuring a compact footprint - 4.75 mm in length, 3.95 mm in width, and 2.45 mm in height - facilitating easy PCB integration.

Its operating voltage parameters include a minimum breakdown voltage of 60 V and a maximum reverse stand-off voltage of 54 V, with a clamping voltage of 87.1 V that effectively limits voltage transients. With a low maximum reverse leakage current of 5 μA and a maximum peak pulse current of 6.9 A, it maintains high efficiency and reliability during transient events.

The diode performs reliably across a wide temperature range from -55° C to 150° C, supporting various industrial and automotive environments. The glass-passivated junction construction ensures enhanced durability and device longevity. Its compliance with FBI standards and UL94V-0 flammability rating certifies safety and quality.

This diode is ideal for industrial electronics, power management circuits, automotive electronics, and other devices requiring transient voltage suppression to prevent damage from voltage spikes and surges, improving system stability and lifespan.

Single diode, uni-directional TVS Diode design. Peak pulse power rating of 600 W for transient suppression. Surface mount DO-214 package dimensions: 4.75 x 3.95 x 2.45 mm. Voltage breakdown and clamping levels optimized for efficient protection.

Wide operating temperature range suitable for harsh environments. Glass-passivated junction ensuring device reliability. Low leakage current minimizing power consumption. Complies with fire safety and quality standards. Applicable in automotive, power electronics, and industrial systems.

Compact design for PCB mounting in modern electronics. Explore our extensive range of transient voltage suppressors and diodes at EnvMart for reliable circuit protection solutions.
