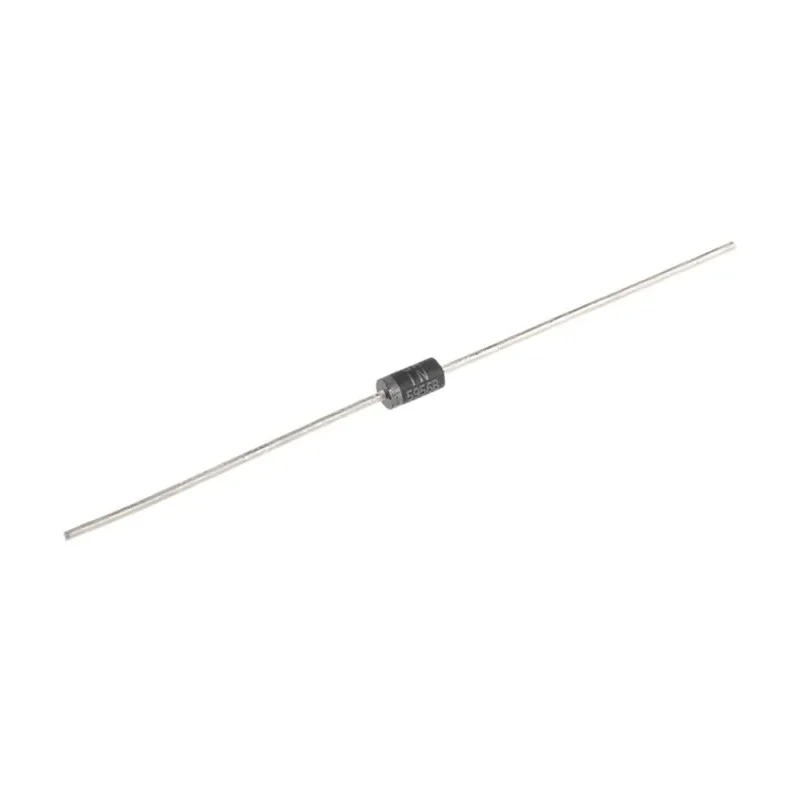

onsemi Single 200 V Zener Diode 3 W 5% Tolerance Through Hole 2-Pin DO-41 1N5956BRLG

onsemi 1N5956BRLG is a high-quality single Zener diode designed as a voltage regulator with a nominal Zener voltage of 200 V and a maximum power dissipation of 3 W. It is housed in a through hole DO-41 package, featuring a 2-pin configuration ideal for robust mounting on printed circuit boards (PCB).

This component provides reliable voltage regulation with a tolerance of ±5%, making it suitable for industrial electronic circuits, power supplies, and protection applications. The diode operates efficiently with a maximum reverse leakage current of 250 nA and a test current of 1.9 mA.

The device supports a wide operational temperature range from -65°C to a maximum of 200°C, ensuring dependable performance in harsh environments common in manufacturing and industrial settings. It boasts a maximum Zener impedance of 1200 Ω, delivering stable voltage regulation across various load conditions.

Its compact size with a length of 5.2 mm and a height of 2.7 mm allows easy integration into space-constrained assemblies. The 1N5956BRLG series is suited for diverse applications including power management, signal conditioning, and voltage reference in laboratory, industrial, and electronic manufacturing environments.

Engineers and designers will find this diode beneficial for developing circuits requiring precise voltage regulation and protection. Its through hole package facilitates soldering and mechanical stability on PCBs, making it a preferred choice for discrete semiconductor applications.

The diode features a Zener voltage tolerance of ±5% ensuring voltage regulation precision. Constructed with a 2-pin configuration suitable for discrete semiconductor applications. Maximum operating temperature is rated up to 200°C for reliability in varied environments.

Equipped with a maximum reverse leakage current of 250 nA for improved efficiency. Compact dimensions with a length of 5.2 mm and height of 2.7 mm enable flexible PCB mounting. The device has a test current of 1.9 mA to meet standard electrical characteristics.

Maximum Zener impedance stands at 1200 Ω, supporting voltage stabilization. Suitable for applications requiring a voltage regulator type Zener diode in industrial and electronic circuitry. Discover more semiconductor components and Zener diode options in the Electronics & Electricals category at EnvMart for your industrial and manufacturing needs.
