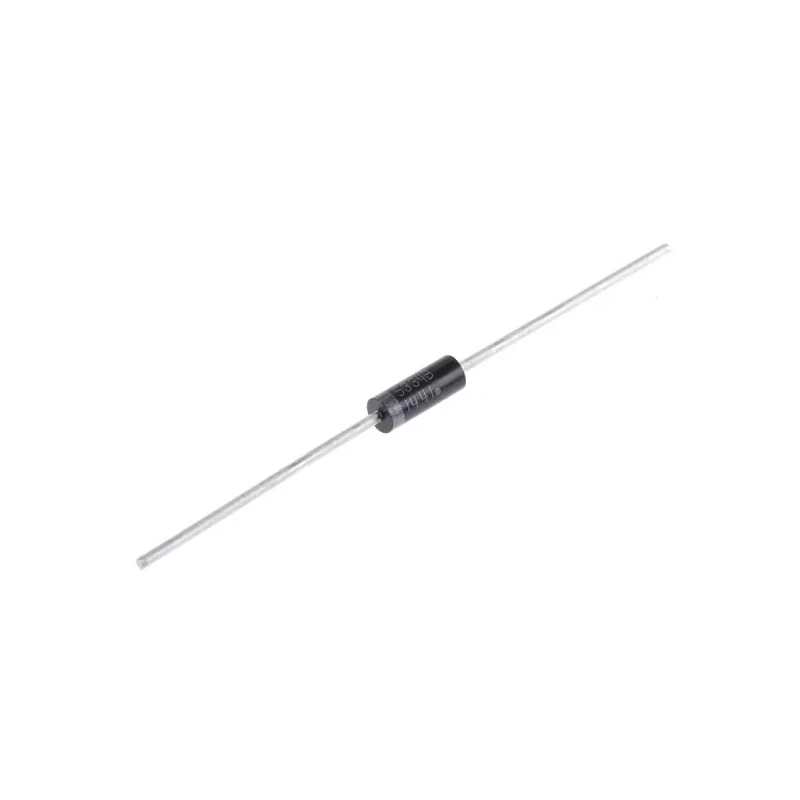

onsemi Zener Diode Single 3.6 V 5 W 5% Voltage Regulator Through Hole 2-Pin DO-15 1N5334BRLG

onsemi 1N5334BRLG Zener Diode is a high-performance single-element diode designed for voltage regulation with a nominal Zener voltage of 3.6 V and maximum power dissipation of 5 W. The device utilizes a DO-15 through hole package which is axial leaded, providing ease of assembly and superior durability under harsh conditions. Its molded package is void-free transfer-molded thermosetting plastic that ensures resistance against corrosion and environmental factors.

Featuring a test current of 350 mA and Zener voltage tolerance of ±5%, the device is ideal for precise voltage regulation in industrial electronic circuits. Its maximum operating temperature of 200°C and minimum of -65°C make it suitable for a wide range of challenging environments, including industrial automation, power supplies, and voltage reference applications.

The 1N5334BRLG diode's tight voltage regulation limits reflect the superior silicon-oxide passivated junctions, ensuring consistent and reliable performance. With maximum reverse leakage current of 150 μA and maximum Zener impedance of 500 Ω, the diode maintains efficient electrical stability. The corrosion-resistant external surfaces and readily solderable leads provide robustness required in demanding applications.

This Zener diode belongs to the 1N53 series Surmetic 40 axial-leaded 5 Watt diode family from ON Semiconductor. Nominal 3.6 V Zener voltage with 5% tolerance for stable voltage regulation. Maximum power dissipation of 5 W supports heat management needs.

Through hole axial leaded package DO-15 for ease of mounting and durability. Wide operating temperature from -65°C to 200°C for industrial applications. Designed with void-free transfer-molded plastic package for environmental resistance.

Low maximum reverse leakage current of 150 μA enhances performance stability. Robust silicon-oxide passivated junction technology ensures reliability. Corrosion resistant external surfaces and solderable leads for convenient installation.

This onsemi product is designed for industrial, electronic, and power supply applications that require precise voltage regulation and reliable performance under diverse environmental conditions. Explore more semiconductors and Zener Diodes at EnvMart for your electronics and electrical component needs.
