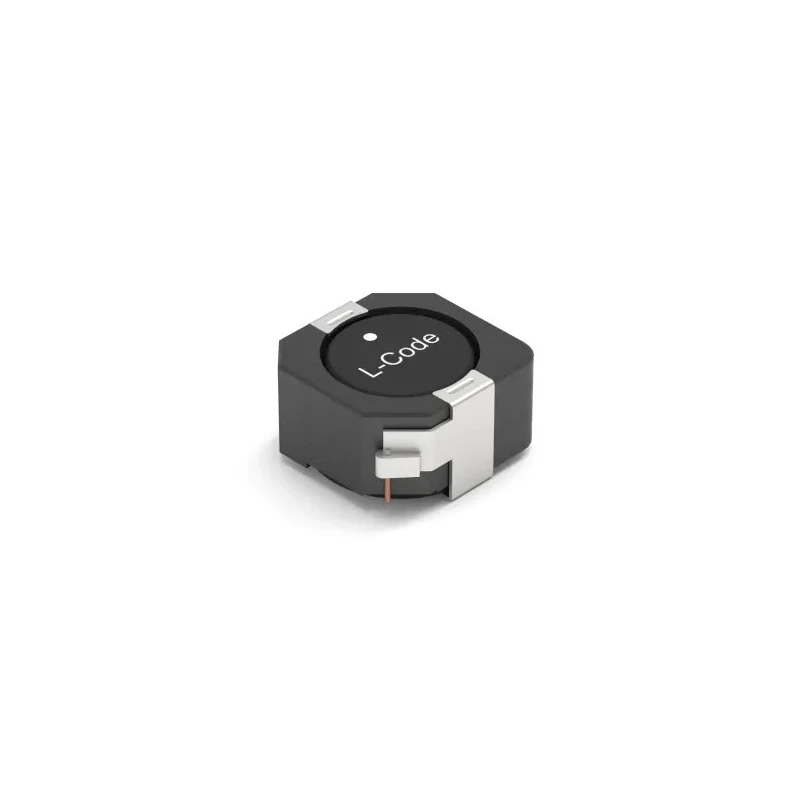

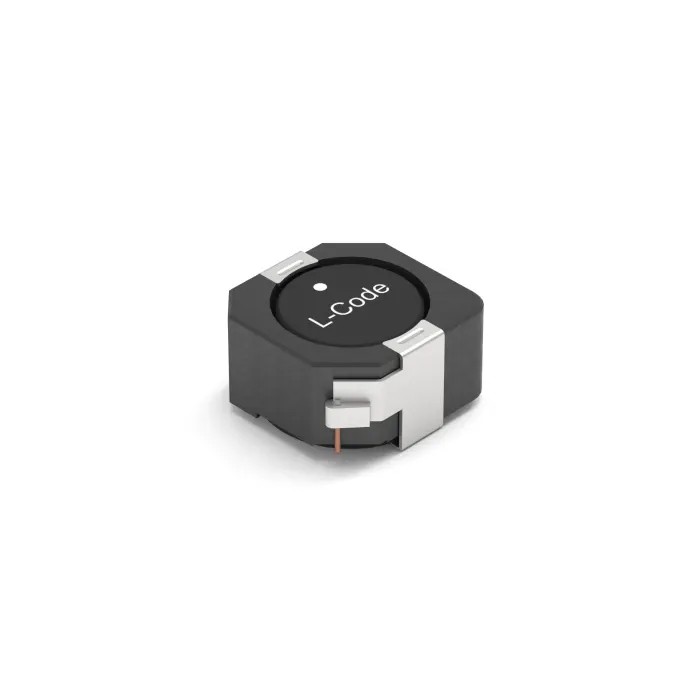

Wurth Elektronik WE-PD 7332 Shielded Wirewound Surface Mount Inductor 6.8 μH ±20 % 2.5 A Idc 7447789006

Wurth Elektronik model 7447789006 is a WE-PD series shielded wirewound surface mount inductor with an inductance of 6.8 μH and tolerance of ±20 %. It supports a maximum DC current of 2.5 A and features a compact 7332 package suitable for various electronic applications.

This inductor is magnetically shielded, resulting in a low leakage magnetic field that enhances circuit performance and reliability. Its wirewound construction offers high storage capacity and consistent inductance under electrical stress.

Designed for operation within -40°C to +125°C, this component meets the AEC-Q200 automotive standard and adheres to IEC 62024-2-2020, JEDEC JS709B, REACH, and RoHS compliance requirements, ensuring quality and environmental safety.

The inductor features a maximum DC resistance of 44 mΩ and a maximum self-resonant frequency of 26 MHz, supporting efficient power regulation and noise reduction in switching regulators, integrated DC-DC converters, and graphic cards.

It is delivered in tape & reel packaging, facilitating automated assembly processes, making it ideal for industrial, automotive, telecommunications, and consumer electronics manufacturing.

Magnetically shielded wirewound construction reduces noise and interference. Support for high current load of 2.5 A DC. Compact 7332 surface mount package for space-constrained designs. Wide operating temperature range from -40 to 125°C for harsh environments.

Compliance with automotive AEC-Q200 standard and environmental directives. Wirewound design ensures stability and durability under vibration. Tape & reel packaging for high-efficiency production line insertion. Applications include switching regulators, DC-DC converters, and graphic cards.

Maximum DC resistance of 44 mΩ ensures low losses and heat generation.

Choose Wurth Elektronik inductors for robust and high-performance surface mount solutions. Explore our wide range of Surface Mount Inductors and related electrical components available at EnvMart for industrial and commercial applications.
