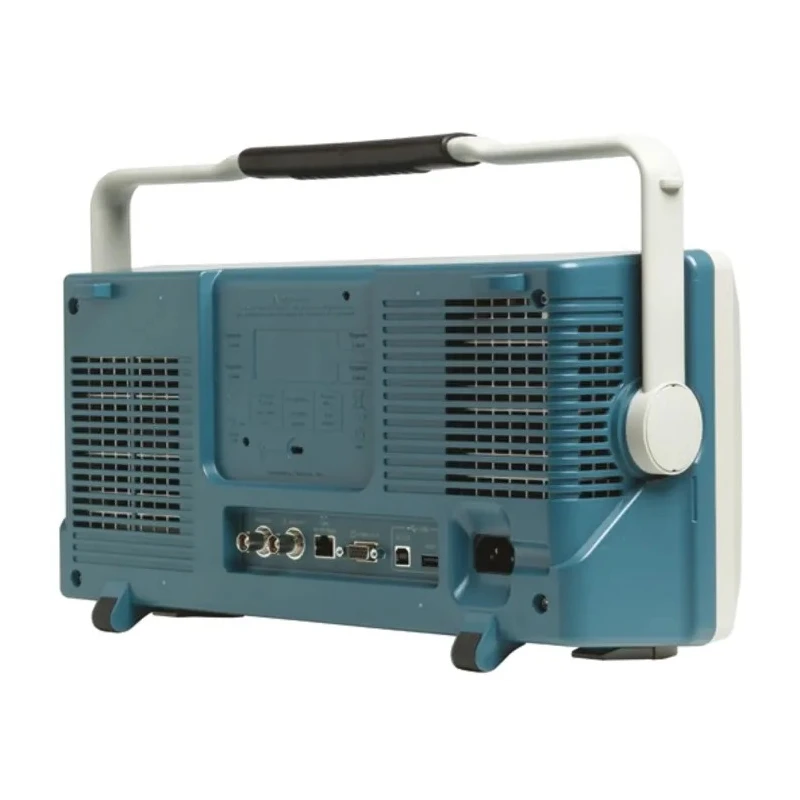

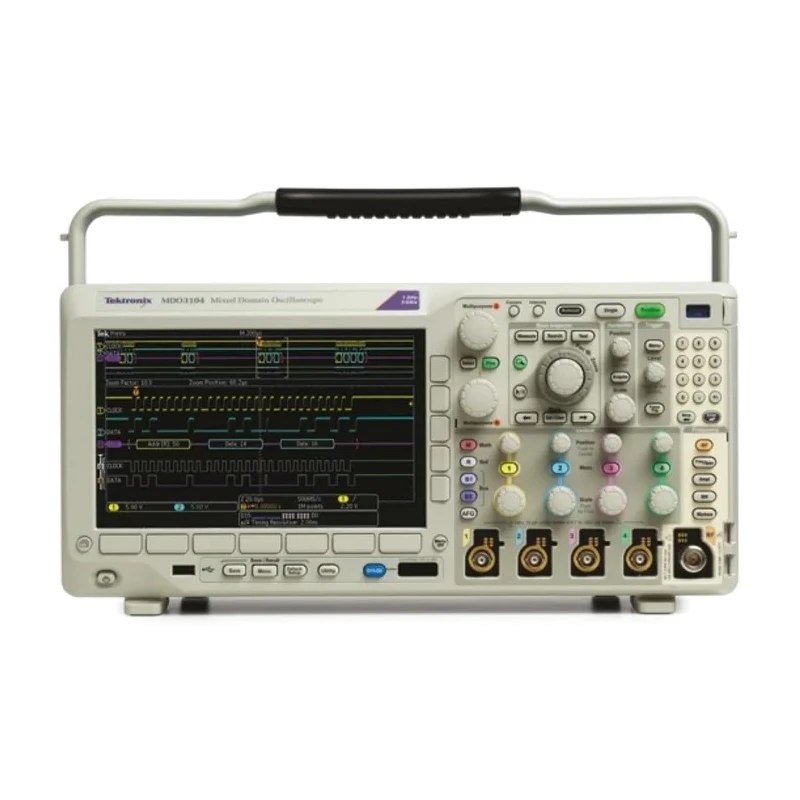

Tektronix 350 MHz Bench Mixed Domain Oscilloscope 4 Channels 9 Inch Display MDO3000

Tektronix MDO3000 Series 350 MHz Bench Mixed Domain Oscilloscope Model MDO3000 is a high-performance instrument featuring 4 analogue channels and a 9 inch TFT LCD display, designed for detailed electronic signal analysis.

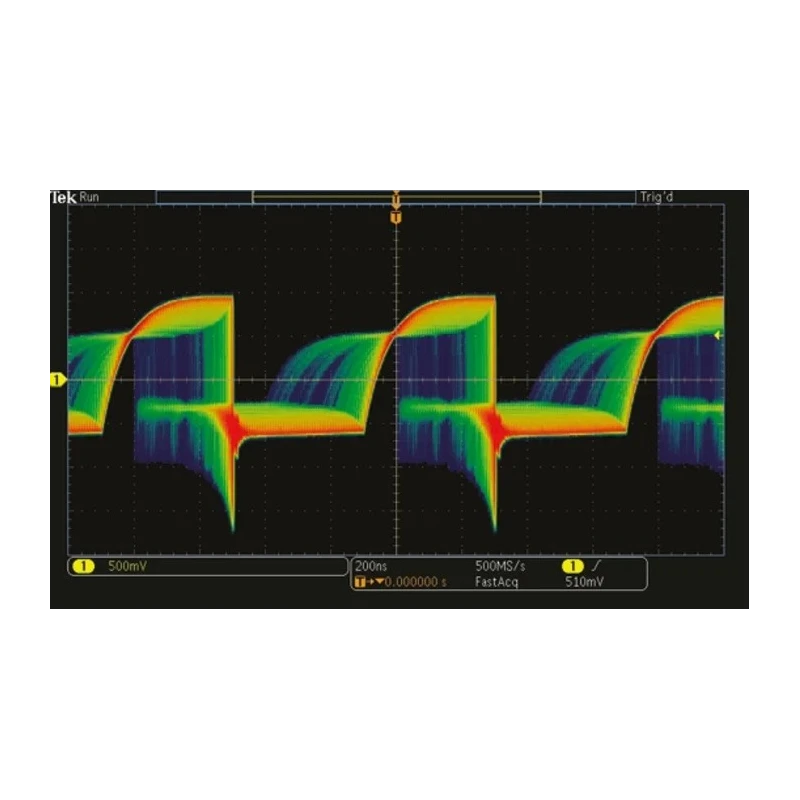

This oscilloscope integrates multi-functional tools including a basic spectrum analyser, wave inspector navigation, MSO capabilities, serial and parallel bus triggering and analysis, as well as a digital voltmeter. It enables precise waveform capture with a 10 million points memory depth per channel and a high sampling rate of 2.5 GSa/s, supporting rapid detection of signal anomalies with FastAcq technology.

The device supports a wide range of communication interfaces such as CAN, LIN, RS232, RS422, RS485, SPI, UART, and USB, making it versatile for embedded system debugging, power design testing, and EMI troubleshooting. The oscilloscope also offers 33 automated measurements and waveform histograms to simplify complex waveform analysis.

Operating in ambient temperatures from -10°C to 55°C, the oscilloscope ensures reliable performance in various industrial, educational, and manufacturing environments. The safety category voltage rating is 300 V, and the product complies with RoHS standards.

Package contents include passive voltage probes TPP0500B (one per analogue channel), an N-to-BNC adapter, power cord, accessory bag, documentation CD, OpenChoice desktop software, printed installation and safety instructions, and a calibration certificate.

This oscilloscope features a 350 MHz bandwidth and 4 analogue input channels. It has a 9 inch WVGA widescreen colour TFT LCD display for clear waveform visualization. The memory depth is 10 million points per channel for detailed waveform analysis.

Supports multiple interfaces including CAN, LIN, RS232, RS422, RS485, SPI, UART, and USB. Includes automated trigger and analysis along with spectrum analyser and digital voltmeter functions. Sampling rate is 2.5 GSa/s with a rise time of 1 ns and vertical resolution of 8 bit.

Operating temperature ranges from -10°C to 55°C suitable for various industrial environments. Compliant with RoHS standards and rated for 300 V safety category voltage. Applications include embedded design, power design, EMI troubleshooting, education, and manufacturing test/troubleshooting.

The package contains passive voltage probes for each analogue channel, N-to-BNC adapter, power cord, accessory bag, documentation, and calibration certificate.

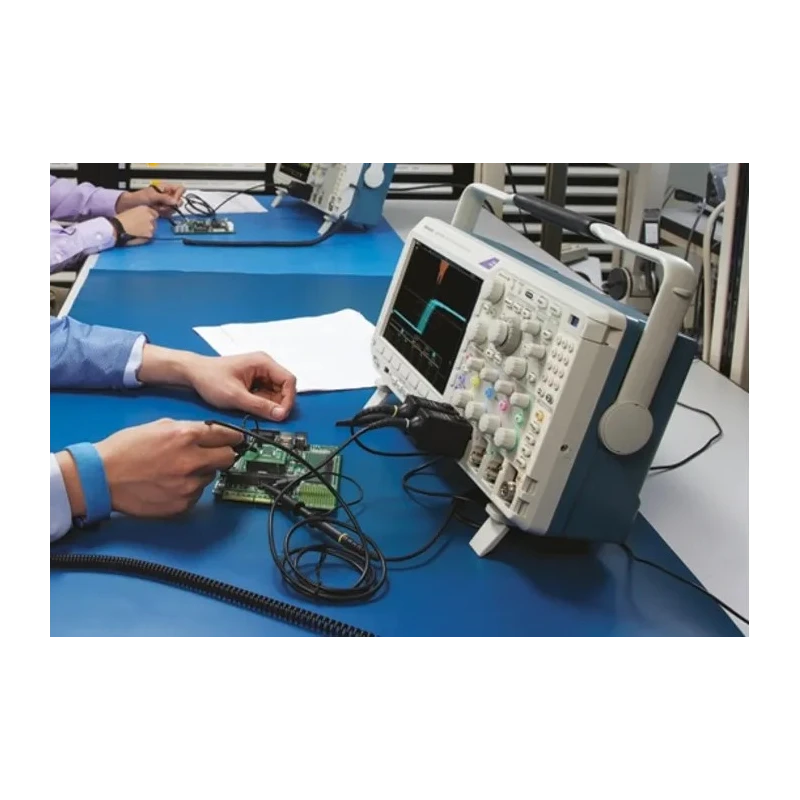

Industrial use cases for this oscilloscope include electronics development, embedded system debugging, signal integrity testing, EMI compliance testing, and educational laboratory measurements. The instrument is suited for applications in industrial manufacturing, power electronics development, and research laboratories.
