Tektronix Oscilloscope Probe Current Type 50 MHz BNC Connector TCP2020

Free Delivery in India | Lowest Global Shipping Charges

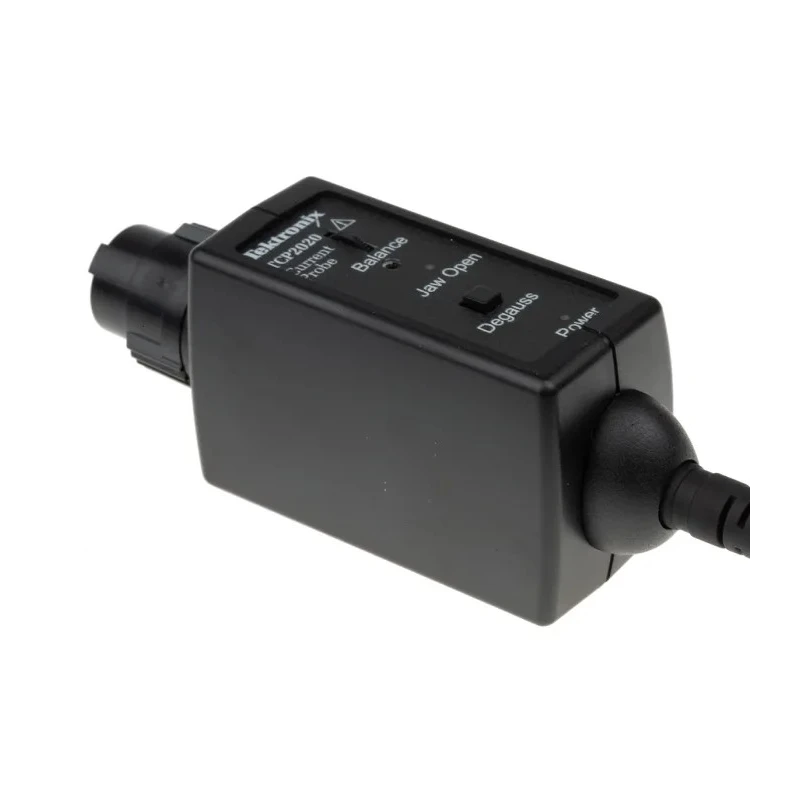

Tektronix Oscilloscope Probe Current Type 50 MHz BNC Connector TCP2020

Name: Tektronix Oscilloscope Probe Current Type 50 MHz BNC Connector TCP2020
Brand: TEKTRONIX
SKU: 372368
Price: 5988.01 USD
Availability: InStock



Category Oscilloscope Probe Brand TEKTRONIX Condition New

Specifications

Country of Origin	China
Brand	Tektronix
Model	TCP2020
Connector Type	BNC
Bandwidth	50MHz
Series	TCP
Probe type	Current
Rise Time	7ns
Number of Probes	1
Safety Category Level	CAT II
Safety Category Voltage	150V
Tektronix TCP202 Oscilloscope Probe, AC/DC Type, 50MHzBrand	Tektronix

Key Features

Measures AC/DC currents with high precision and low noise.
Bandwidth extends from DC up to 50 MHz for versatile applications.
Compact core jaw diameter of 5 mm enables easy testing of small conductors.
Supports currents up to 20 A RMS and 100 A peak pulse.
Includes probe ground lead, nylon carrying case, and instruction manual.
Equipped with degauss button and thumbwheel for DC offset adjustment.
Compatible with oscilloscopes and instruments having >100 kΩ input termination.
Ideal for applications in power supplies, semiconductor devices, and industrial electronics.

Product Description

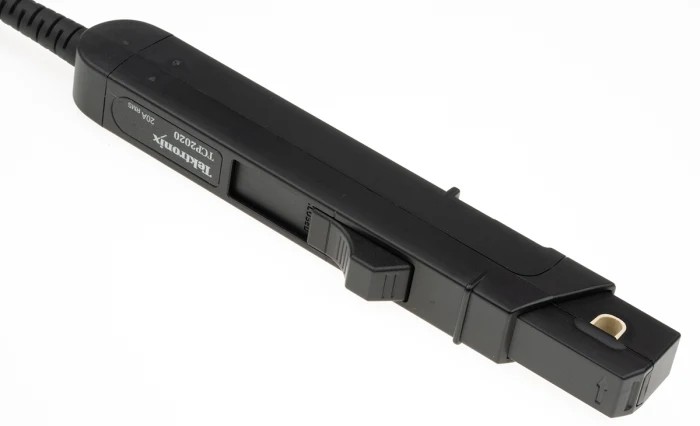

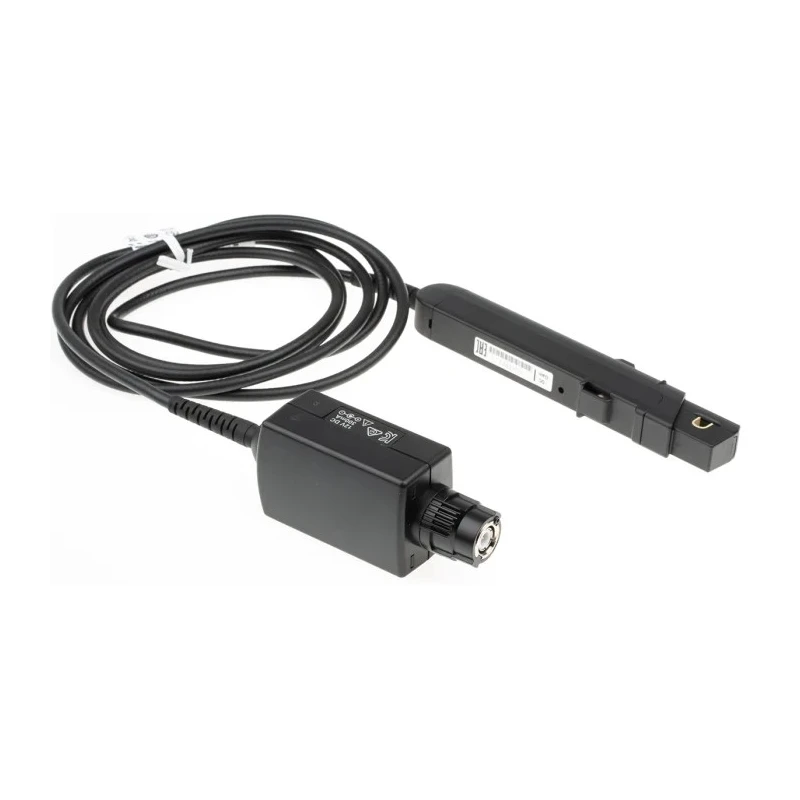

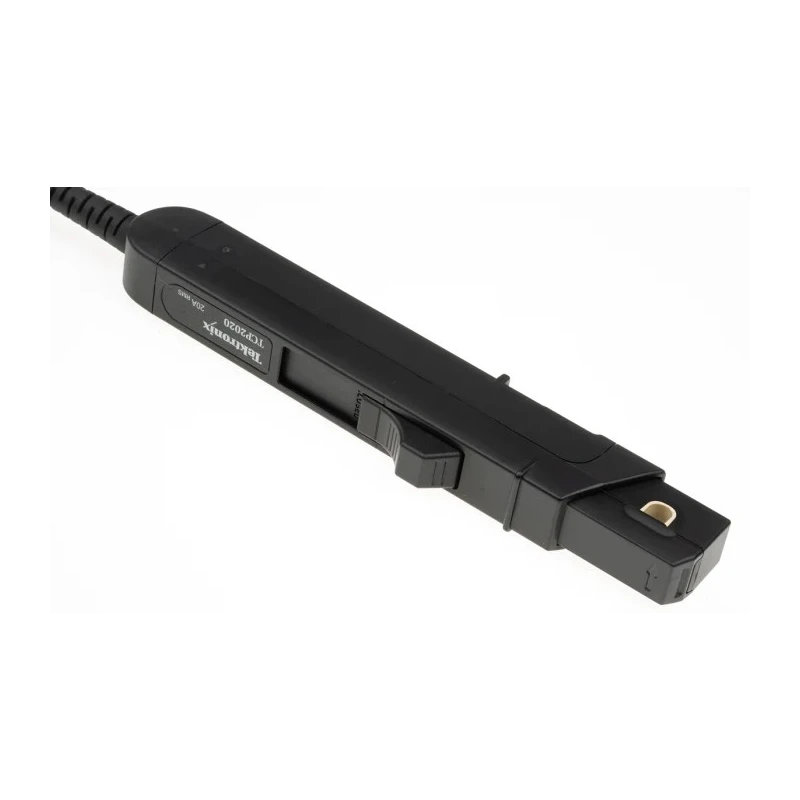

Tektronix TCP2020 Oscilloscope Probe is a high-performance, easy-to-use current probe designed for precise AC/DC current measurements with bandwidth of 50 MHz. Featuring a durable split-core construction and a compact 5 mm core jaw diameter, this probe is suitable for connecting to a variety of oscilloscopes using its standard BNC output connector.

The TCP2020 offers excellent accuracy with typically less than 1% DC gain error and low noise performance, along with DC drift compensation using an integrated degauss button and adjustable thumbwheel. It supports measuring currents as low as 10 mA per division, with maximum currents of 20 A RMS and 100 A peak pulse, ensuring reliability in demanding testing environments.

This probe includes a 6-inch (152.4 mm) probe ground lead, a nylon carrying case for portability and protection, and an instruction manual in English for easy setup and use. It is ideal for use in industrial electronics, power supplies, semiconductor device testing, motor drives, mobile communications, and transportation systems.

The probe complies with CAT II safety standards and is rated for 150 V category voltage, making it suitable for medium-energy electrical environments. Its BNC connector enables easy connection to oscilloscopes and other measurement equipment requiring input terminations greater than 100 kΩ.

Measures AC and DC currents with high accuracy and low noise. Bandwidth from DC to 50 MHz for broad frequency response. Small 5 mm core jaw for accessing compact circuits. Maximum current rating of 20 A RMS and 100 A peak pulse.

Includes ground lead, carrying case, and instruction manual. Degauss button and thumbwheel for DC offset adjustment. BNC connector compatible with standard oscilloscope inputs. Applies to testing in power supplies, industrial, and communication sectors.

CAT II 150 V safety category for reliable operation.

The Tektronix TCP2020 Oscilloscope Probe is an essential tool for industrial, laboratory, construction, and manufacturing applications requiring precise current measurement. Explore more oscilloscopes and probes in EnvMart’s measuring and testing instruments category.
