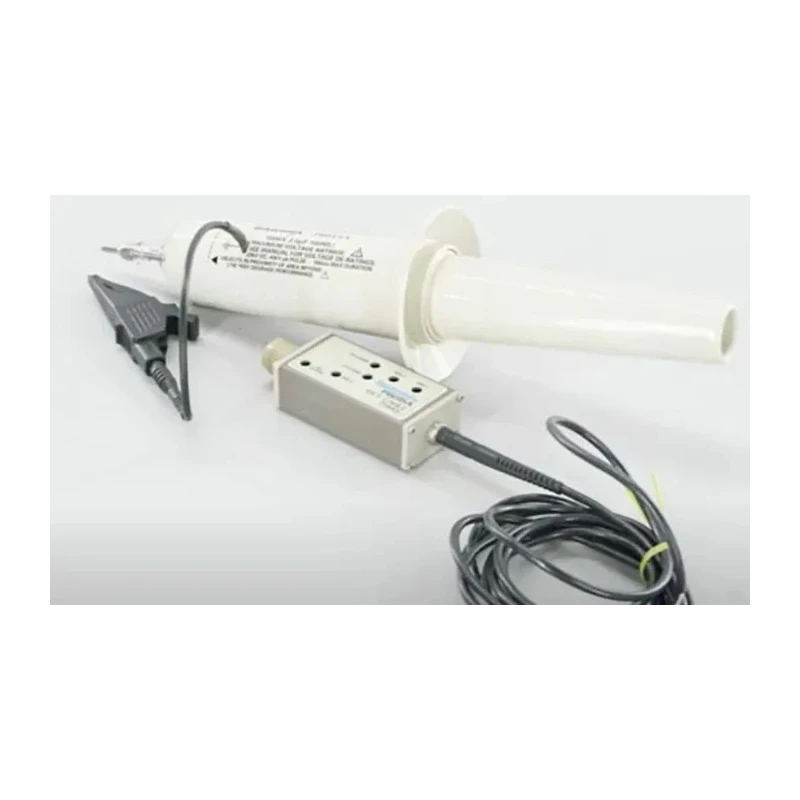

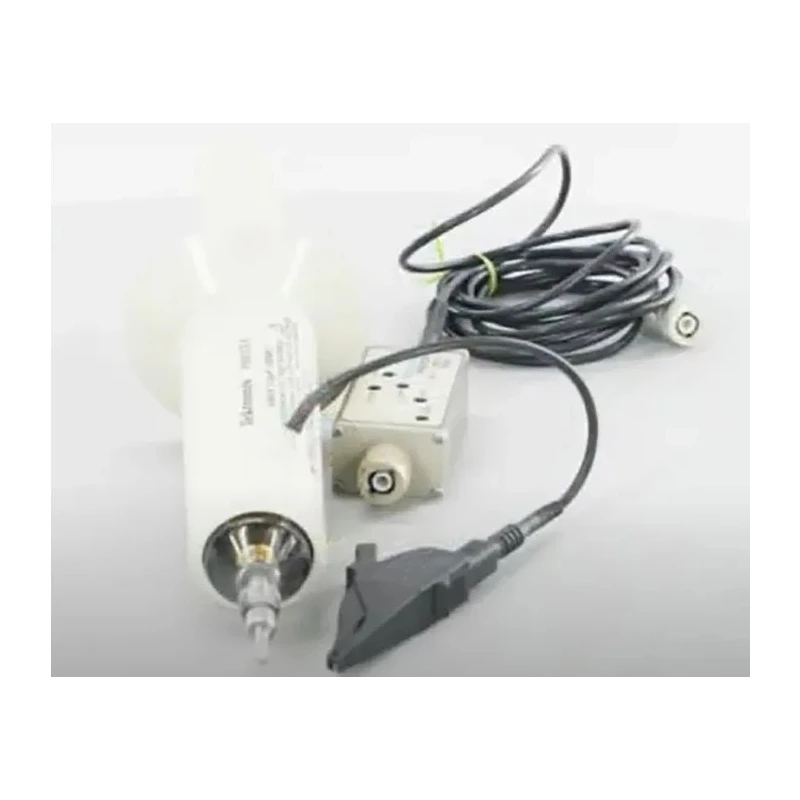

Tektronix P600 Series High Voltage Oscilloscope Probe, Voltage Type, 75 MHz Bandwidth, 1000:1 Attenuation, BNC P6015A

Free Delivery in India | Lowest Global Shipping Charges

Tektronix P600 Series High Voltage Oscilloscope Probe, Voltage Type, 75 MHz Bandwidth, 1000:1 Attenuation, BNC P6015A

Name: Tektronix P600 Series High Voltage Oscilloscope Probe, Voltage Type, 75 MHz Bandwidth, 1000:1 Attenuation, BNC P6015A
Brand: TEKTRONIX
SKU: 372367
Price: 5358.88 USD
Availability: InStock



Category Oscilloscope Probe Brand TEKTRONIX Condition New

Specifications

Country of Origin	China
Brand	Tektronix
Model	P6015A
Connector Type	BNC
Bandwidth	75MHz
Series	P600
Probe type	Voltage
Rise Time	4ns
Attenuation	1000:1
Number of Probes	1
Standards/Approvals	ISO, CE
Safety Category Level	CAT II
Safety Category Voltage	1kV
Maximum Common Mode Input Voltage	20kV
Attenuation ratio is 1	1000
Attenuation 1000	1

Key Features

Operates with a bandwidth of 75 MHz for high-frequency signal capture.
Equipped with a BNC connector for reliable connection.
Compatible with Tektronix P600 series and TDS1000 oscilloscopes.

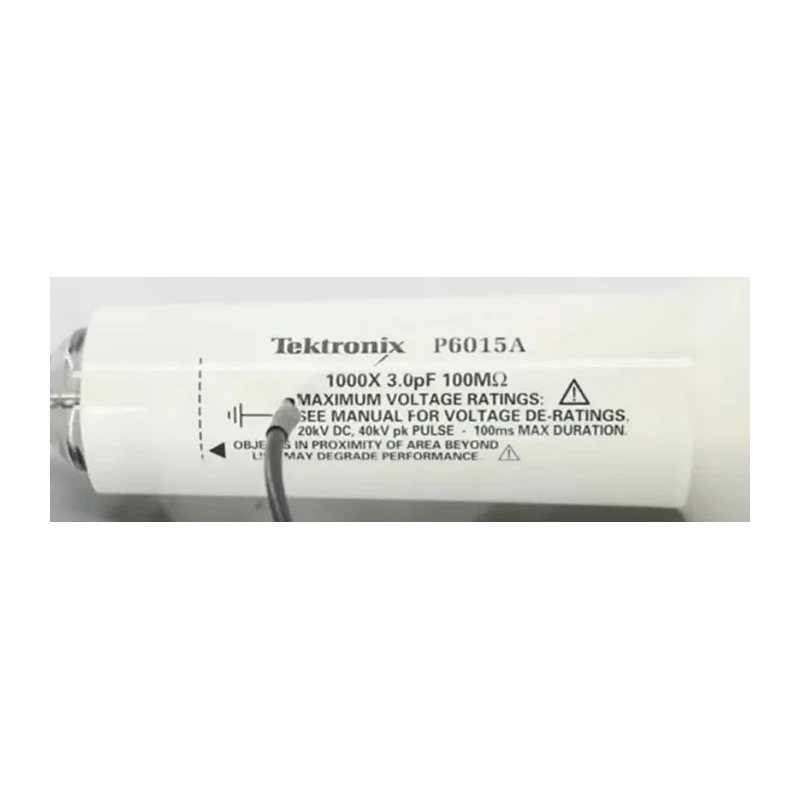

Capable of measuring DC voltages up to 20 kVrms and pulse voltages up to 40 kV peak.
Employs environmentally safe silicone dielectric requiring no maintenance.
Safe for applications with maximum common mode input voltage of ±20 kV.

Product Description

Tektronix P6015A High Voltage Oscilloscope Probe is part of the P600 Series designed for demanding voltage measurements up to 20 kVrms with bandwidth of 75 MHz. This voltage-type probe offers an attenuation ratio of 1000:1, making it suitable for measuring high voltages safely without compromising signal integrity. It includes a BNC connector for secure, low-noise connection to oscilloscopes.

The probe features an input impedance of 1 MΩ with 20 pF input capacitance and has a fast rise time of 4 ns that enables capturing rapid voltage transients and pulses up to 40 kV (peak for 100 ms duration). Its wide compensation range (7 pF to 49 pF) makes it adaptable across various instruments. The probe's durable, environmentally safe silicone dielectric eliminates the need for refilling, ensuring reliable long-term use.

Applications include power supply design, motor drive testing, electronic ballast diagnostics, power semiconductor evaluation, switch mode control systems, UPS system testing, and power converter measurements. It is CE and ISO certified for safety and performance compliance.

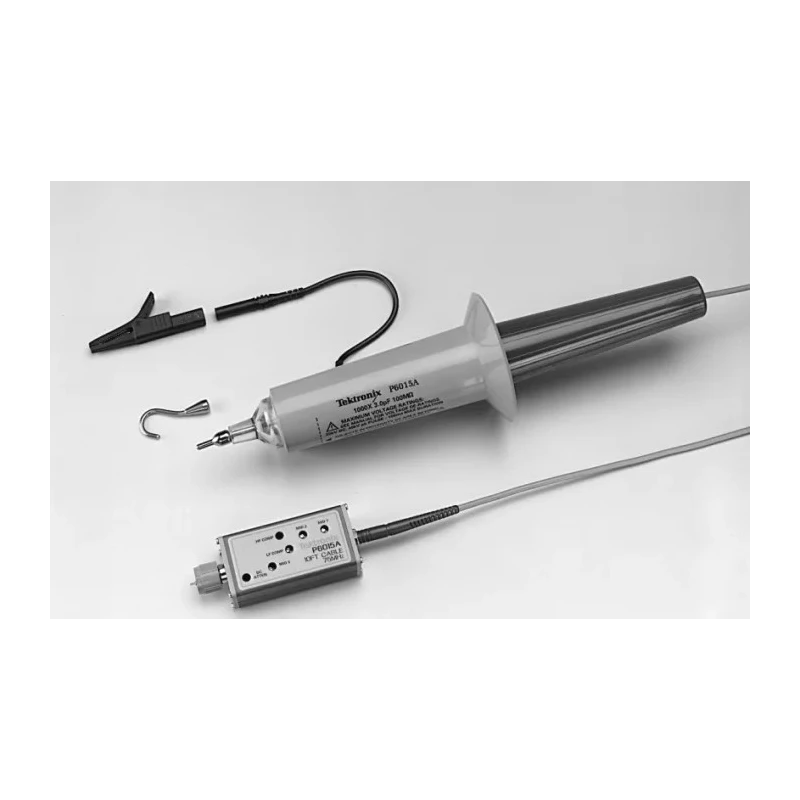

Specifically designed for ground-referenced high voltage measurements, the Tektronix P6015A probe is compatible with TDS1000 series oscilloscopes and complements Tektronix current probes such as TCP303 and TCP305. The package includes a hook probe tip, banana plug tip, crocodile clip, ground lead, carrying case, and instruction manual for comprehensive use.

Operates with a bandwidth of 75 MHz for high-frequency signal capture. Features a voltage attenuation ratio of 1000:1 for safe high-voltage measurement. Equipped with a BNC connector for reliable connection. Compatible with Tektronix P600 series and TDS1000 oscilloscopes.

Capable of measuring DC voltages up to 20 kVrms and pulse voltages up to 40 kV peak. Employs environmentally safe silicone dielectric requiring no maintenance. Safe for applications with maximum common mode input voltage of ±20 kV.
