STMicroelectronics 25 V 10 A Schottky Diode Single Configuration 2-Pin Through Hole TO-220AC STPS10L25D

Free Delivery in India | Lowest Global Shipping Charges

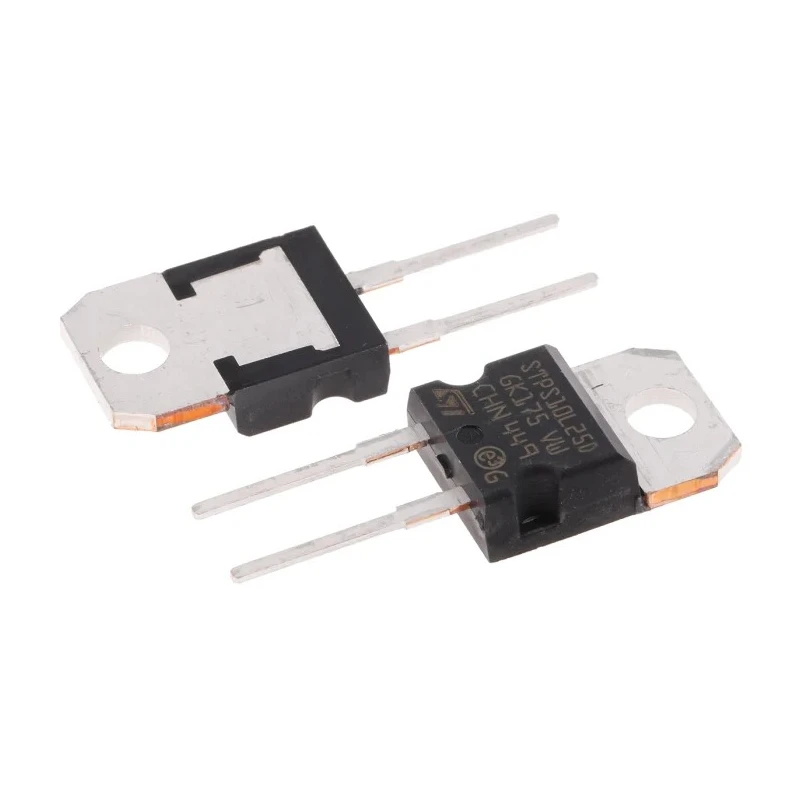

STMicroelectronics 25 V 10 A Schottky Diode Single Configuration 2-Pin Through Hole TO-220AC STPS10L25D

Name: STMicroelectronics 25 V 10 A Schottky Diode Single Configuration 2-Pin Through Hole TO-220AC STPS10L25D
Brand: STMicroelectronics
SKU: 372220
Price: 1.14 USD
Availability: InStock



Category Schottky Diode Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Diameter	0.93mm
Brand	STMicroelectronics
Height	15.75mm
Length	10.4mm
Model	STPS10L25D
Width	4.6mm
Mount Type	Through Hole
Series	STPS10L25
Maximum Operating Temperature	150°C
Package Type	TO-220AC
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	10A
Peak Reverse Repetitive Voltage Vrrm	25V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	260mA
Peak Non-Repetitive Forward Surge Current Ifsm	200A
Maximum Forward Voltage Vf	350mV

Key Features

High efficiency Schottky rectifier suitable for fast switching applications.
Maximum continuous forward current of 10 Amperes ensures robust performance.
Compact TO-220AC through-hole mounting type allowing easy PCB integration.
Maximum forward voltage of 350 millivolts contributes to low power loss.
Wide operating temperature range from -65°C to 150°C supports harsh industrial environments.
Single diode configuration with 2 pins for simple circuit design.
Peak reverse current of 260 milliamperes guarantees reliability under transient conditions.
Peak non-repetitive forward surge current up to 200 Amperes for transient load protection.

Product Description

STMicroelectronics STPS10L25D is a high performance Schottky Diode designed for industrial and electronic applications requiring rapid switching and high efficiency rectification. This diode has a maximum continuous forward current rating of 10 A and a peak reverse repetitive voltage of 25 V, making it suitable for power management circuits, rectifiers, and voltage clamping in power supplies.

The component features a through-hole mount style in a TO-220AC package with a compact 2-pin design. It provides a low forward voltage drop of 350 mV which reduces power dissipation and improves overall system efficiency.

Designed to operate reliably over a broad temperature range from -65°C to 150°C, the STPS10L25D diode is ideal for demanding environments such as industrial controls, power converters, and automotive electronics.

This diode supports a peak non-repetitive forward surge current of 200 A and a peak reverse current of 260 mA, ensuring robust transient handling capability. Its single diode configuration with a pin count of 2 simplifies circuit implementation and integration.

High efficiency Schottky rectifier suitable for fast switching applications. Maximum continuous forward current of 10 Amperes ensures robust performance. Compact TO-220AC through-hole mounting type allowing easy PCB integration.

Maximum forward voltage of 350 millivolts contributes to low power loss. Wide operating temperature range from -65°C to 150°C supports harsh industrial environments. Single diode configuration with 2 pins for simple circuit design.

Peak reverse current of 260 milliamperes guarantees reliability under transient conditions. Peak non-repetitive forward surge current up to 200 Amperes for transient load protection. Physical dimensions: Length 10.4 mm, Width 4.6 mm, Height 15.75 mm, Diameter 0.93 mm.

This product is primarily used in industrial, manufacturing, automotive, and electronics sectors for applications requiring efficient rectification and power management. Explore more high-quality semiconductor components at EnvMart for all your electronic project needs.
