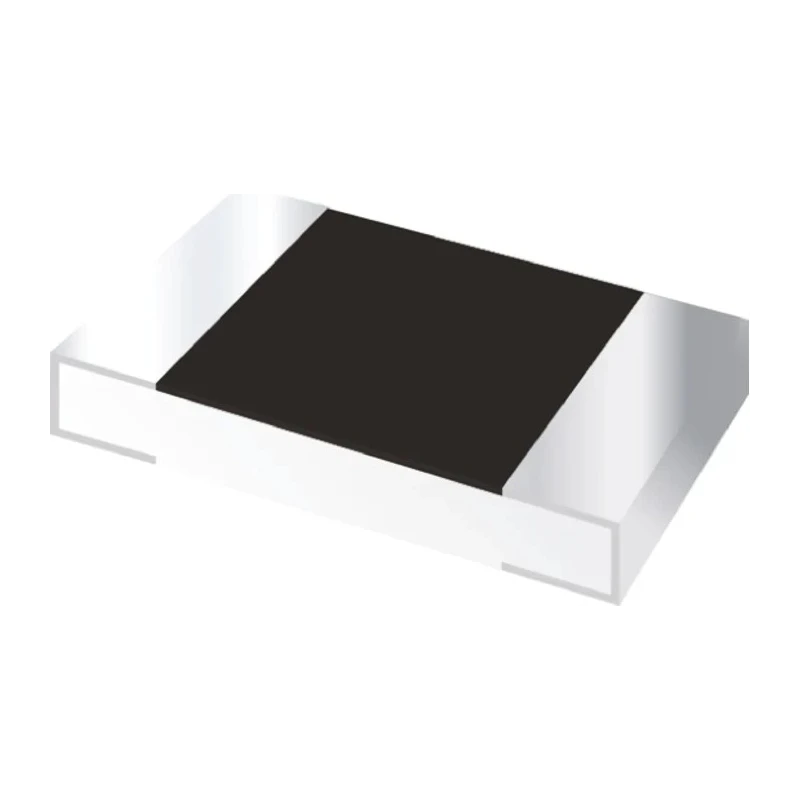

Bourns 1-Element Bi-Directional ESD Protection Diode, Surface Mount, MLC Package, 2-Pin, Clamping Voltage 25V CGA0402MLC-05G

Free Delivery in India | Lowest Global Shipping Charges

Bourns 1-Element Bi-Directional ESD Protection Diode, Surface Mount, MLC Package, 2-Pin, Clamping Voltage 25V CGA0402MLC-05G

Name: Bourns 1-Element Bi-Directional ESD Protection Diode, Surface Mount, MLC Package, 2-Pin, Clamping Voltage 25V CGA0402MLC-05G
Brand: BOURNS
SKU: 371982
Price: 0.26 USD
Availability: InStock



Category ESD Protection Diode Brand BOURNS Condition New

Specifications

Country of Origin	India
Brand	Bourns
Height	0.36mm
Length	1mm
Model	CGA0402MLC-05G
Width	0.5mm
Mount Type	Surface
Series	CGA
Maximum Operating Temperature	85°C
Package Type	MLC
Minimum Operating Temperature	-40°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	25V
Diode Configuration	Single
Direction Type	Bi-Directional
Maximum Reverse Leakage Current	5nA

Key Features

Provides bi-directional ESD protection for automotive and industrial applications.
Features a single diode configuration with low maximum reverse leakage current.
Operates within a temperature range from -40°C to 85°C.
Small 0402 package with dimensions 1mm length, 0.5mm width, and 0.36mm height.
Meets IEC 61000-4-2 Level 4 ESD protection standards.
Low capacitance minimizes insertion loss for high-speed circuit protection.
Suitable for use in camera links, sensors, GPS, USB 3.0, and antenna circuits.
Surface mount technology allows efficient PCB assembly.

Product Description

Bourns CGA0402MLC-05G is a 1-element bi-directional ESD Protection Diode designed to safeguard sensitive automotive and industrial electronics from electrostatic discharge events. Housed in an ultra-compact 0402 MLC surface mount package with dimensions of 1mm length, 0.5mm width, and 0.36mm height, this diode provides effective protection while occupying minimal PCB real estate.

Operating over a broad temperature range from -40°C to 85°C and featuring a low maximum reverse leakage current of 5nA, this diode ensures reliable performance in demanding environments. Its bidirectional configuration and clamping voltage of 25V make it ideal for protecting camera links, touchscreens, sensors, GPS devices, USB 3.0 interfaces, and antenna circuits.

The device is part of Bourns ChipGuard® Automotive series, which is AEC-Q200 qualified for automotive-grade reliability. This series is optimized to meet IEC 61000-4-2 Level 4 ESD protection standards, making it suitable for high-speed communication buses and sensitive sensor inputs requiring minimal insertion loss due to low capacitance.

Bi-directional ESD suppression for sensitive electronics. Surface mount MLC package supports automated assembly. Wide operating temperature range of -40°C to 85°C. Low clamping voltage of 25V ensures effective protection.

Low leakage current of 5nA minimizes power loss. Compact size fits space-constrained designs. Applications include automotive electronics and high-speed data lines. 1 element per chip provides precise suppression performance.

This diode is essential for enhancing the durability and robustness of circuits in industrial, automotive, and commercial electronic applications. It offers a reliable ESD protection solution that supports the longevity and function of sensitive semiconductor components.

Explore the range of Bourns CGA-MLC series for superior ESD protection at EnvMart, your reliable platform for industrial and electronic components.
