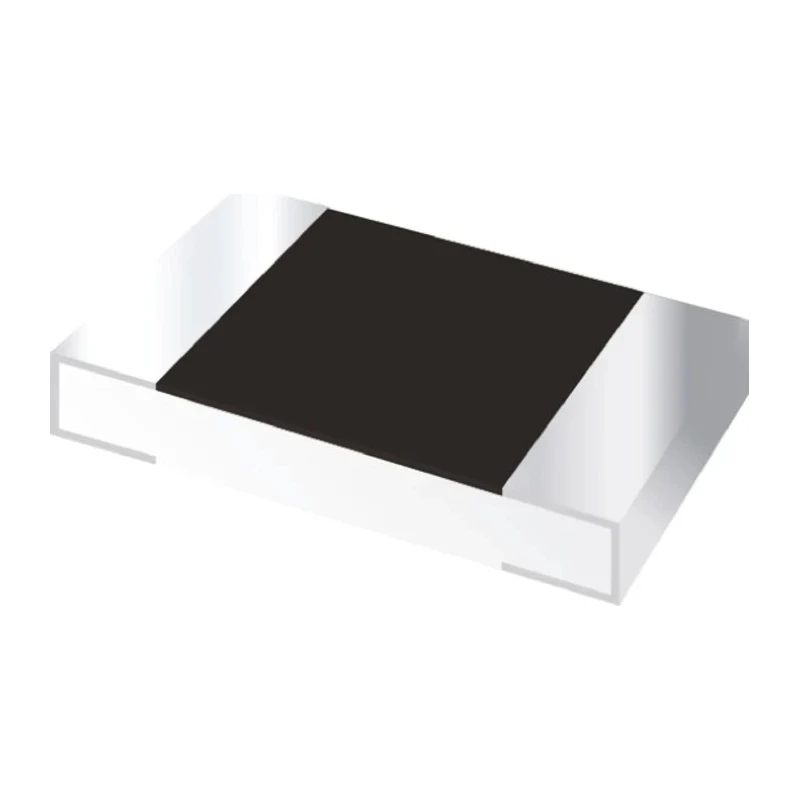

Bourns 1-Element Bi-Directional ESD Protection Diode, 2-Pin Surface Mount MLC Package CGA0402MLC-05G

Free Delivery in India | Lowest Global Shipping Charges

Bourns 1-Element Bi-Directional ESD Protection Diode, 2-Pin Surface Mount MLC Package CGA0402MLC-05G

Name: Bourns 1-Element Bi-Directional ESD Protection Diode, 2-Pin Surface Mount MLC Package CGA0402MLC-05G
Brand: BOURNS
SKU: 371976
Price: 0.22 USD
Availability: InStock



Category ESD Protection Diode Brand BOURNS Condition New

Specifications

Country of Origin	India
Brand	Bourns
Height	0.36mm
Length	1mm
Model	CGA0402MLC-05G
Width	0.5mm
Mount Type	Surface
Series	CGA
Maximum Operating Temperature	85°C
Package Type	MLC
Minimum Operating Temperature	-40°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	25V
Diode Configuration	Single
Direction Type	Bi-Directional
Maximum Reverse Leakage Current	5nA

Key Features

This device is designed for automotive and industrial electronics to protect sensitive circuits against ESD events.
It supports a clamping voltage of 25V, ensuring effective transient suppression.
The diode features low leakage current of 5nA and operates within a temperature range of -40°C to 85°C.
Its ultra-small 0402 footprint enables integration in compact PCB layouts.
Suitable for protecting sensors, camera links, touchscreen interfaces, GPS antennas, and high-speed communication buses.
Provides high reliability and fast response to electrostatic events as per IEC 61000-4-2 Level 4 standard.
Surface mount mount type simplifies automated assembly and improves board density.

Product Description

Bourns CGA0402MLC-05G is a 1-element bi-directional electrostatic discharge (ESD) protection diode in a 2-pin MLC surface mount package. This ESD Protection Diode is engineered to safeguard sensitive automotive and industrial electronic devices from electrostatic discharges according to the IEC 61000-4-2 Level 4 standard.

The device features a low clamping voltage of 25V to efficiently suppress high voltage transient surges and a very low maximum reverse leakage current of 5nA, minimizing power loss and interference. It functions reliably across a wide operating temperature range from -40°C to 85°C, fitting harsh environmental requirements.

The ultra-compact 0402 package dimensions (1mm length, 0.5mm width, 0.36mm height) enable its use in space-constrained applications on densely populated PCBs. It has a single diode configuration with bi-directional direction type and is mounted as a surface mount component for streamlined assembly processes.

This diode from the CGA series is ideal for protecting sensitive electronic interfaces such as camera links, sensor inputs, touchscreen connections, GPS and antenna circuits, as well as USB 3.0 and other high-speed communication buses against damaging voltage spikes and electrostatic discharge events.

Bi-directional ESD protection for robust transient suppression. Small 0402 MLC surface mount package for space-efficient PCB design. Wide temperature operation from -40°C to 85°C suits harsh automotive environments. Low leakage current reduces power consumption and maintains signal integrity.

Compliant with automotive-grade quality and reliability standards. Protects a variety of sensitive electronics in automotive, industrial, and consumer applications. Facilitates reliable high-speed data and sensor interface protection.

This Bourns CGA0402MLC-05G diode offers an effective and compact ESD protection solution, contributing to enhanced reliability in automotive and industrial electronics. Check EnvMart’s Electronics & Electricals category for more Bourns semiconductor protection devices.
