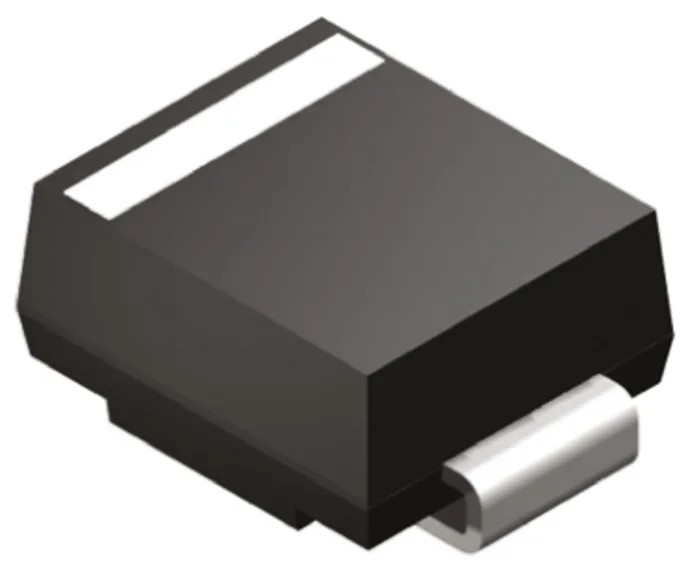

STMicroelectronics 200 V 10 A Surface Mount Schottky Diode DO-214AA STPS2200UF
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.1mm |
| Length | 4.6mm |
| Model | STPS2200UF |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | STPS2200 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2.5mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 0.58V |
Key Features
- Supports maximum continuous forward current of 10 A for high-current applications.
- Peak reverse repetitive voltage rating of 200 V ensures reliable blocking capability.
- Low maximum forward voltage drop of 0.58 V reduces power loss during conduction.
- Compact DO-214AA surface mount package with dimensions 4.6 mm length and 3.95 mm width.
- Wide operating temperature range from -40°C to 175°C for varied industrial environments.
- Peak non-repetitive forward surge current rating of 100 A for transient handling.
- Two-pin single diode configuration simplifies PCB layout design.
- Ideal for power supply, battery charging, and DC/DC converter applications.
Product Description
STMicroelectronics STPS2200UF Schottky Diode is a high-performance surface mount semiconductor device designed to deliver efficient power rectification with low forward voltage drop. Housed in a rugged DO-214AA package measuring 4.6 mm in length, 3.95 mm in width, and 1.1 mm in height, this diode supports up to 10 A of continuous forward current and a peak reverse voltage rating of 200 V, enabling its use in a wide variety of power electronics applications.
The diode's low forward voltage of 0.58 V ensures minimal power dissipation, helping enhance overall system efficiency in power supplies, battery chargers, and DC to DC converters. It supports a peak non-repetitive forward surge current of 100 A, allowing it to withstand transient current spikes without damage.
With a broad operating temperature range from -40°C to 175°C, the STPS2200UF is suitable for demanding industrial and automotive environments, although it is not qualified to specific automotive standards. The two-pin single diode configuration in the DO-214AA package provides an easy-to-handle footprint for surface mount PCB assembly.
This diode complies with standard semiconductor industry requirements and is designed for seamless integration into electronic devices requiring efficient Schottky barrier rectification.
Maximum continuous forward current: 10 A. Peak reverse repetitive voltage: 200 V. Maximum forward voltage drop: 0.58 V. Operating temperature range: -40°C to 175°C. Peak non-repetitive forward surge current: 100 A. Package type: DO-214AA surface mount.
Length: 4.6 mm, Width: 3.95 mm, Height: 1.1 mm. Single diode, 2-pin configuration.
If you are sourcing high-quality Schottky Diodes for power electronics, STMicroelectronics offers reliable components like the STPS2200UF to meet your industrial and commercial requirements. Explore more semiconductor and diode products in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STMicroelectronics STPS2200UF supports a maximum continuous forward current of 10 A.
This model has a peak reverse repetitive voltage rating of 200 V, ensuring reliable blocking capability.
The maximum forward voltage drop is 0.58 V, which helps reduce power loss during conduction.
The DO-214AA package measures 4.6 mm in length, 3.95 mm in width, and 1.1 mm in height.
The diode operates within a temperature range of -40°C to 175°C, making it suitable for various industrial environments.
It has a peak non-repetitive forward surge current rating of 100 A, allowing it to handle transient current spikes without damage.
This unit features a two-pin single diode configuration, simplifying PCB layout design.
It is a Schottky rectifier, designed for efficient power rectification with low forward voltage drop.
The peak reverse current is rated at 2.5 mA.
The diode is manufactured in India.
It is ideal for use in power supplies, battery charging, and DC/DC converter applications.
The series name of this diode is STPS2200.
