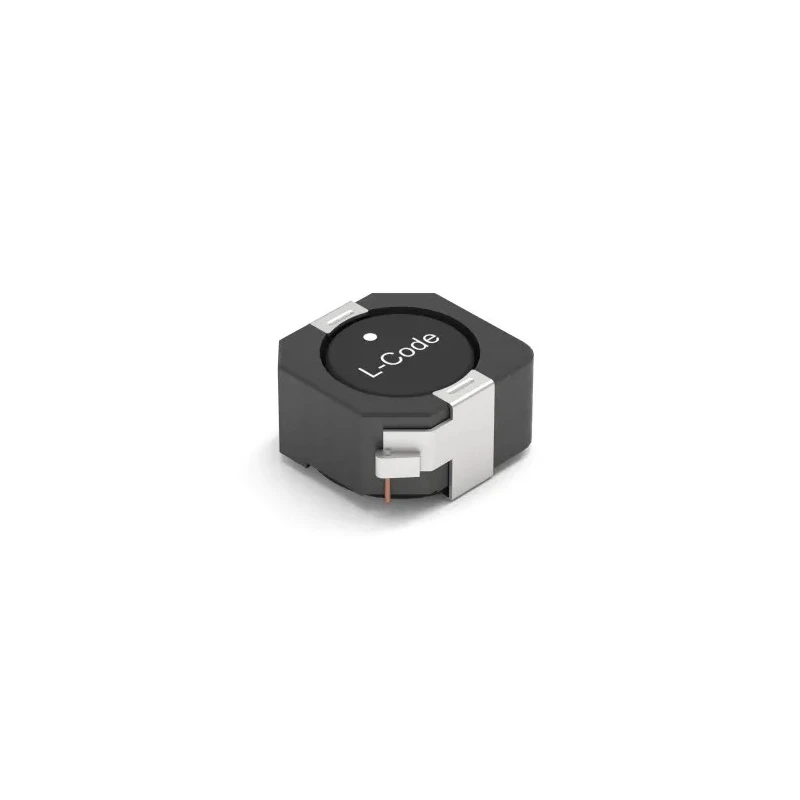

Wurth Elektronik WE-PD 1050 Shielded Wirewound Surface Mount Inductor 470μH ±20% 600mA 7447714471

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WE-PD 1050 Shielded Wirewound Surface Mount Inductor 470μH ±20% 600mA 7447714471

Name: Wurth Elektronik WE-PD 1050 Shielded Wirewound Surface Mount Inductor 470μH ±20% 600mA 7447714471
Brand: Wurth Elektronik
SKU: 370931
Price: 2.37 USD
Availability: InStock



Category Surface Mount Inductor Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik

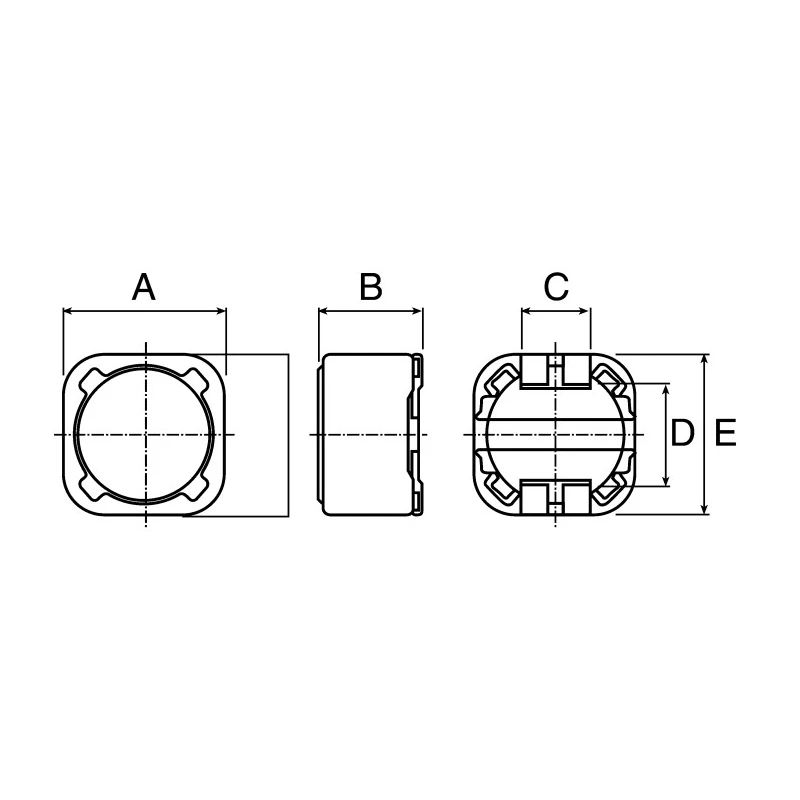

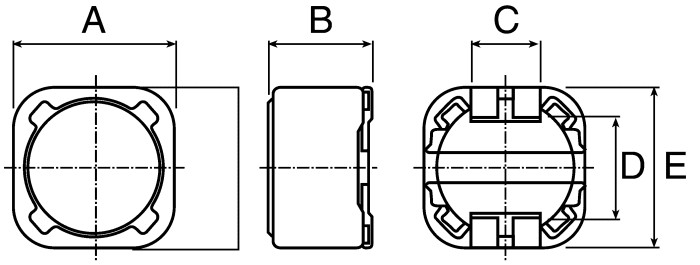

Height	5mm
Length	10mm
Depth	10mm
Packaging	Tape & Reel
Series	WE-PD
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Inductance	470μH
Standards/Approvals	RoHS
Package/Case	1050
Maximum DC Current	600mA
Maximum DC Resistance	1.1Ω
Inductance Tolerance	±20 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	2.5MHz
Inductor Construction	Wirewound
Automotive Standard	AEC-Q200

Key Features

Compact 1050 package size optimizes space for PCB mounting.
Magnetically shielded design reduces leakage field interference.
Operates within a temperature range of -40°C to 125°C reliably.
Maximum DC resistance of 1.1 ohms ensures low power loss.
Complies with AEC-Q200 automotive standard for enhanced reliability.
Supports a maximum self-resonant frequency of 2.5 MHz for high-frequency applications.
Constructed with durable wirewound technology for long-term stability.
Available in tape and reel packaging, suitable for automated assembly.

Product Description

Wurth Elektronik 7447714471 WE-PD series shielded wirewound surface mount inductor offers reliable performance with an inductance of 470μH ±20% and supports a maximum DC current of 600mA. The 1050 package size with 10mm length and 5mm height makes it ideal for space-constrained electronic applications.

This inductor is magnetically shielded to minimize leakage fields, making it suitable for switching regulators, integrated DC-DC converters, and high-efficiency power supplies operating above 86% efficiency. It conforms to the rigorous AEC-Q200 automotive standard ensuring durability in harsh environments.

The component incorporates wirewound construction, providing low DC resistance of 1.1 ohms and operational stability over a temperature range from -40°C to 125°C. Its maximum self-resonant frequency of 2.5MHz supports high-frequency circuit applications.

Packaged on tape and reel, this Surface Mount Inductor is excellent for automated PCB manufacturing. The termination style facilitates compact mounting on printed circuit boards.

Manufactured in China, it meets RoHS standards ensuring compliance with environmental and safety regulations. Typical use cases include power electronics in automotive, consumer electronics, and industrial devices requiring efficient magnetic components.

Compact 1050 package size for efficient PCB design. Magnetically shielded to reduce electromagnetic interference. High current capacity of 600mA with low resistance. Wide operating temperature range suitable for automotive environments.

Wirewound construction for superior inductance stability. Compliant with RoHS and automotive AEC-Q200 standards. Tape & reel packaging supports high-volume production. Max self-resonant frequency at 2.5 MHz provides high-frequency performance.

Surface mount termination style for easy assembly. Explore our Electronics & Electricals categories for an extensive range of inductors and surface mount components suited for diverse industrial and commercial applications.
