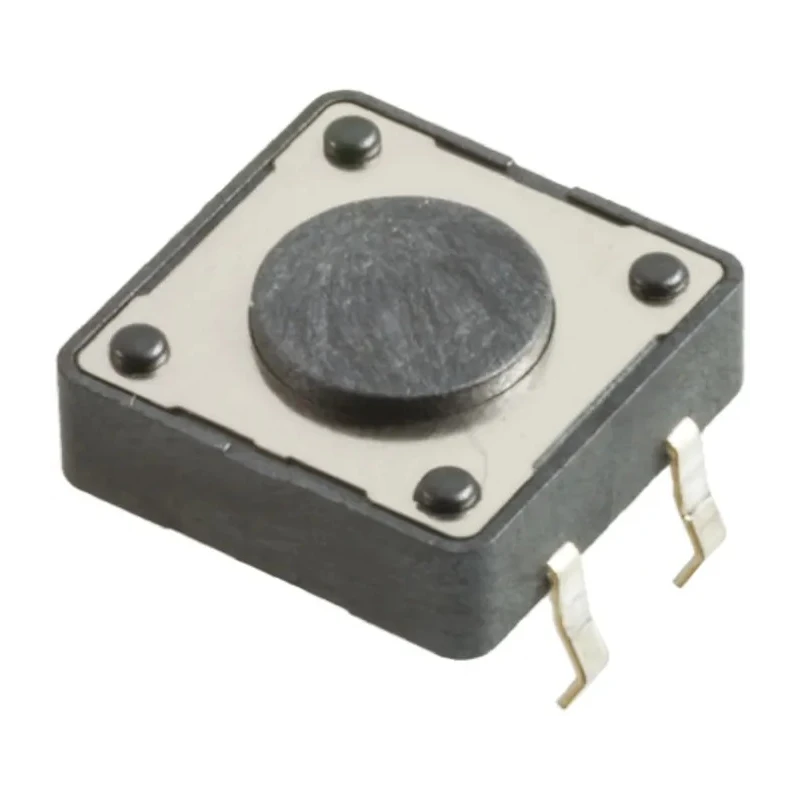

Wurth Elektronik Black Tactile Switch Button 5 mm SPST 50mA 12 V dc Through Hole 430476043716

Wurth Elektronik 430476043716 black tactile switch button 5 mm is a high-quality momentary SPST switch designed for through-hole mounting applications. It features a black actuator button with a precise 5 mm length and straight orientation ideal for compact electrical devices. The switch supports a contact DC voltage of 12 V and a contact current rating of 50mA, suitable for low power consumer electronics and automation systems.

The tactile switch is built with a stainless steel cover and contacts with silver cladding, providing robust durability and reliable electrical performance. This switch operates with an (On)-Off momentary action, delivering tactile feedback for user inputs.

Operating temperature ranges from -40°C to 85°C make it suitable for a variety of environmental conditions in industrial, laboratory, and commercial electrical equipment. The mechanical life of 500,000 cycles assures long-term dependable operation. The switch can withstand wave soldering processes at 260°C for up to 10 seconds, facilitating efficient assembly on printed circuit boards.

With compact dimensions of 12.5 mm length, 12 mm width, and 4.3 mm height, this tactile switch fits well within space-constrained designs. It complies with RoHS standards guaranteeing an environmentally friendly manufacturing process.

Features a black actuator button with a 5 mm length and straight orientation. Switch operates momentarily with an (On)-Off configuration. Constructed with stainless steel cover and silver cladding contacts for durability.

Rated for operation between -40°C and 85°C temperatures. Mechanical life expectancy of 500,000 cycles for reliable performance. Designed for wave soldering up to 260°C for 10 seconds maximum. Compact dimensions of 12.5 mm length, 12 mm width, and 4.3 mm height.

Complies with RoHS standards ensuring environmental safety. Ideal for applications in electrical automation and switch circuits.

This Tactile Switch serves well in industrial, electrical automation, laboratory, and commercial electronics applications requiring momentary contact switching. Its reliability and compact form factor make it a preferred choice for keypads, control panels, and interface devices. Browse the Electronics & Electricals category for additional industrial switches and components at EnvMart.
