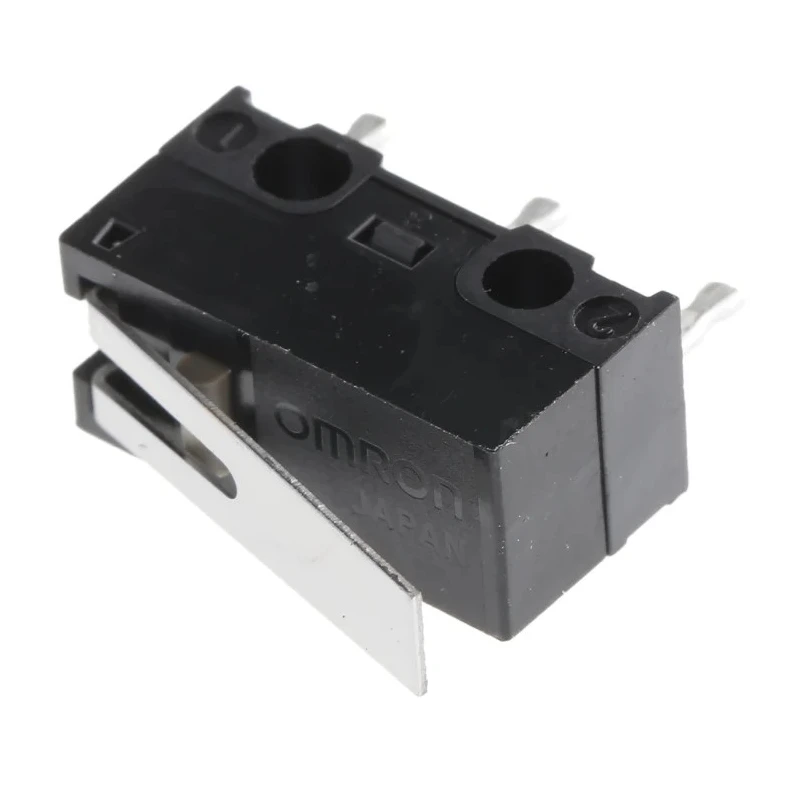

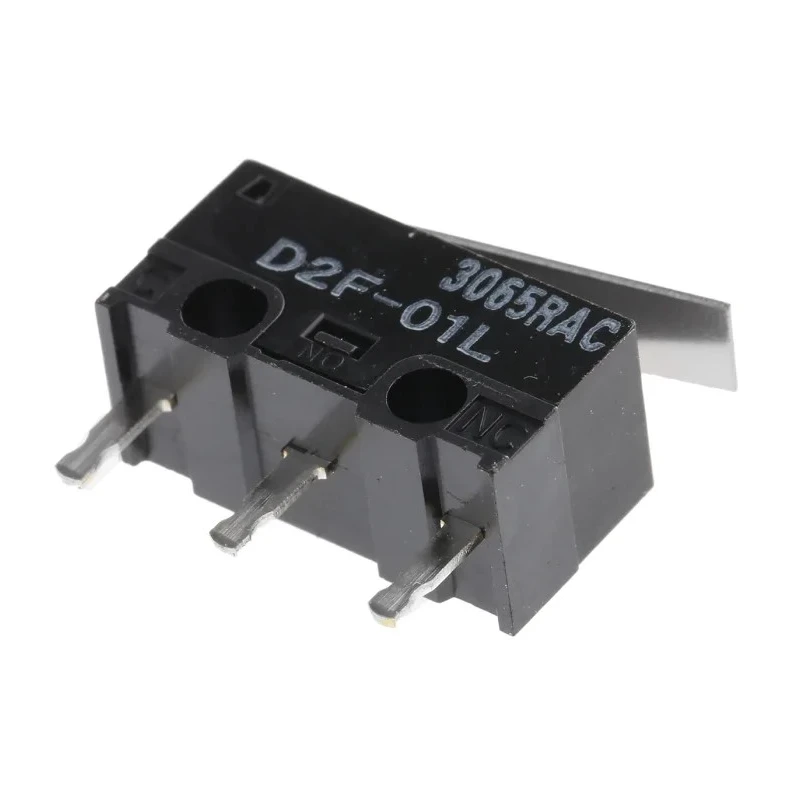

Omron Ultra Subminiature Hinge Lever Micro Switch, PCB Terminal, SPDT, 100mA, 125V AC, 30V DC, IP40 D2F-01L

Free Delivery in India | Lowest Global Shipping Charges

Omron Ultra Subminiature Hinge Lever Micro Switch, PCB Terminal, SPDT, 100mA, 125V AC, 30V DC, IP40 D2F-01L

Name: Omron Ultra Subminiature Hinge Lever Micro Switch, PCB Terminal, SPDT, 100mA, 125V AC, 30V DC, IP40 D2F-01L
Brand: Omron
SKU: 407329
Price: 115.91 INR
Availability: InStock



Category Micro Switch Brand Omron Condition New

Specifications

Country of Origin	Japan
Brand	Omron
Model	D2F-01L
IP Rating	IP40
Approvals	UL & CSA
Series	D2F
Maximum Operating Temperature	65°C
Contact Configuration	SPDT
Actuator Type	Hinge Lever
Contact Rating	3A @125Vac with silver contacts and 0.1A @ 30Vdc with gold contacts
Minimum Operating Temperature	-25°C
Terminal type	PCB Terminal
Standards/Approvals	RoHS
Contact DC Voltage	30V dc
Switch Contact Current	100mA
Operating Force	0.78N
Mechanical Life	1000000Operations
Contact AC Voltage	125V ac
Microswitch Type	Ultra Subminiature

Key Features

Designed with a hinge lever actuator for reliable snap action operation.
Supports a switch contact current of 100mA, suitable for low power circuit control.
Operates with a contact rating of 3A at 125VAC (silver contacts) and 0.1A at 30VDC (gold contacts).
Features a robust IP40 rating protecting against solid objects larger than 1mm.
Offers wide operating temperature range from -25°C to 65°C for diverse environments.
Constructed as an ultra subminiature microswitch ideal for home appliances and communication equipment.
Guarantees mechanical life of 1,000,000 operations ensuring long durability.
Complies with RoHS and is approved by UL and CSA standards.

Product Description

Omron D2F-01L Ultra Subminiature Hinge Lever Micro Switch is engineered for precision and durability in electronic switching applications. Featuring a hinge lever actuator and PCB terminal connections, this SPDT micro switch provides reliable snap action performance ideal for home appliances, audio equipment, and communication devices.

The switch supports a contact current of 100mA and contact ratings of 3A at 125VAC using silver contacts, and 0.1A at 30VDC with gold contacts, ensuring flexible use in AC and DC circuits. It boasts an IP40 ingress protection rating, safeguarding against solid objects larger than 1mm, making it suitable for a wide range of industrial and consumer environments.

Operating within a temperature range of -25°C to 65°C, the micro switch maintains consistent performance. Its ultra subminiature form factor combined with a mechanical life rated at one million operations assures reliability and longevity.

This model meets RoHS environmental compliance and carries certifications from UL and CSA, reinforcing its suitability for global applications. Manufactured in Japan, the device adheres to stringent quality controls.

Ideal for laboratory, manufacturing, industrial, home appliance, and electrical integration uses, the Omron D2F-01L micro switch provides precise control and dependable switching in compact designs.

Hinge lever actuator for efficient snap action. 100mA switch contact suitable for sensitive signals. 3A @ 125VAC (silver) and 0.1A @ 30VDC (gold) contact ratings. IP40 protection against dust and solid objects. Operating temperature from -25°C to 65°C.

Ultra subminiature size for space-constrained applications. 1,000,000 mechanical operations life expectancy. RoHS compliant with UL and CSA approvals. Manufactured in Japan ensuring high quality. Explore more Micro Switches and precision controls in the Electronics & Electricals category at EnvMart.
