ROHM 2-Element Bi-Directional ESD Protection Diode 100 W 3-Pin SOT-23 ESD18VHYFHT116

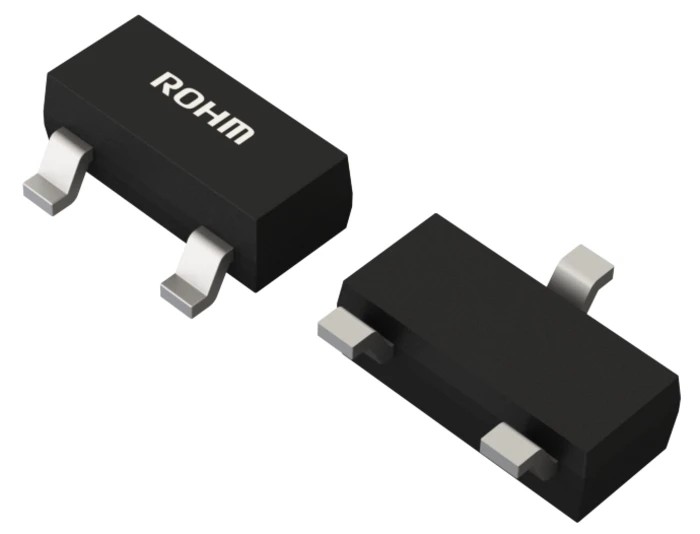

ROHM ESD18VHYFHT116 2-Element Bi-Directional ESD Protection Diode is engineered for robust protection against electrostatic discharge in sensitive electronic circuits. Packaged in a compact 3-pin SOT-23 surface mount format, this diode excels in safeguarding components from high voltage transients with up to 100 W peak pulse power dissipation.

Featuring a bidirectional configuration, it effectively clamps voltage spikes with a clamping voltage of 16 V and a minimum breakdown voltage of 19.74 V. Its maximum reverse stand-off voltage is rated at 16 V to ensure device stability during transient events.

The diode supports a broad operating temperature range from -55°C to 150°C, making it suitable for automotive and industrial environments. Compliance with RoHS and AEC-Q101 standards underlines its high reliability and suitability for automotive applications.

Other notable features include a very low maximum reverse leakage current of 100 nA and a test current rating of 1 mA, all contributing to efficient performance and longevity. The small mold type design facilitates its integration into compact electronic assemblies.

Primary industrial applications include ESD and surge protection across electronics, automotive systems, and semiconductor devices, specifically protecting delicate circuits from electrostatic discharges and voltage surges. Its small footprint and high reliability make it ideal for manufacturing, automotive electronics, and other advanced electronic system protection.

Designed for bidirectional ESD protection to safeguard sensitive electronic components. Compact SOT-23 surface mount package for space-efficient PCB design. Rated for peak pulse power dissipation of 100 W for transient voltage suppression.

Wide operating temperature range from -55°C to 150°C enhances application versatility. Meets RoHS and AEC-Q101 standards, ensuring automotive-grade quality. Low reverse leakage current of 100 nA provides energy-efficient operation.

Small mold type construction for high reliability in compact applications. Effective ESD protection level up to ±30 kV based on IEC61000-4-2 contact testing. Explore the broad range of semiconductor components and protection devices in EnvMart for advanced electronic circuit design and protection solutions.
