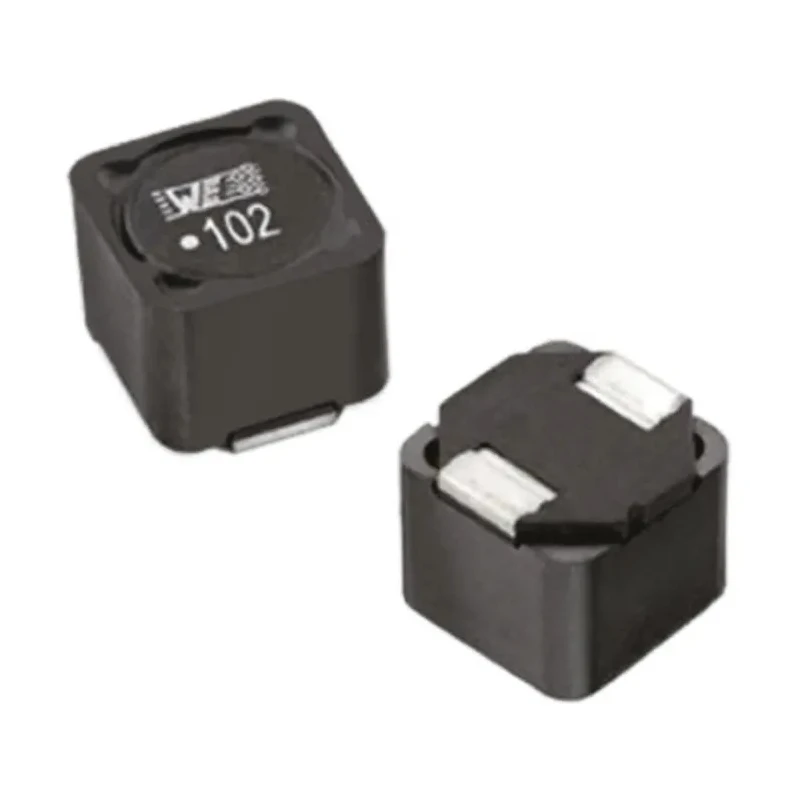

Wurth Elektronik Wirewound Surface Mount Inductor 1.5 mH ±20% 320 mA Idc Shielded WE-PDHV 1060 7687714152

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik Wirewound Surface Mount Inductor 1.5 mH ±20% 320 mA Idc Shielded WE-PDHV 1060 7687714152

Name: Wurth Elektronik Wirewound Surface Mount Inductor 1.5 mH ±20% 320 mA Idc Shielded WE-PDHV 1060 7687714152
Brand: Wurth Elektronik
SKU: 369598
Price: 2.68 USD
Availability: InStock



Category Surface Mount Inductor Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Height	6mm
Length	10mm
Depth	10mm
Packaging	Tape & Reel
Series	WE-PDHV
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Inductance	1.5mH
Standards/Approvals	WE-STD 1516
Package/Case	1060
Maximum DC Current	320mA
Maximum DC Resistance	4.6Ω
Inductance Tolerance	±20 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	1.4MHz
Inductor Construction	Wirewound
Automotive Standard	AEC-Q200

Key Features

Inductance value of 1.5 mH suitable for high-frequency electronic circuits.
Maximum DC current rating of 320 mA for reliable current handling.
Shielded construction ensures wire protection and reduced electromagnetic interference.
Compact 1060 package case with dimensions 10 mm length, 6 mm height, and 10 mm depth.
Supports automotive standard AEC-Q200 for enhanced durability and quality assurance.
Rated for operating temperatures ranging from -40°C to 125°C.
Maximum DC resistance of 4.6 Ω ensures efficient electrical performance.
Surface mount termination style designed for automated assembly.

Product Description

Wurth Elektronik 7687714152 is a wirewound Surface Mount Inductor with a nominal inductance of 1.5 mH and tolerance of ±20%. It supports a maximum DC current of 320 mA and features a shielded design to protect the wirewindings and minimize electromagnetic interference. The compact 1060 package case measures 10 mm in length, 6 mm in height, and 10 mm in depth, making it suitable for space-constrained surface mount technology applications.

This inductor complies with automotive standard AEC-Q200, ensuring reliability for automotive and industrial electronics. It operates over a wide temperature range from -40°C to 125°C, with a maximum DC resistance of 4.6 Ω that helps maintain efficiency and reduce power loss. The termination style is surface mount, optimized for automated PCB assembly and mass production processes.

Typical applications for the WE-PDHV series inductor include use in non-isolated buck or buck-boost converters, constant current LED drivers, utility metering devices, and as a filter element in power supplies. Its magnetically shielded construction is ideal for 400 VDC applications that require robust EMI performance and wire protection.

Inductance value of 1.5 mH with ±20% tolerance. Maximum DC current of 320 mA for steady current handling. Shielded wirewound construction to reduce electromagnetic interference. Compact 1060 package case with dimensions 10 x 6 x 10 mm.

Compliance with automotive standard AEC-Q200 for reliable performance. Operating temperature from -40°C to 125°C ensures suitability for harsh environments. Maximum DC resistance of 4.6 Ω promotes energy efficiency. Surface mount termination style suitable for automated manufacturing.

Applications include buck converters, LED drivers, utility metering, and power supply filtering.

Manufactured in China, the WE-PDHV series provides a high-quality, magnetically shielded inductor solution suitable for industrial, automotive, and electronic hardware designs. This product supports high-efficiency power management and is available on tape and reel packaging, simplifying automated PCB assembly processes.
