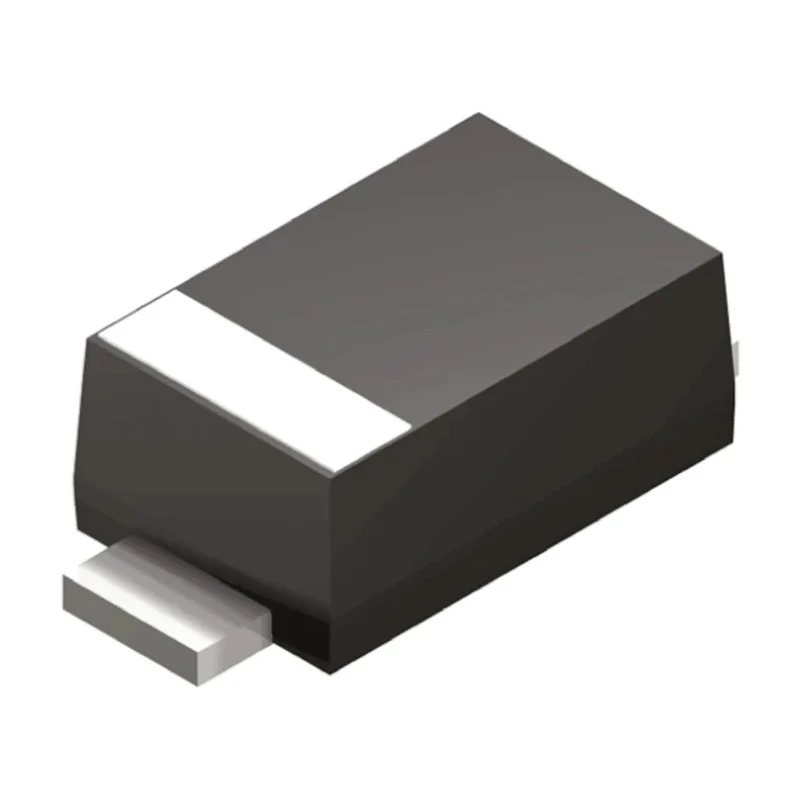

Nexperia Schottky Barrier Diode 60 V 1 A Surface Mount 2-Pin SOD-123W PMEG6010ER,115
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 2.8mm |
| Model | PMEG6010ER,115 |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | PMEG6010ER |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123W |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 60μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 530mV |
Key Features
- It features low forward voltage drop for high efficiency power rectification.
- Compact SOD-123W package enables space-saving PCB designs.
- Supports continuous forward current up to 1 ampere.
- Withstands peak repetitive reverse voltage of 60 volts.
- High surge current capability of 50 amperes for transient conditions.
- Wide operating temperature range from -55°C to 150°C ensures reliability in harsh environments.
- Low leakage current and low capacitance minimize power losses.
- Constructed to automotive standard AEC-Q101 ensuring high quality and durability.
Product Description
Nexperia PMEG6010ER,115 Schottky Barrier Diode is a high efficiency 60 V, 1 A diode designed for fast switching and low forward voltage drop applications. It is housed in a low-profile surface mount 2-pin SOD-123W package, making it ideal for compact electronic device circuits where space saving is critical.
This diode supports a maximum continuous forward current of 1 ampere and peak repetitive reverse voltage of 60 volts, providing robust performance in power rectification and switching tasks. It can handle high transient surge current up to 50 amperes, ensuring protection and longevity in circuits subjected to transient spikes.
The device operates reliably over a wide temperature range from -55°C to 150°C, suitable for industrial, automotive, and consumer electronics applications. It incorporates a Schottky barrier junction, offering ultra-low forward voltage drop and negligible power switching losses, which improves energy efficiency in power supplies and converters.
Its low leakage current and low capacitance characteristics further reduce power dissipation and electromagnetic interference, enhancing overall circuit performance.
The diode meets the automotive industry standard AEC-Q101, confirming its suitability for automotive electronics and high reliability environments. Its physical dimensions of 2.8 mm length, 1.9 mm width, and 1.1 mm height facilitate the design of miniature electronic assemblies.
Low forward voltage drop enhances energy efficiency. Compact and low-profile SOD-123W surface mount package. High surge current tolerance for transient robustness. Wide operating temperature range for all environment conditions.
Meets automotive standard AEC-Q101 for quality assurance. Low leakage current minimizes power loss. Low capacitance reduces signal distortion. Manufactured in Malaysia ensuring quality and reliability. Ideal for industrial, automotive, and consumer electronics applications.
Two-pin single diode configuration for easy integration.
This Schottky Diode is widely used in power supplies, automotive electronics, telecommunications, and switching regulators, providing efficient rectification and protection solutions. Discover more precision electronic components by exploring our semiconductor product range at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 1 ampere.
This diode can withstand a peak reverse repetitive voltage of 60 volts.
It has a high surge current capability of up to 50 amperes for transient conditions.
The operating temperature range for this unit is from -55°C to 150°C.
The dimensions of the SOD-123W package are 2.8 mm in length, 1.9 mm in width, and 1.1 mm in height.
This diode meets the automotive standard AEC-Q101, ensuring high quality and reliability.
The maximum forward voltage drop for this model is 530 mV.
It features a two-pin configuration for easy integration into circuits.
This model is a Schottky rectifier, designed for fast switching and low forward voltage drop applications.
The peak reverse current for this diode is rated at 60 μA.
The low leakage current helps to minimize power losses and enhances overall circuit performance.
This diode is commonly used in power supplies, automotive electronics, telecommunications, and switching regulators.
