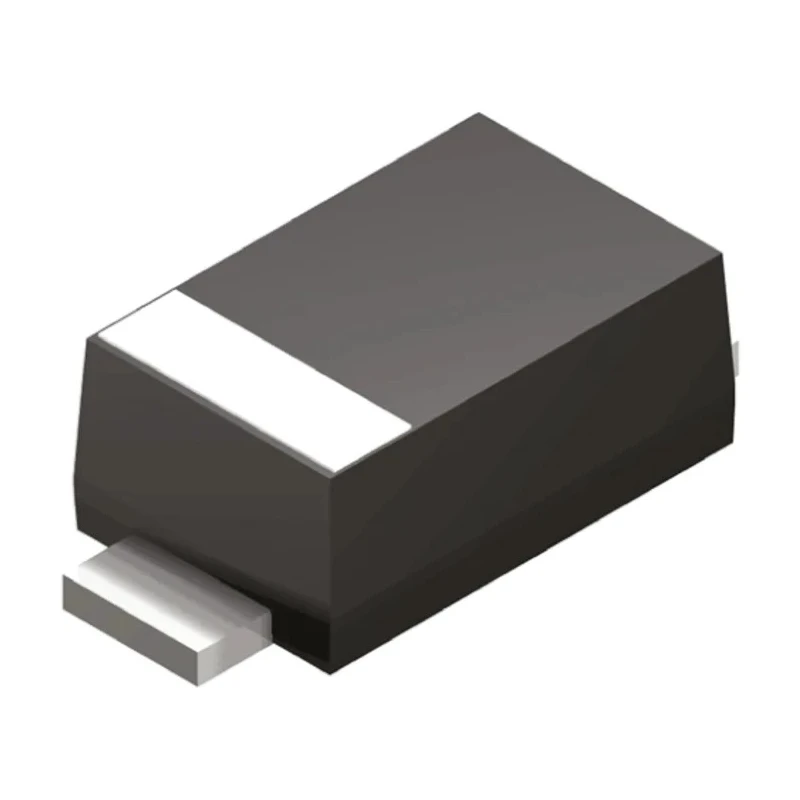

Nexperia 40 V 2 A Schottky Barrier Diode 2-Pin Surface Mount SOD-123 PMEG4020ER,115
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 2.8mm |
| Model | PMEG4020ER,115 |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | PMEG4020ER |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 490mV |
Key Features
- Designed for low forward voltage drop of 490 mV enabling energy-efficient applications.
- Rated for a maximum continuous forward current of 2 A and peak surge current of 50 A.
- Compact SOD-123 surface mount package suitable for space-constrained electronic circuits.
- Operating temperature range from −55°C to 150°C for reliable performance in harsh environments.
- Features very low leakage current with a peak reverse current of 100 µA enhancing circuit stability.
- Complies with automotive standard AEC-Q101, ensuring quality for automotive electronics.
- Manufactured in Malaysia with robust quality control standards.
Product Description
Nexperia PMEG4020ER,115 Schottky Barrier Diode is a high-efficiency 40 V, 2 A diode designed as a 2-pin surface mount device in an ultra-small SOD-123 package. It is optimized for low forward voltage drop at 490 mV and high junction temperature tolerance, making it ideal for compact and thermal-sensitive industrial and automotive electronic applications.
This diode features a maximum continuous forward current rating of 2 A with peak non-repetitive forward surge current up to 50 A, ensuring robust transient handling capability. Its outstanding low leakage current (100 µA peak reverse current) reduces power losses and enhances the efficiency and reliability of DC/DC converters, power supplies, and switching regulators.
With a broad temperature operating range from −55°C to 150°C and adherence to the AEC-Q101 automotive quality standard, this diode meets the demanding conditions of automotive electronics and industrial controls. The compact dimensions (2.8 mm length, 1.9 mm width, 1.1 mm height) allow designers to use this diode in high-density surface mount applications on PCB assemblies.
Low forward voltage drop minimizes power dissipation in switching applications. High peak surge current supports transient load conditions effectively. Small outline SOD-123 package facilitates space savings on circuits.
Wide temperature range supports various environmental conditions. Low leakage current improves device efficiency and circuit stability. Automotive standard AEC-Q101 ensures automotive-grade quality and reliability. Manufactured in Malaysia under strict quality controls.
This Schottky diode is widely used in industrial power conversion, automotive electronics, telecommunications equipment, and consumer electronics for rectification, freewheeling, and reverse polarity protection applications.
Explore the full range of Nexperia Schottky Diodes & Rectifiers at EnvMart for reliable components engineered to enhance circuit efficiency and durability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this diode is 2 A.
This model can handle a peak non-repetitive forward surge current of up to 50 A.
The forward voltage drop is rated at 490 mV, which enables energy-efficient applications.
It operates within a temperature range of −55°C to 150°C, suitable for harsh environments.
The diode is housed in a compact SOD-123 surface mount package.
The peak reverse current is specified at 100 µA, which contributes to circuit stability.
Yes, it complies with the AEC-Q101 automotive standard, ensuring quality for automotive electronics.
The dimensions are 2.8 mm in length, 1.9 mm in width, and 1.1 mm in height.
It features a single diode configuration, typical for Schottky diodes.
It is widely used in industrial power conversion, automotive electronics, telecommunications equipment, and consumer electronics.
This diode is manufactured in Malaysia under strict quality control standards.
This model is classified as a Schottky rectifier, known for its low forward voltage drop.
