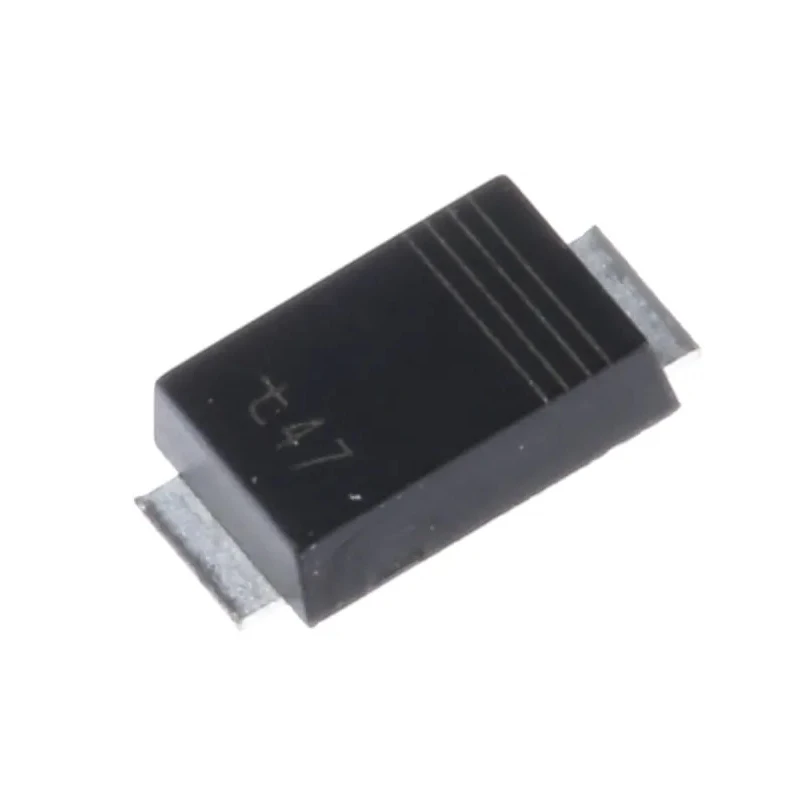

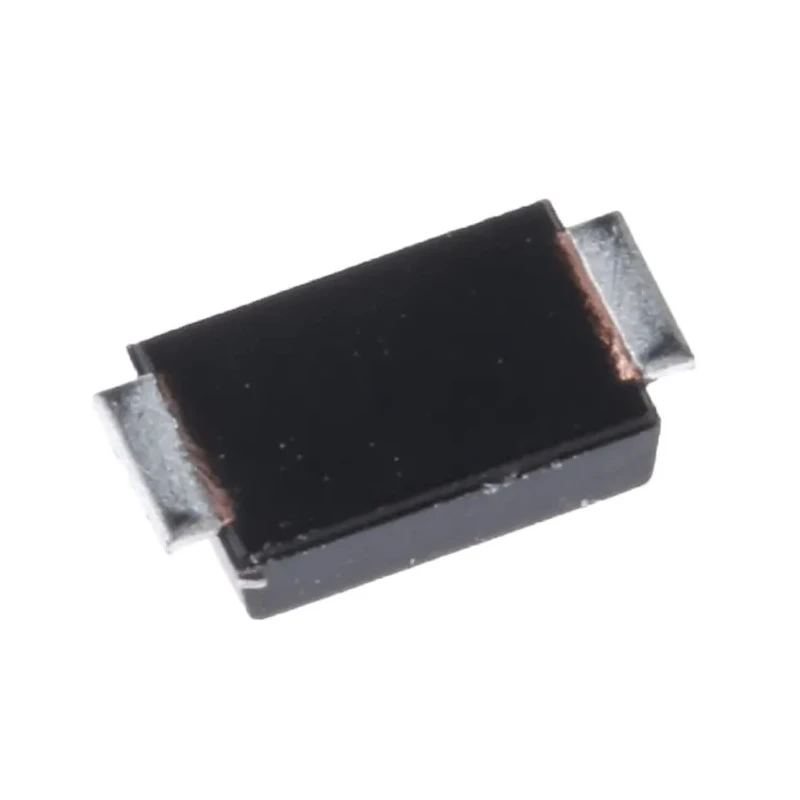

Nexperia 40 V 5 A Surface Mount Schottky Diode 2-Pin SOD-128 PMEG4050EP,115
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 4mm |
| Model | PMEG4050EP,115 |
| Width | 2.7mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-128 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 300μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 70A |
| Maximum Forward Voltage Vf | 490mV |
Key Features
- Maximum continuous forward current of 5 amperes ensures reliable high current handling.
- Peak reverse repetitive voltage rated at 40 volts for robust blocking capability.
- Low forward voltage of 490 millivolts reduces power loss in circuits.
- Operates within a wide temperature range from -55°C to 150°C.
- Compact SOD-128 low-profile package with dimensions 4 mm length, 2.7 mm width, and 1.1 mm height.
- Schottky diode configuration offers fast switching and low capacitance for efficient performance.
- Complies with automotive standard AEC-Q101 for reliability in automotive applications.
- Peak non-repetitive forward surge current of 70 amperes for transient protection.
Product Description
Nexperia PMEG4050EP,115 is a 40 V, 5 A Schottky barrier diode designed for surface mount applications, housed in a compact 2-pin SOD-128 package. This diode provides excellent efficiency with a low forward voltage drop of 490 mV and supports a maximum continuous forward current of 5 amperes. Its ultra-small package size of 4 mm length, 2.7 mm width, and 1.1 mm height allows for space-saving PCB layouts.
The diode’s operating temperature range extends from -55°C to 150°C, making it suitable for demanding industrial and automotive environments. It meets the AEC-Q101 automotive standard, ensuring reliability and performance under rigorous conditions.
This Schottky Diode features low junction capacitance and negligible power switching losses, contributing to high-frequency circuit efficiency. The device withstands peak reverse voltages up to 40 V and can handle transient surge currents up to 70 A without damage.
Due to its low leakage current of 300 µA, it is ideal for power management, voltage clamping, and rectification applications in fields such as industrial power supplies, automotive electronics, telecommunications, and consumer electronics.
Maximum continuous forward current of 5 A enables high current applications. Low forward voltage drop reduces power dissipation and improves efficiency. Compact SOD-128 surface mount package optimizes PCB space. Wide operating temperature range suitable for industrial and automotive use.
Automotive standard AEC-Q101 certified for quality assurance. Low leakage current minimizes losses in sensitive circuits. High surge current capability protects against transient conditions. Manufactured in Malaysia under stringent quality standards.
This product is ideal for industrial, automotive, telecommunications, and consumer electronics sectors. Explore the Electronics & Electricals category at EnvMart for more semiconductors and discrete diode solutions from trusted brands like Nexperia.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 5 amperes, allowing for reliable high current handling in applications.
It has a peak reverse repetitive voltage rating of 40 volts, providing robust blocking capability.
The SOD-128 package measures 4 mm in length, 2.7 mm in width, and 1.1 mm in height, making it compact for space-saving designs.
This diode operates within a wide temperature range from -55°C to 150°C, suitable for industrial and automotive environments.
The forward voltage drop is 490 millivolts, which helps to reduce power loss in circuits.
It can handle a peak non-repetitive forward surge current of 70 amperes, providing transient protection.
Yes, it complies with the AEC-Q101 automotive standard, ensuring reliability in automotive applications.
The peak reverse current is rated at 300 microamperes, which indicates low leakage current in sensitive circuits.
This model features a single Schottky diode configuration, which offers fast switching and low capacitance for efficient performance.
It is suitable for power management, voltage clamping, and rectification applications in industrial power supplies, automotive electronics, telecommunications, and consumer electronics.
This product is manufactured in Malaysia under stringent quality standards.
This diode uses a surface mount configuration, making it suitable for modern PCB layouts.
