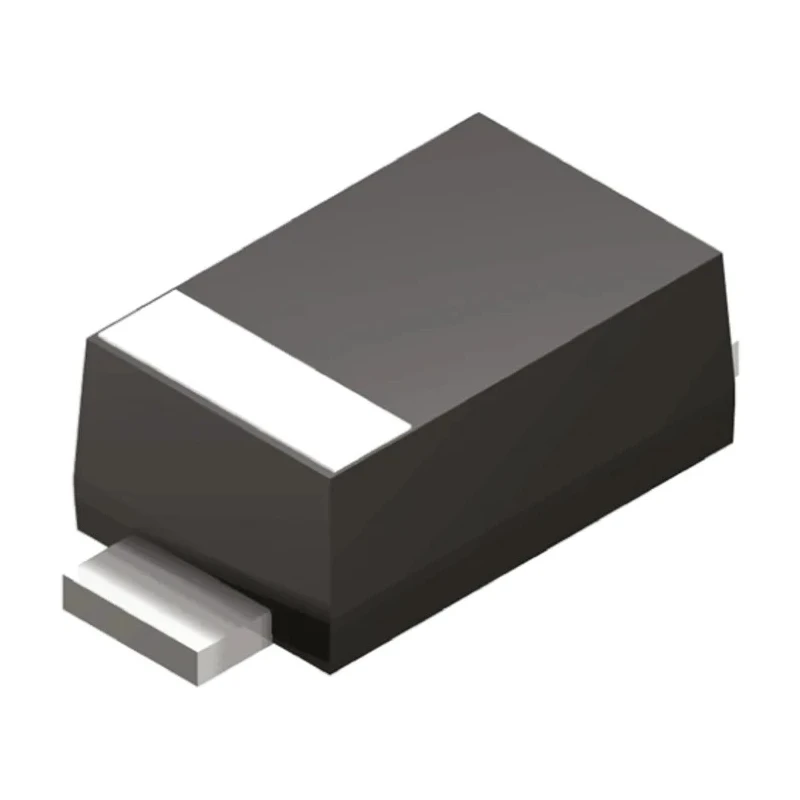

Nexperia Schottky Diode 40 V 3 A, 2-Pin SOD-123 PMEG4030ER,115

Nexperia PMEG4030ER,115 Schottky Diode is a high-efficiency, single configuration diode designed for use in power and switching electronic circuits. Encapsulated in a compact 2-pin SOD-123 surface-mount package measuring 2.8 mm in length, 1.9 mm in width, and 1.1 mm in height, this diode supports continuous forward currents up to 3 A and peak repetitive reverse voltages up to 40 V.

Its low forward voltage drop of 540 mV combined with low leakage current enhances overall circuit efficiency while ensuring minimized power dissipation. The diode's operating temperature range from -55°C up to 150°C allows for use in demanding automotive and industrial environments, further supported by compliance with the AEC-Q101 automotive standard.

This device is optimized for surface mount assembly processes, suitable for compact designs requiring high reliability. Its peak non-repetitive forward surge current capability of 50 A enables it to manage transient surges effectively, enhancing system protection.

Applications include power rectification, reverse polarity protection, and voltage clamping in automotive, industrial, and consumer electronics. The product is manufactured in Malaysia under strict quality controls to meet performance and durability standards.

This diode utilizes a low forward voltage of 540 mV for improved efficiency. The device supports a wide temperature range from -55°C to 150°C for reliable performance. Its ultrasmall SOD-123 package suits compact electronic applications.

The diode is optimized for low leakage current and negligible switching losses. It complies with the automotive AEC-Q101 standard, suitable for automotive electronics. The peak non-repetitive surge current rating is 50 A for transient handling.

The product is manufactured in Malaysia, ensuring quality standards. Explore more semiconductor components and Schottky Diodes at EnvMart for your electronic design and manufacturing requirements.
