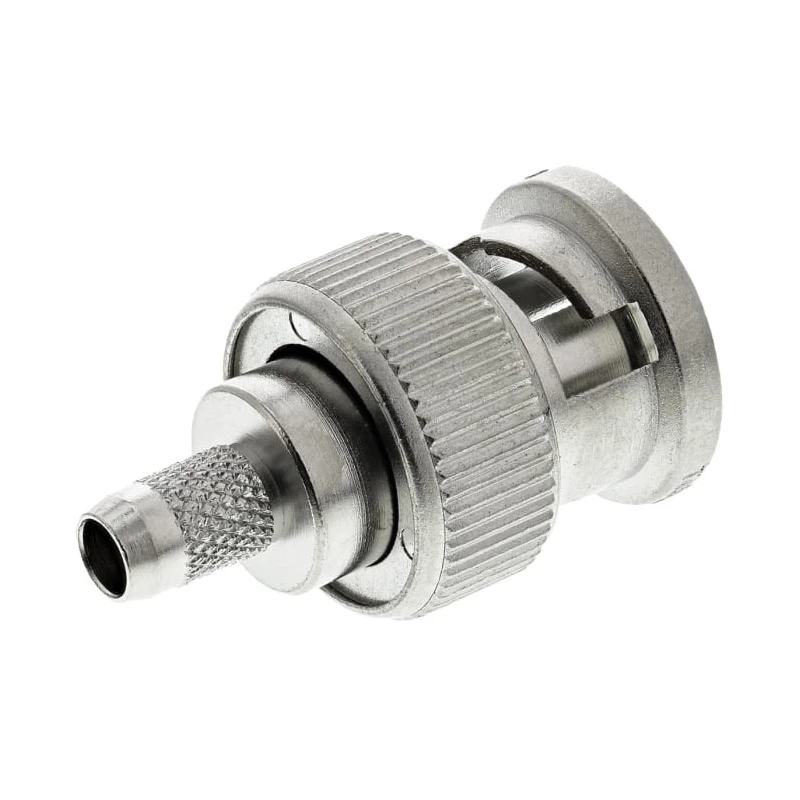

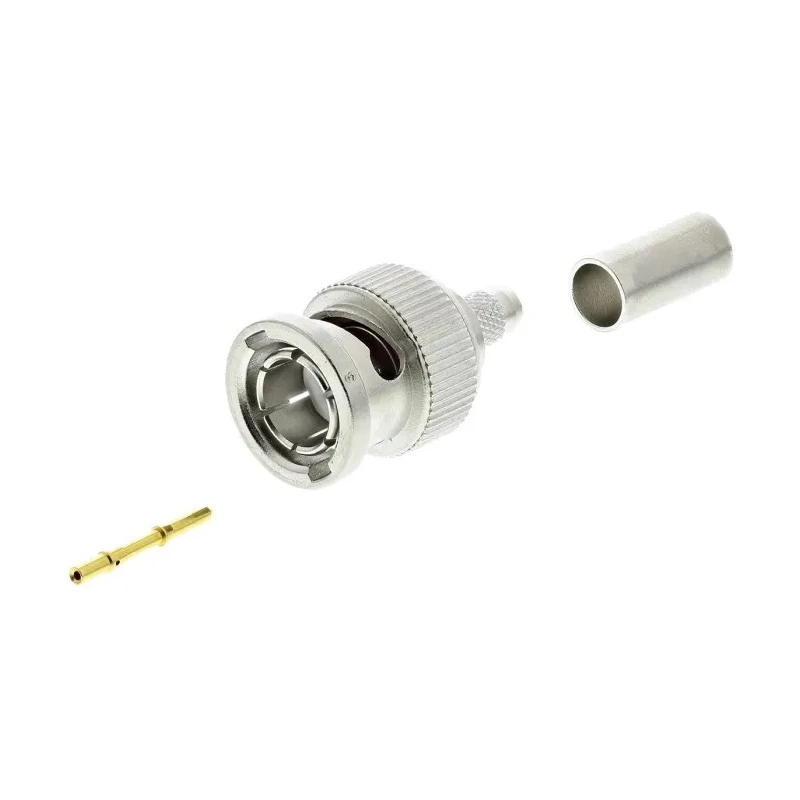

Telegartner BNC Series Coaxial Connector Cable Male BNC, 75 Ω, Straight Body Crimp J01002B0018
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01002B0018 |
| Mount Type | Cable |
| Operating Frequency | 3GHz |
| Contact Material | Copper Zinc Lead Alloy |
| Series | BNC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | 0°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold over Nickel over Copper |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| binder, Plug Cable Mount, 75Ω, Crimp Termination, Straight BodyBrand | Telegartner |
Key Features
- Operates at frequencies up to 3 GHz with excellent return loss performance.
- Constructed with nickel-plated body and gold over nickel over copper contact plating for enhanced durability.
- Designed for HDTV digital technology applications needing 75Ω impedance connections.
- Crimp termination ensures secure and stable cable connections.
- Rated for operating temperatures from 0°C to 155°C.
- Compatible with cable types including G41 (0.6/2.8 - 4.7), SDV Canford, Image 360, and others.
- Meets IEC 61 169-8 standard for coaxial connectors.
Product Description
Telegartner J01002B0018 is a BNC series coaxial connector cable designed for high frequency applications up to 3 GHz, featuring a male BNC connector with straight body crimp suitable for cable mounting. It ensures a 75 Ω impedance, ideal for HDTV and other digital television technologies requiring stable and high-quality signal transmission.
The connector body is plated with nickel providing corrosion resistance, while the contact is made from copper zinc lead alloy plated with gold over nickel over copper to enhance conductivity and reliability. The connector supports crimp termination, guaranteeing a firm cable connection for increased mechanical stability.
Designed to operate within a temperature range from 0°C to 155°C, this connector is suitable for use in demanding industrial, broadcast, and professional audio/video applications. Its bayonet coupling mechanism provides fast and secure attachment, maintaining excellent return loss better than 30 dB at 3 GHz.
The connector is compatible with various cable types such as G41 (0.6/2.8 - 4.7), SDV Canford, Image 360, VDM230, 1855A, and 1855ENH, widely used in broadcast and professional video installations.
Supports operating frequencies up to 3 GHz for high-definition signal integrity. Nickel plating and gold contact plating contribute to durability and conductivity. Crimp termination ensures robust and reliable cable attachment.
Complies with IEC 61 169-8 standards for coaxial connectors. Suitable for HDTV applications requiring 75 Ω impedance. Temperature rated from 0°C to 155°C for varied environment use. Compatible with multiple professional coaxial cable types.
This Telegartner BNC series coaxial connector cable is a precise and durable solution for connecting high frequency coaxial cables in industrial, commercial, and broadcast environments. Its excellent electrical and mechanical properties support reliable transmission and long-term service life. Explore more high-quality Coaxial Connectors in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at frequencies up to 3 GHz, ensuring high-quality signal transmission for various applications.
The connector is designed for a 75 Ω impedance, making it suitable for HDTV and other digital television technologies.
It features crimp termination, which ensures a secure and stable connection for the cable.
The body is nickel-plated for corrosion resistance, while the contact is made from a copper zinc lead alloy plated with gold over nickel over copper for enhanced conductivity.
It is rated for operating temperatures from 0°C to 155°C, allowing for use in various environments.
This connector is compatible with several cable types, including G41 (0.6/2.8 - 4.7), SDV Canford, Image 360, VDM230, 1855A, and 1855ENH.
This BNC connector features a male connector gender, suitable for cable mounting applications.
It meets the IEC 61 169-8 standard for coaxial connectors, ensuring reliable performance in professional applications.
It is a standard size connector with a straight body orientation, designed for easy installation.
It is designed for high-frequency applications in industrial, broadcast, and professional audio/video environments.
It maintains excellent return loss performance, better than 30 dB at 3 GHz, ensuring signal integrity.
The connector is manufactured in Germany, reflecting high standards in production.
