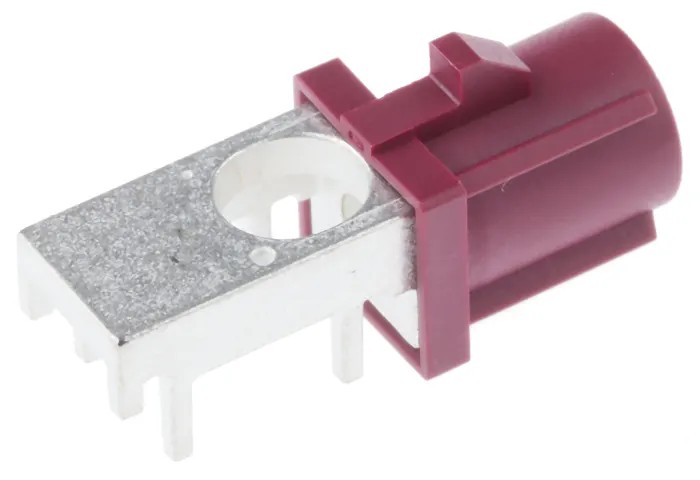

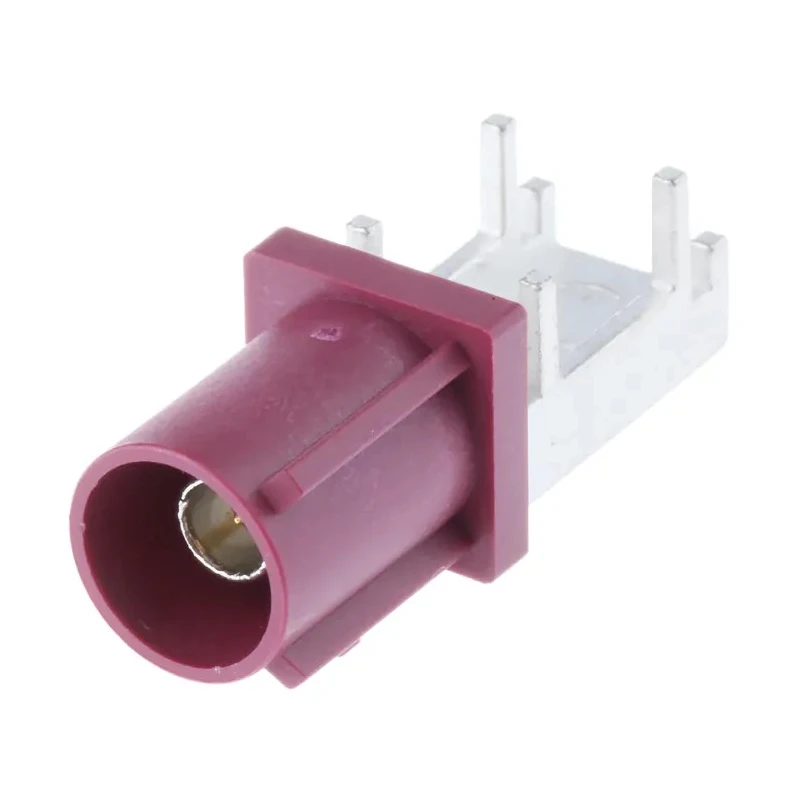

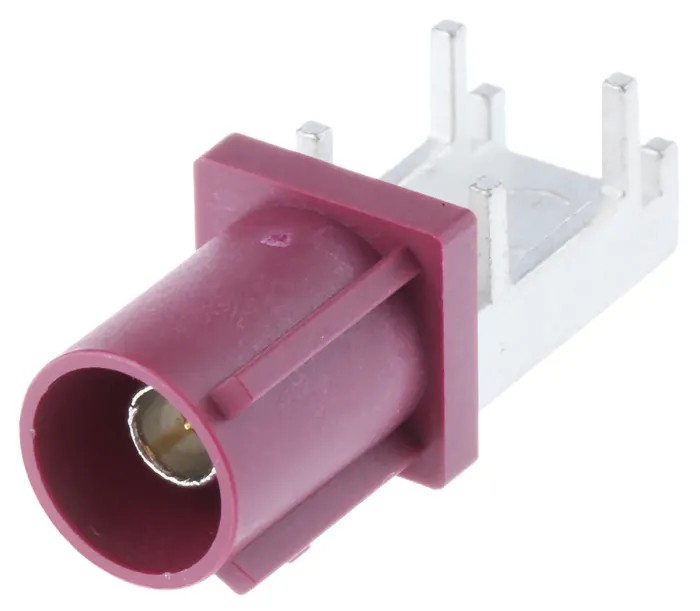

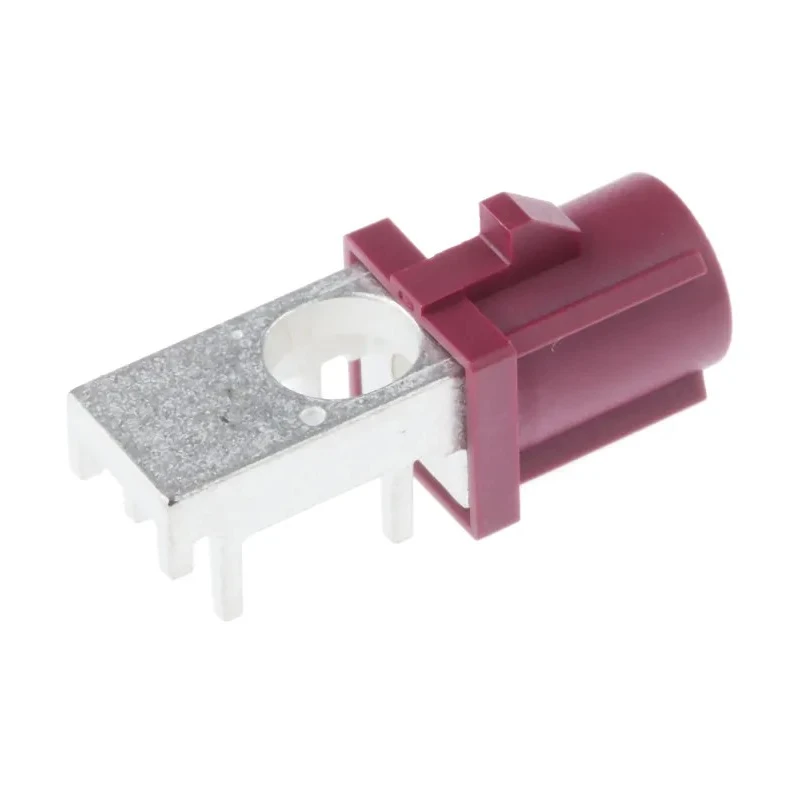

Telegartner Coaxial Connector Surface Male SMBA Connector, 50 Ω, Right Angle Body Solder 4408.SMBA.1D10.009
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Right Angle |
| Model | 4408.SMBA.1D10.009 |
| Mount Type | Surface |
| Contact Material | Brass |
| Termination Type | Solder |
| Maximum Operating Temperature | 155°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Nickel, Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | SMBA Connector |
| Body Plating | Nickel |
Key Features
- Surface mount type ensures secure attachment on PCB surfaces.
- Right angle design optimizes space in compact electronic assemblies.
- Nickel plated diecast body provides corrosion resistance and durability.
- Contact material is brass with nickel and gold plating for excellent conductivity.
- Maximum operating temperature of 155°C suits high-temperature environments.
- Impedance of 50 Ω supports high-frequency RF signal integrity.
- SMBA connector type featuring male gender contacts and normal polarity.
- Designed according to DIN 72594-1 and USCAR-18 standards.
Product Description
Telegartner 4408.SMBA.1D10.009 Coaxial Connector Surface Male SMBA Connector is a high-quality RF coaxial connector with a 50 Ω impedance designed for right angle PCB mount applications. Featuring a solder termination type, this connector offers reliable electrical contact and mechanical stability for demanding electronic and automotive environments.
This SMBA connector complies with automotive industry standards such as DIN 72594-1 and USCAR-18, making it suitable for use in automotive RF communication systems. The connector body is diecast and nickel plated, providing excellent corrosion protection and mechanical strength. The brass contact is plated with nickel and gold layers ensuring optimal conductivity and reduced signal loss.
Its compact right angle design allows efficient use of PCB real estate, and the coaxial insert is capable of 360° rotation for ease of assembly. The diecast housing is shock and vibration proof, ensuring long-term durability in harsh conditions.
The maximum operating temperature rating of 155°C enables operation in high temperature industrial and automotive environments. The standard size and surface mount design facilitate straightforward integration into various electronic assemblies.
Surface mount with solder termination for reliable PCB connection. Right angle body optimizes space and layout flexibility. 50 Ω impedance ensures signal integrity for RF applications. Durable nickel plated diecast housing resists corrosion and mechanical damage.
Brass contact with nickel and gold plating enhances electrical performance. Designed to meet DIN 72594-1 and USCAR-18 industry standards. Shock and vibration resistant design suitable for automotive applications. Manufactured in Germany guaranteeing high quality and consistency.
Compatible with IMS SMBA™ (FAKRA) standard for automotive connectors.
This connector is ideal for use in automotive, industrial, electronics manufacturing, and communication systems requiring reliable high-frequency coaxial connections. Browse EnvMart's extensive collection of Coaxial Connectors for complementary components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The impedance of this connector is 50 Ω, which supports high-frequency RF signal integrity.
The maximum operating temperature for this model is 155°C, making it suitable for high-temperature environments.
This connector features a solder termination type, ensuring reliable electrical contact and mechanical stability.
The contact material is brass, which is plated with nickel and gold for enhanced conductivity.
This connector has a right angle orientation, optimizing space in compact electronic assemblies.
Yes, it complies with automotive industry standards such as DIN 72594-1 and USCAR-18, making it suitable for automotive RF communication systems.
This model supports surface mounting, allowing for straightforward integration into various electronic assemblies.
The body is made of diecast material and is nickel plated, providing excellent corrosion resistance and mechanical strength.
The contact gender of this connector is male, which is typical for SMBA connectors.
Yes, the coaxial insert of this connector is capable of 360° rotation, facilitating ease of assembly.
It is designed according to DIN 72594-1 and USCAR-18 standards, ensuring compatibility with automotive requirements.
This connector is manufactured in Germany, ensuring high quality and consistency.
