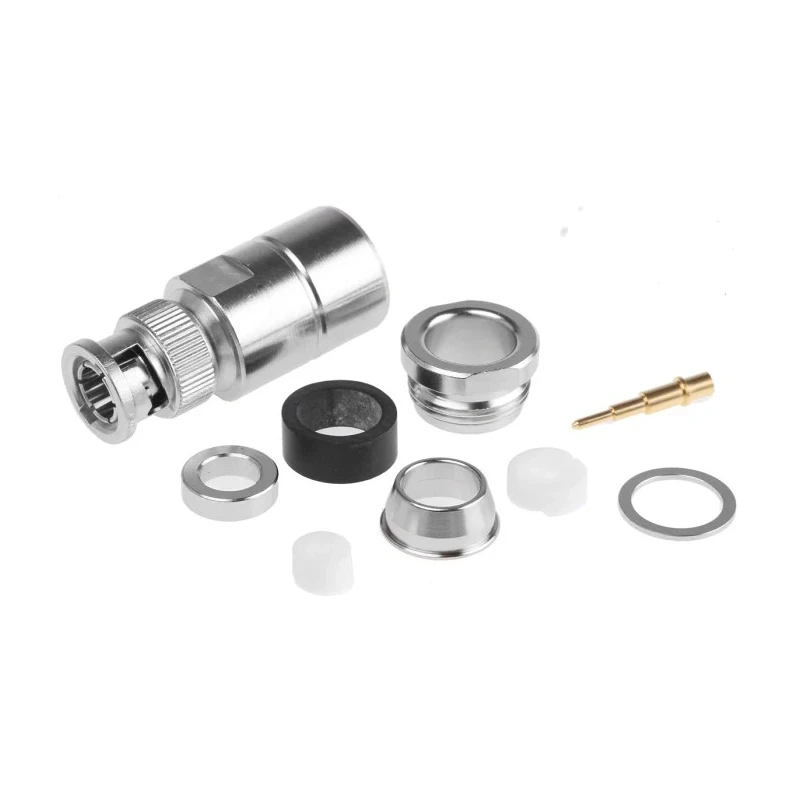

Telegartner BNC Series Coaxial Connector Cable Male BNC, 75 Ω, Straight Body Clamp J01002A1940
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01002A1940 |
| Mount Type | Cable |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper Nickel Lead Alloy Copper Zinc Lead Alloy |
| Series | BNC |
| Termination Type | Clamp |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | 0°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Nickel over Copper |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- Designed for use with RG-11A/U and RG-216/U cables.
- Supports operating frequencies up to 4 GHz.
- Nickel-plated brass body ensures durability and corrosion resistance.
- Bayonet coupling mechanism with IP54 rating when mated with compatible jacks.
- Operating temperature range from 0°C to 155°C.
- Clamp termination type for secure cable connection.
- Beryllium copper and copper zinc lead alloy contacts plated with nickel over copper.
- Ideal for RF coaxial applications requiring 75 Ω impedance.
Product Description
Telegartner J01002A1940 BNC Series Coaxial Connector is a high-quality cable connector designed for reliable RF signal transmission in electronics and communication systems.
This male BNC straight plug connector features a 75 Ω impedance, suitable for high-frequency applications up to 4 GHz. Its nickel-plated brass body offers robust mechanical strength and resistance to corrosion, with a bayonet coupling mechanism for easy and secure mating.
The connector employs a clamp termination type, facilitating a firm grip on cables such as RG-11A/U and RG-216/U, ensuring stable electrical connection and minimal signal loss. The contacts are made from beryllium copper nickel lead alloy and copper zinc lead alloy, plated with nickel over copper to enhance conductivity and durability.
Designed to operate within a temperature range of 0°C to 155°C, this connector maintains performance in varied environmental conditions. When mated with compatible jacks, it offers an IP54-rated seal to protect against dust and splashing water, making it suitable for industrial and laboratory RF coaxial applications.
The J01002A1940 model is manufactured in Germany, ensuring compliance with IEC 61 169-8 standards for coaxial connectors. Designed for RG-11A/U and RG-216/U cables. Supports frequencies up to 4 GHz for stable RF performance.
Nickel-plated brass body provides durability and corrosion resistance. Bayonet coupling mechanism for secure connections. Clamp termination ensures firm cable fixation. High-quality contact materials for excellent conductivity.
Operating temperature from 0°C to 155°C. IP54 sealing rating when mated ensures environmental protection.
This Telegartner coaxial connector series is ideal for use in electronic components, power and signal connectors in industrial, laboratory, telecommunications, and broadcasting environments.
Explore more Coaxial Connectors and related components within the Electronics & Electricals category at EnvMart to find precise solutions for your technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Telegartner BNC Series Coaxial Connector supports operating frequencies up to 4 GHz.
This model has an impedance of 75 Ω, making it suitable for RF applications.
It is designed for use with RG-11A/U and RG-216/U cables.
The operating temperature range for this model is from 0°C to 155°C.
This connector features a clamp termination type for secure cable connection.
The contacts are made from beryllium copper nickel lead alloy and copper zinc lead alloy, plated with nickel over copper.
The body of this connector is made of nickel-plated brass, providing corrosion resistance.
Yes, it has an IP54 rating when mated with compatible jacks, protecting against dust and splashing water.
It employs a bayonet coupling mechanism for easy and secure mating.
This connector is manufactured in Germany.
The orientation of this connector is straight.
It complies with IEC 61 169-8 standards for coaxial connectors.
