onsemi Operational Amplifier 5 MHz, 8-Pin SOIC, 36V MC33178DR2G

onsemi MC33178DR2G Operational Amplifier is a high-performance dual-channel amplifier designed with bipolar technology for optimal audio and data signal processing. The device operates over a wide voltage range up to 36V with a low supply current of 420 μA per amplifier, making it energy efficient and reliable for industrial and electronic circuit applications.

The amplifier features a gain bandwidth product of 5 MHz and a fast slew rate of 2 V/μs, ensuring rapid signal response and stable performance. Its low input offset voltage (average 0.15 mV) and low total harmonic distortion (0.0024% at 1 kHz) make it ideal for precision analog amplification tasks.

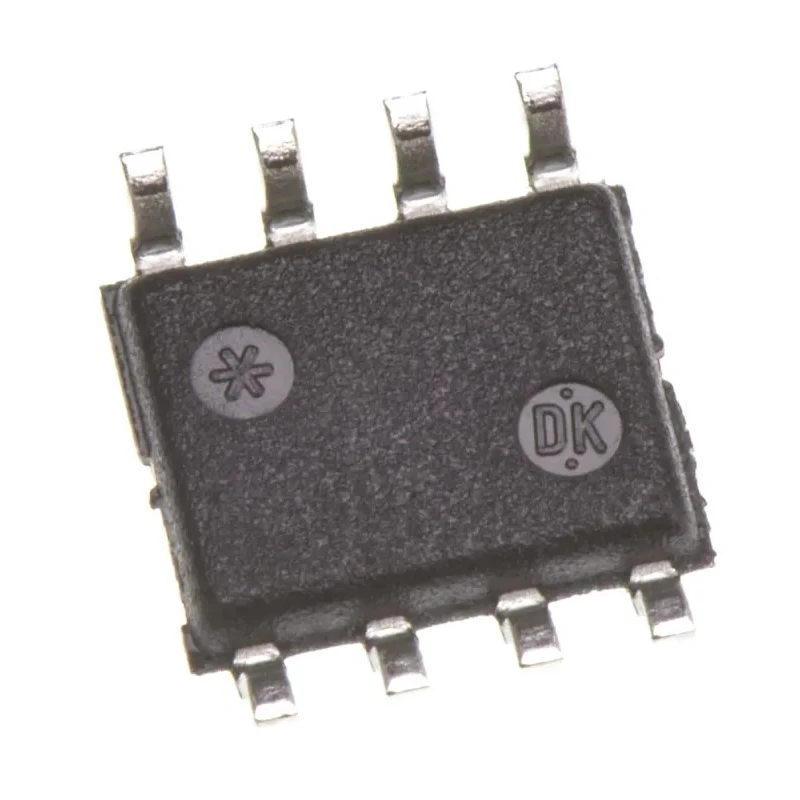

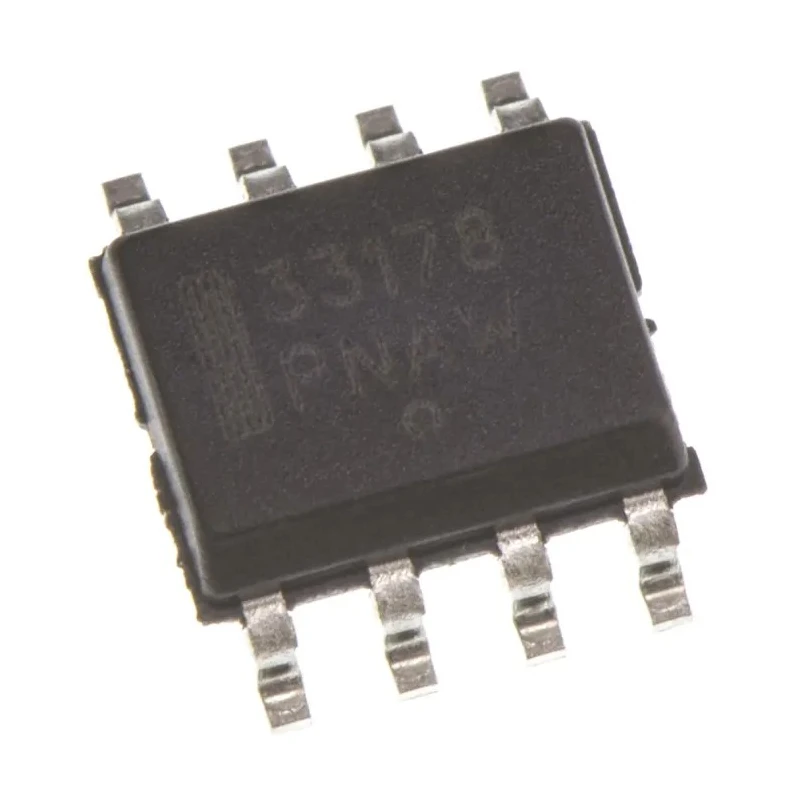

The MC33178DR2G is housed in a compact 8-pin SOIC surface mount package measuring 5 mm x 4 mm x 1.5 mm, suitable for space-constrained PCB layouts. It supports dual supply operation with voltage ranges from ±2 V to ±18 V, and a wide operating temperature range of -40°C to 85°C for industrial-grade robustness.

The device includes ESD protection clamps on its inputs to protect against electrostatic damage, which enhances its longevity and reliability in demanding environments. With an output current capability of 80 mA, this operational amplifier comfortably drives heavy loads.

This product is suitable for industrial, manufacturing, audio processing, laboratory instrumentation, measurement, and control systems requiring precision signal amplification. Features a low supply current with only 420 μA drain current per amplifier.

Dual operational amplifiers with bipolar technology for low input offset voltage and noise. High slew rate of 2 V/μs and a gain bandwidth product of 5 MHz. Wide operating voltage range from 1V minimum to 36V maximum supply voltage.

Operates at temperatures from -40°C to 85°C for various industrial applications. Compact SOIC surface mount package with 8 pins, measuring 5 mm length, 4 mm width, and 1.5 mm height. High output current capability of 80 mA to drive demanding loads efficiently.

Low input bias current of 500 nA and input offset current of 50 nA for precision amplification. Designed for audio and data signal processing with low harmonic distortion of 0.0024% at 1 kHz. ESD protection clamps on inputs ensure enhanced durability and reliability.
