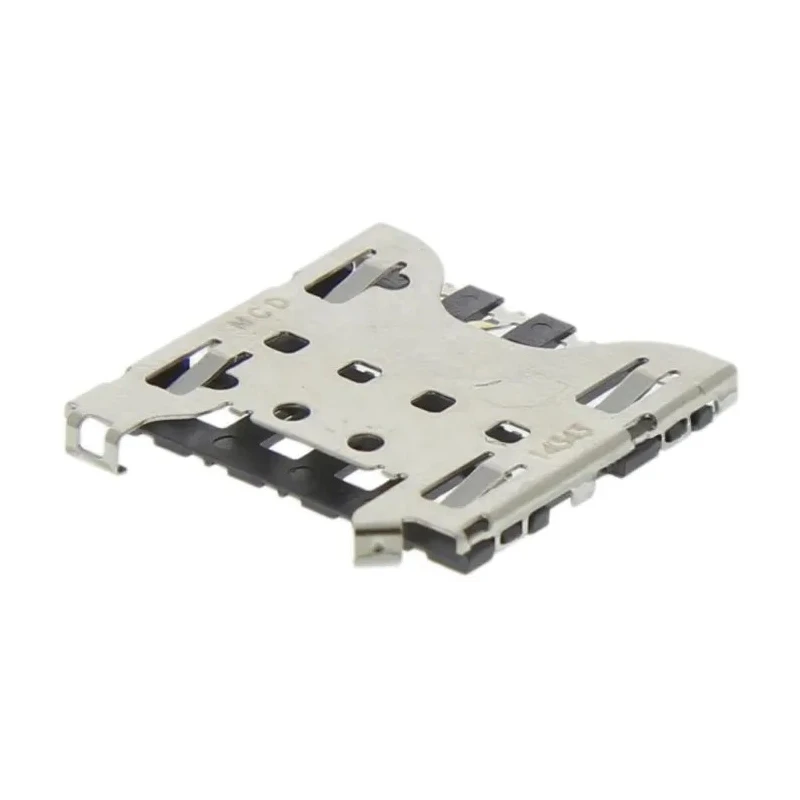

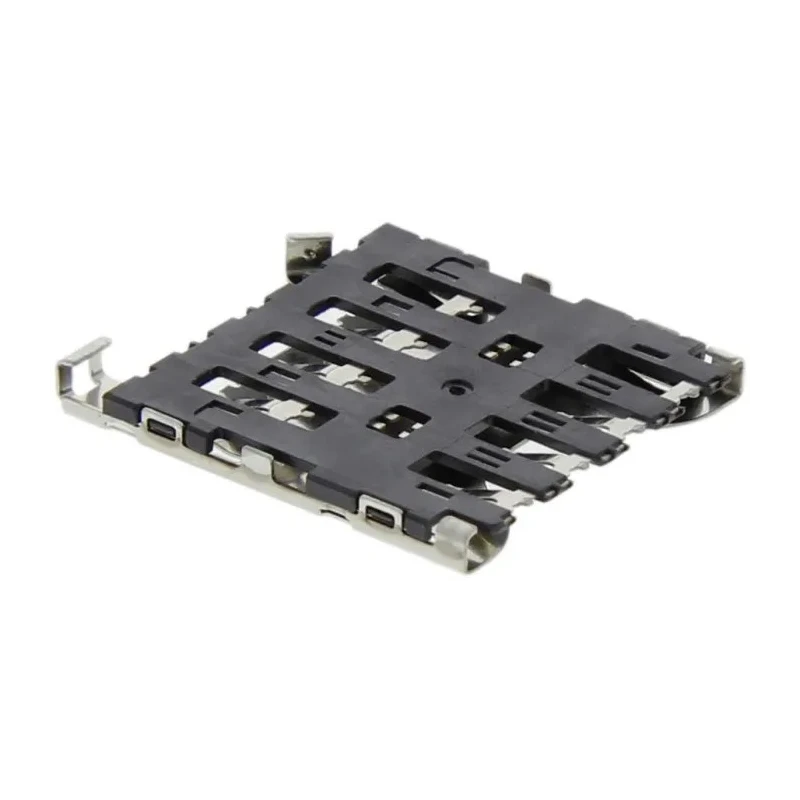

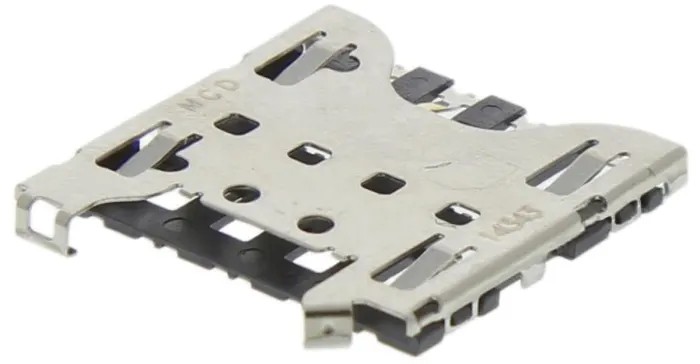

Molex 6 Way Right Angle Push Pull Micro SIM Memory Card Connector, Solder 78723-1001

Molex 78723-1001 is a high-quality 6 Way Right Angle Push Pull Micro SIM Memory Card Connector designed for compact and reliable electronic device applications. Featuring an ultra-low profile height of only 1.35 mm, it offers significant vertical PCB space savings ideal for small portable handheld devices.

This memory card connector employs a push-pull insertion and removal method with a wide finger area to facilitate easy handling of the SIM card. The integral shell spring tab generates a strong normal contact force of 0.30N, ensuring a secure electrical connection during use. Dual angular card polarization features prevent incorrect insertion of the micro SIM card, enhancing operational reliability.

The connector's housing is constructed from high temperature resistant liquid crystal polymer rated to withstand up to 85°C, complemented with a fully shielded stainless steel cover to provide effective EMI protection. Raised housing walls offer anti-shorting protection between exposed SIM card contact pads and the metal shell, while the copper alloy contacts plated with gold over nickel ensure excellent conductivity and durability.

The right angle surface mount design facilitates easy PCB soldering and contributes to compact device configurations. Rounded terminals with a lead-in design support smooth card insertion and prevent contact stubbing for consistent electrical performance. PCB retention features enhance mechanical stability during frequent card insertion and removal cycles.

Applications for the Molex 78723-1001 include ultra-slim smartphones, mobile phones, tablet PCs, PC cards, GSM and UMTS modems, and wireless LAN cards where space saving and reliable SIM connectivity are critical.

Ultra-low profile height of 1.35 mm offers vertical PCB space saving. Push-pull mechanism ensures easy card insertion and withdrawal. Integral shell spring tab provides high normal contact force of 0.30N. Dual card polarization features to prevent misinsertion.

Housing made from high temperature liquid crystal polymer. Gold over nickel plated copper alloy contacts for conductivity and durability. Right angle surface mount design for compact PCB layouts. Fully shielded metal cover protects against EMI interference.

Raised housing walls prevent shorting of SIM card contacts. Suitable for smartphones, tablets, modems, and wireless LAN cards. Browse more connectors and Memory Card Connectors in EnvMart's Electronics & Electricals category for industrial and commercial applications.
