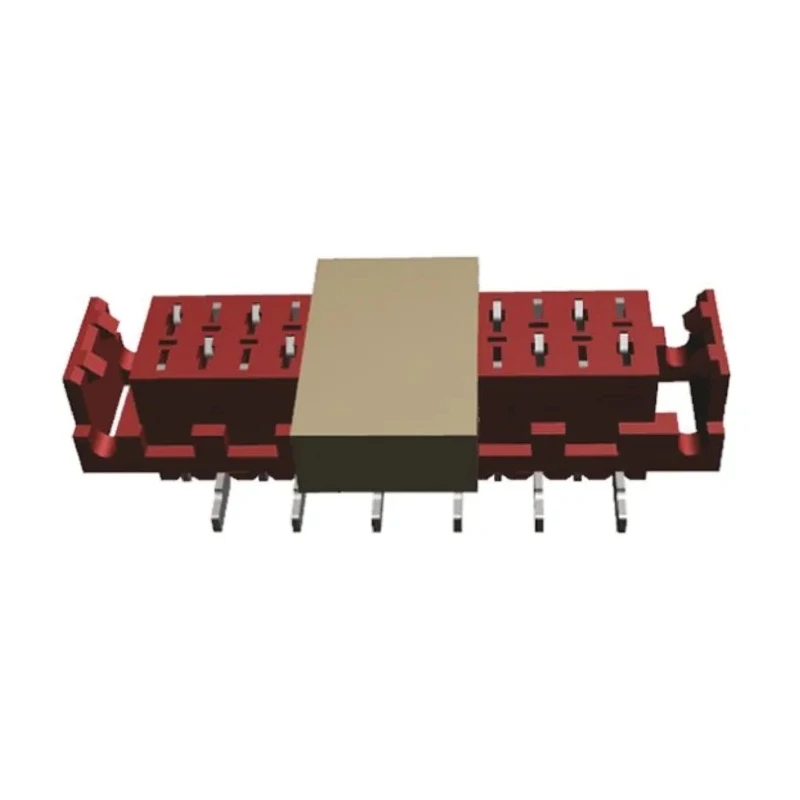

Wurth Elektronik 6903 Series Straight Surface PCB Socket, 20-Contact, 2 Row, 2.54 mm Pitch, 1.5A Current, 100V 690367292076

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik 6903 Series Straight Surface PCB Socket, 20-Contact, 2 Row, 2.54 mm Pitch, 1.5A Current, 100V 690367292076

Name: Wurth Elektronik 6903 Series Straight Surface PCB Socket, 20-Contact, 2 Row, 2.54 mm Pitch, 1.5A Current, 100V 690367292076
Brand: Wurth Elektronik
SKU: 367780
Price: 3.43 USD
Availability: InStock



Category PCB Socket Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Voltage	100V
Brand	Wurth Elektronik
Orientation	Straight
Current	1.5A
Mount Type	Surface
Housing Material	Polybutylene Terephthalate
Contact Material	Bronze
Series	6903
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Female
Connector System	Board-to-Board

Key Features

Features 20 female contacts arranged in 2 rows.
Designed for a 2.54 mm pitch, suitable for standard PCB layouts.
Supports a current rating of 1.5A and voltage up to 100V.
Constructed with a polybutylene terephthalate housing for durability.
Contact material is bronze with gold plating for reliable conductivity.
Surface mount technology (SMT) with straight orientation.
Operating temperature range from -40°C to 105°C for various environments.
Polarized with latch mechanism enhancing secure connections.

Product Description

Wurth Elektronik 690367292076 Straight Surface PCB Socket is a high-quality board-to-board connector designed for reliable electrical connections in electronic assemblies. This socket features 20 female contacts arranged in 2 rows with a standard 2.54 mm pitch, ideal for precise and compact PCB layouts.

The socket is manufactured with a durable polybutylene terephthalate housing, offering excellent heat resistance and mechanical stability. Its bronze contacts are plated with gold, ensuring excellent conductivity and corrosion resistance, suitable for sustained electronic performance.

Rated at 1.5 amps and withstanding voltages up to 100 volts, it is well-suited for power and signal transmission in a variety of electronics, including industrial, laboratory, and commercial equipment. The surface mount technology with straight orientation facilitates easy PCB assembly and secure soldering.

Operating temperatures span from -40°C to 105°C, making it reliable under varying environmental conditions. It also includes a polarized design with a latch system for secure mating and prevention of misalignment during installation.

This PCB socket is part of Wurth Elektronik's 6903 series, known for compact, low-profile connectors used widely across electronics and power connector applications. It supports board-to-board connections requiring dependable mechanical and electrical integrity.

Features 20 female contacts arranged in 2 rows. Designed for a 2.54 mm pitch, suitable for standard PCB layouts. Supports a current rating of 1.5A and voltage up to 100V. Constructed with a polybutylene terephthalate housing for durability.

Contact material is bronze with gold plating for reliable conductivity. Surface mount technology (SMT) with straight orientation. Operating temperature range from -40°C to 105°C for various environments. Polarized with latch mechanism enhancing secure connections.

Ideal for electronic components and power connector applications. Manufactured in China ensuring quality compliance. Explore more PCB Sockets and connectors in the Power Connectors category on EnvMart for comprehensive industrial, electronic, and manufacturing solutions.
