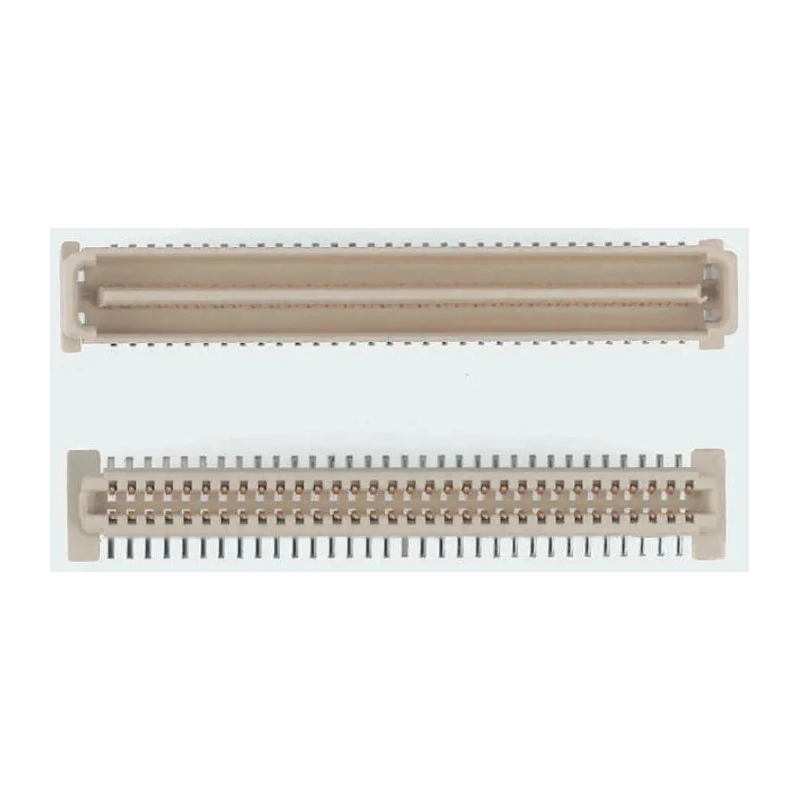

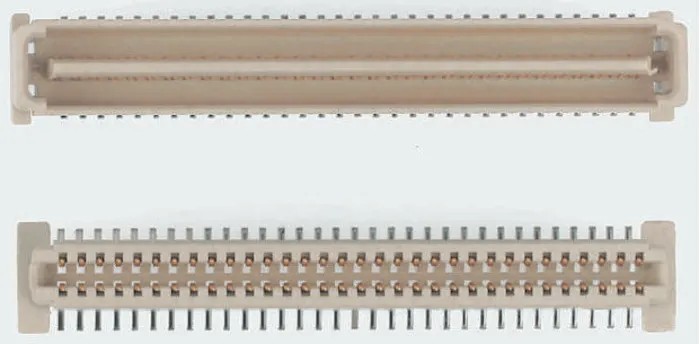

Molex PMC Mezzanine Series Straight Surface PCB Socket 64-Contact 2 Row 1 mm Pitch Solder 71439-0864

Free Delivery in India | Lowest Global Shipping Charges

Molex PMC Mezzanine Series Straight Surface PCB Socket 64-Contact 2 Row 1 mm Pitch Solder 71439-0864

Name: Molex PMC Mezzanine Series Straight Surface PCB Socket 64-Contact 2 Row 1 mm Pitch Solder 71439-0864
Brand: Molex
SKU: 372663
Price: 6.25 USD
Availability: InStock



Category PCB Socket Brand Molex Condition New

Specifications

Country of Origin	United States
Voltage	100V
Brand	Molex
Orientation	Straight
Current	1A
Mount Type	Surface
Contact Material	Phosphor Bronze
Series	PMC Mezzanine
Termination Type	Solder
Maximum Operating Temperature	85°C
Sub Type	PCB Socket
Minimum Operating Temperature	-55°C
Interfaces	LAN, WAN, telecommunication, PC and workstation applications
Number of Rows	2
Pitch	1mm
Standards/Approvals	RoHS
Contact Plating	Gold
Number of Contacts	64
Contact Gender	Male
Connector System	Board-to-Board
Mated heights	8 → 15mm (see combination guide)

Key Features

Provides low insertion force for reliable socket connections.
Manufactured with high-temperature Liquid Crystal Polymer housing for reflow soldering processes.
Gold-plated phosphor bronze contacts ensure durability and optimal conductivity.
Designed for use in LAN, WAN, telecommunication, PC, and workstation applications.
Supports operating temperatures from -55°C to 85°C.
Compliant with RoHS standards for environmental safety.
Offers mated heights ranging from 8 mm to 15 mm to accommodate stacking configurations.
Features a shrouded leaf design to minimize damage to header contacts.

Product Description

Molex 71439-0864 PMC Mezzanine Series Straight Surface PCB Socket is a high-quality electronic component designed for vertical stacking in board-to-board connections. This PCB socket features 64 gold-plated phosphor bronze contacts arranged in 2 rows with a 1 mm pitch. The low insertion force socket design allows reliable and durable connections essential in demanding industrial and telecommunications environments.

The socket housing is made from high-temperature Liquid Crystal Polymer (LCP), making it suitable for reflow solder processes and ensuring thermal stability. Its shrouded leaf design protects header contacts from damage and extends the component's lifespan.

This product supports a current rating of 1A and a voltage rating of 100V, fitting perfectly in LAN, WAN, telecommunication, PC, and workstation applications. It operates reliably within a temperature range of -55°C to 85°C. The socket's mated heights vary between 8 mm and 15 mm, accommodating diverse stacking needs as per IEEE 1386 standards.

The socket complies with RoHS directives, reflecting its adherence to environmental and safety standards. Manufactured in the United States, it ensures premium build quality and reliability in critical industrial and electronic systems.

Low insertion force socket design for easy mating and durability. High-temperature LCP housing enables compatibility with solder reflow processes. Gold-plated phosphor bronze contacts provide excellent conductivity and corrosion resistance.

Suitable for LAN, WAN, telecommunication, PC, and workstation environments. Extended operating temperature range from -55°C to 85°C. Compliant with RoHS environmental standards. Shrouded leaf design minimizes damage to header contacts.

Various mated heights from 8 to 15 mm enable vertical stacking.

This Molex PMC Mezzanine Series PCB Socket is ideal for industrial, telecommunications, electronics manufacturing, and laboratory applications that require robust and reliable electronic connections. Explore more components in our Electronics & Electricals catalog for comprehensive solutions.
