KEMET 0.1 pF 50V DC Multilayer Ceramic Capacitor 0402 Package Surface Mount C0G Dielectric HiQ-CBR Series CBR04C108B5GAC

KEMET CBR04C108B5GAC is a Multilayer Ceramic Capacitor featuring a nominal capacitance of 0.1 pF and a DC voltage rating of 50V. This capacitor is designed for surface mounting on printed circuit boards in compact 0402 package dimensions measuring 1mm in length, 0.5mm in width, and 0.5mm in height, making it ideal for high-density electronic assemblies.

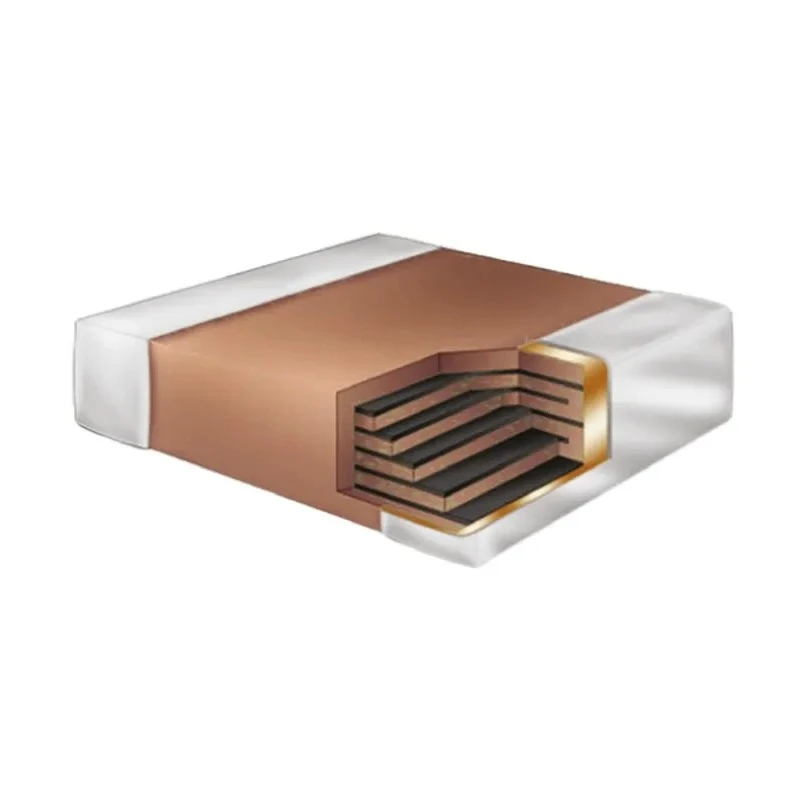

The capacitor construction is stacked with a C0G dielectric material, known for its excellent electrical stability, low dielectric losses, and suitability for high precision and timing circuits. It offers a tight tolerance of ±0.1 pF, ensuring consistent capacitance values critical for sensitive applications.

Certified to meet the automotive industry standard AEC-Q200, the capacitor supports robust operation across a temperature range of -55°C to 125°C, making it suitable for automotive, industrial, and consumer electronics applications. The solder termination enhances solderability and mechanical stability during automated manufacturing.

The product is supplied in Tape & Reel packaging compliant with industry standards EIA-481 and IPC-7351, facilitating automated pick-and-place assembly processes to increase production efficiency. The series designation is HiQ-CBR, which denotes high quality and reliability performance.

Applications include industrial control systems, automotive electronics, telecommunications, medical devices, and instrumentation where precision capacitance and stability are paramount. The capacitor’s small size and high performance make it a versatile choice for compact and complex electronic circuits.

Capacitance tolerance of ±0.1 pF guarantees precision performance. Stable electrical characteristics with C0G dielectric material. Packaged in 0402 size for space-saving designs. Robust construction certified to automotive standards AEC-Q200.

Wide operating temperature range for diverse environmental conditions. Solder terminations for strong assembly processes. Tape & Reel packaging supports automated manufacturing. Meets multiple industry standards for quality assurance.

Compact dimensions: Length 1mm, Width 0.5mm, Height 0.5mm. Discover more advanced capacitor solutions and components by exploring the Electronics & Electricals catalog at EnvMart.
