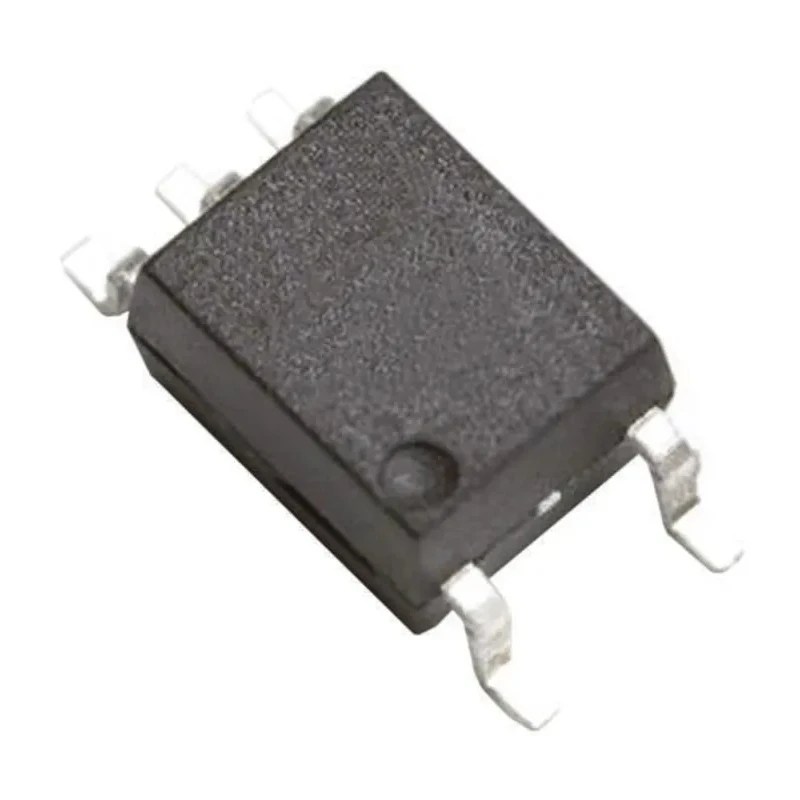

Broadcom DC Input Surface Optocoupler 5-Pin SO Mount Type with 1.85V Forward Voltage ACPL-M72T-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | ACPL-M72T-000E |
| Mount Type | Surface |
| Series | ACPL |
| Maximum Operating Temperature | 125°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 15mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL 1577, IEC/EN/DIN EN 60747-5-5, CSA |
| Maximum Forward Voltage | 1.85V |
| Number of Pins | 5 |
| Input Current Type | DC |
| Typical Rise Time | 10ns |
| Automotive Standard | AEC-Q100 |
Key Features
- Designed for surface mount applications with 5-pin SO package.
- Maximum forward voltage is 1.85 volts, ensuring efficient operation.
- Supports a maximum input current of 15 mA suitable for DC input circuits.
- Typical rise and fall times are 10 ns for fast switching performance.
- Isolation voltage of 4000 Vrms supports reinforced insulation requirements.
- Operating temperature range from -40°C to 125°C suitable for harsh environments.
- Meets UL 1577, IEC/EN/DIN EN 60747-5-5, and CSA standards for safety and performance.
- AEC-Q100 qualified for automotive applications ensuring reliability and durability.
Product Description
Broadcom ACPL-M72T-000E DC Input Surface Mount Optocoupler is engineered for reliable isolating and high-speed digital switching in automotive and industrial electronics. This device features a 5-pin SO package suitable for surface mount PCB assembly, facilitating compact and efficient circuit design.
Offering a maximum forward voltage of 1.85V and a maximum input current rating of 15mA, it supports DC input interfacing for signal isolation. The typical rise and fall times of 10 ns enable switching at mega baud rates, ideal for CANBus digital communication and other fast logic applications.
The optocoupler provides a robust isolation voltage of 4000 Vrms, ensuring reinforced insulation suitable for safety-critical and high-temperature environments. It operates reliably across a wide temperature range from -40°C up to 125°C, conforming to automotive and industrial thermal standards.
Compliance with international standards including UL 1577, IEC/EN/DIN EN 60747-5-5, and CSA guarantees adherence to safety and quality benchmarks. Being AEC-Q100 grade qualified, it is validated for automotive applications demanding high reliability and extended lifetime performance.
Surface mounted 5-pin SO package for easy PCB integration. High-speed logic gate switching with 10 ns rise and fall times. Provides 4000 Vrms isolation voltage for reinforced insulation. Wide operating temperature from -40°C to 125°C for harsh conditions.
Meets essential international and automotive standards. Suitable for power supply, motor control, and digital data communication circuits. Designed specifically for automotive CANBus digital interface applications.
This high-performance optocoupler is suitable for various industrial, automotive, manufacturing, and HVAC electronic systems requiring reliable isolation and fast digital signal transmission. Its compact form factor and robust qualification make it an essential component for modern electronics assembly.
Explore more in the Electronics Components category at EnvMart for related Optocoupler devices and supporting products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of the Broadcom ACPL-M72T-000E optocoupler is 1.85 volts.
It supports a maximum input current of 15 mA, suitable for DC input circuits.
The typical rise time for this model is 10 ns, enabling fast switching performance.
This optocoupler provides an isolation voltage of 4000 Vrms, which supports reinforced insulation requirements.
The operating temperature range is from -40°C to 125°C, making it suitable for harsh environments.
It meets UL 1577, IEC/EN/DIN EN 60747-5-5, and CSA standards for safety and performance.
Yes, it is AEC-Q100 qualified, ensuring reliability and durability for automotive applications.
It comes in a 5-pin SO (Surface Mount) package, suitable for surface mount PCB assembly.
This optocoupler has 1 channel.
It is suitable for power supply, motor control, and digital data communication circuits, particularly in automotive CANBus digital interface applications.
The minimum operating temperature is -40°C.
The typical fall time is also 10 ns, which contributes to its capability for high-speed digital switching.
