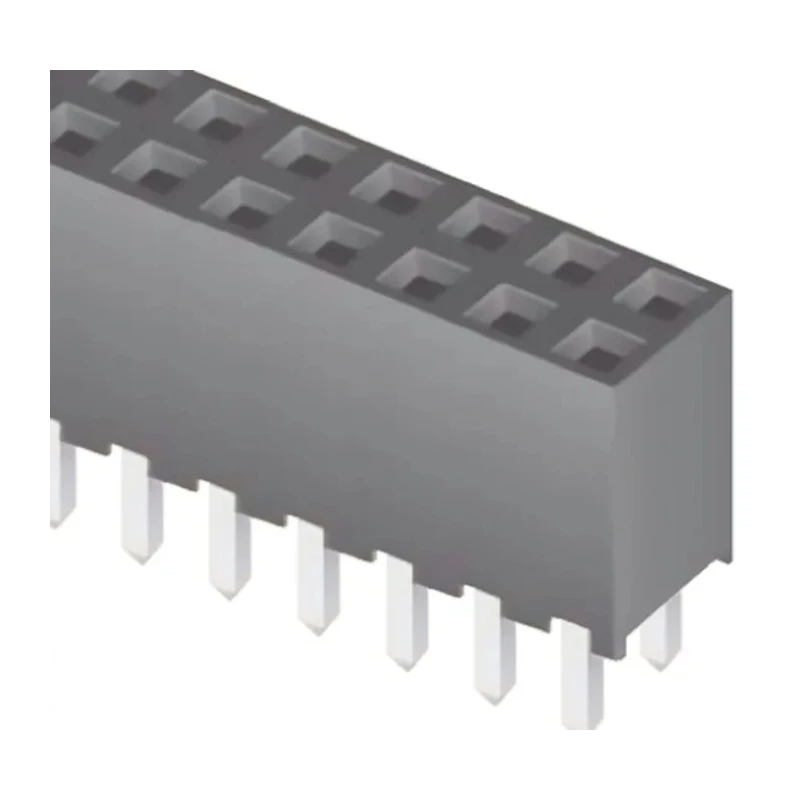

Samtec SQW Series Straight Through Hole PCB Socket, 80-Contact, 2 Row, 2 mm Pitch, 12A, 500V SQW-140-01-L-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 12A |
| Temperature range | -55 → 125 °C |
| Model | SQW-140-01-L-D |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SQW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 80 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Insulator Material | Black LCP |
Key Features
- Features straight through hole mounting for secure installation.
- Supports a current rating of 12 amperes and operating voltage of 500 volts.
- Constructed with a Liquid Crystal Polymer housing for durability.
- Contacts are made of bronze with 0.25 μm gold plating to ensure reliable conductivity.
- Operates reliably in temperatures from -55° to 125° Celsius.
- Designed for use in electronic components, power, and connectors applications.
- Includes 2 rows of 40 contacts each for high-density connections.
Product Description
Samtec SQW-140-01-L-D is a premium series straight through hole PCB socket designed for 80-contact board-to-board connections with 2 mm pitch. Manufactured with precision, this component features a robust Liquid Crystal Polymer black housing, providing excellent insulating properties and stability under demanding conditions.
The contacts use high-quality bronze material plated with 0.25 μm gold on contact areas and matte tin on PCB tails, ensuring superior electrical conductivity and corrosion resistance. The socket supports a maximum current of 12 amperes and a voltage rating of 500 volts, making it suitable for demanding electronic and industrial applications.
This PCB socket is designed with a straight orientation and through-hole mount type, facilitating secure and reliable solder termination on printed circuit boards. Its temperature operating range spans from -55° to 125° Celsius, allowing it to function in harsh environments commonly found in industrial, manufacturing, and power electronics sectors.
With 2 rows and an 80-contact count, the SQW series enables high-density connections, ideal for complex electronic assemblies requiring compact and effective interfacing solutions. Its compatibility with matching Samtec TMM SMT and through-hole headers broadens its application versatility.
Features straight through hole mounting for secure installation. Supports a current rating of 12 amperes and operating voltage of 500 volts. Constructed with a Liquid Crystal Polymer housing for durability. Contacts are made of bronze with 0.25 μm gold plating to ensure reliable conductivity.
Operates reliably in temperatures from -55° to 125° Celsius. Designed for use in electronic components, power, and connectors applications. Includes 2 rows of 40 contacts each for high-density connections.
This Samtec PCB socket model SQW-140-01-L-D is ideal for industrial, electronics manufacturing, and power connector applications requiring reliable, high-performance board-to-board connections.
Explore our Electronics & Electricals category for more quality PCB Sockets and connectors meeting rigorous standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this model is 12 amperes.
This PCB socket supports a voltage rating of 500 volts.
It operates reliably in temperatures from -55° to 125° Celsius.
The contacts are made of bronze and are plated with 0.25 μm gold to ensure reliable conductivity.
This model features a total of 80 contacts, arranged in 2 rows of 40 contacts each.
It uses a through-hole mounting type for secure installation.
The housing is constructed from Liquid Crystal Polymer, providing excellent insulating properties.
The pitch size for this model is 2 mm.
It utilizes a solder termination type for connecting to printed circuit boards.
It is designed for use in electronic components, power, and connectors applications.
The contact gender for this PCB socket is female.
Yes, it is compatible with matching Samtec TMM SMT and through-hole headers.
