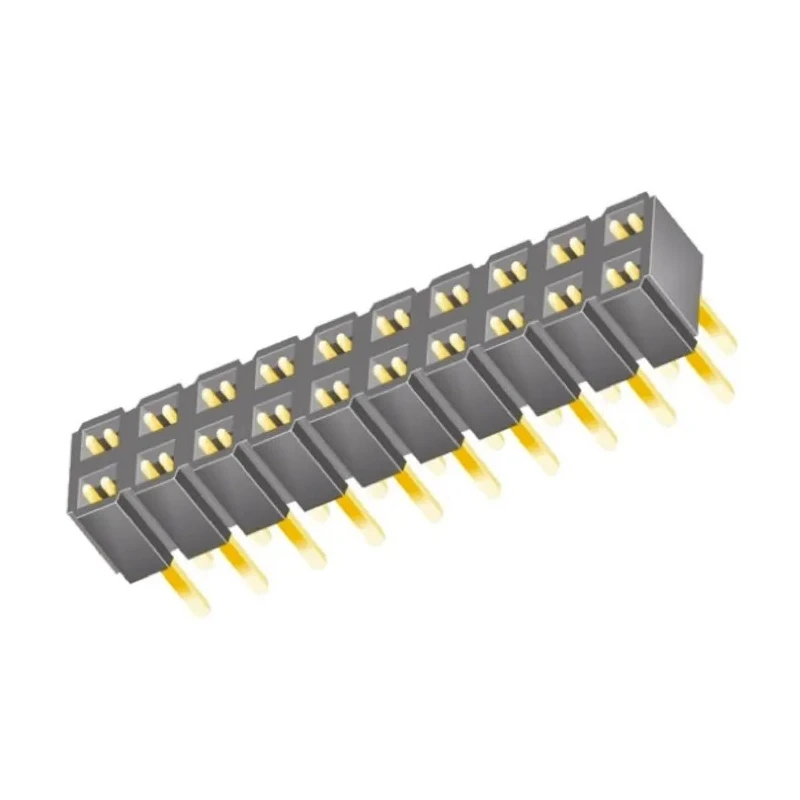

Samtec SLW Series Straight Through Hole PCB Socket 20-Contact 2 Row 2.54 mm Pitch 7.1A 550V SLW-110-01-G-D

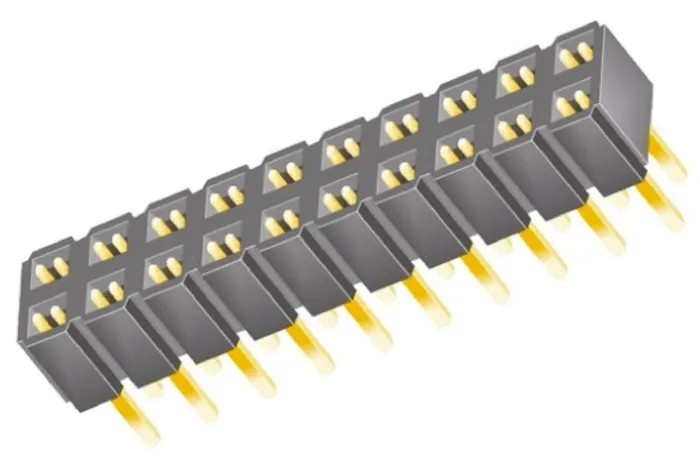

Samtec SLW-110-01-G-D is a high-quality SLW Series Straight Through Hole PCB Socket featuring 20 contacts arranged in 2 rows with a 2.54 mm pitch. This board-to-board socket connector is engineered with a low profile design boasting a stacking height of 10 mm, enabling compact, reliable connections in dense PCB assemblies.

The socket's contacts are fabricated from phosphor bronze and plated with a 0.51μm gold layer for enhanced conductivity and corrosion resistance. The housing is constructed from robust black glass filled polyester, providing mechanical strength and thermal durability.

It supports a current rating of 7.1 A and voltage rating of 550 V, suitable for demanding electronics and industrial applications. Its operating temperature ranges from -55°C to 125°C, ensuring reliable performance under extreme environmental conditions.

The termination is soldered, ensuring a firm and durable mount to printed circuit boards. The connector is female type, designed specifically to mate with compatible male square post headers, including Samtec's TLW, TSM, and TSW series, enabling flexible and secure board-to-board connections.

This PCB socket series is widely used in electronics manufacturing, industrial power equipment, automotive systems, and other commercial applications that require dependable interconnects with precise mechanical and electrical specifications.

Features a low profile design with 10mm stacking height for compact board spacing. Contacts are made of phosphor bronze with 0.51μm gold plating for reliable conductivity. Supports current rating of 7.1 amperes and voltage rating up to 550 volts.

Constructed with black glass filled polyester housing for durability and thermal resistance. Operates in temperature range from -55°C to 125°C for a wide range of industrial environments. Termination by solder ensures secure and stable mounting on PCB.

Connector is female contact gender type suitable for mating with male headers. Compatible with TLW, TSM, and TSW series square post headers for system flexibility. Ideal for electronic, industrial, and power connector applications requiring board-to-board interconnections.
